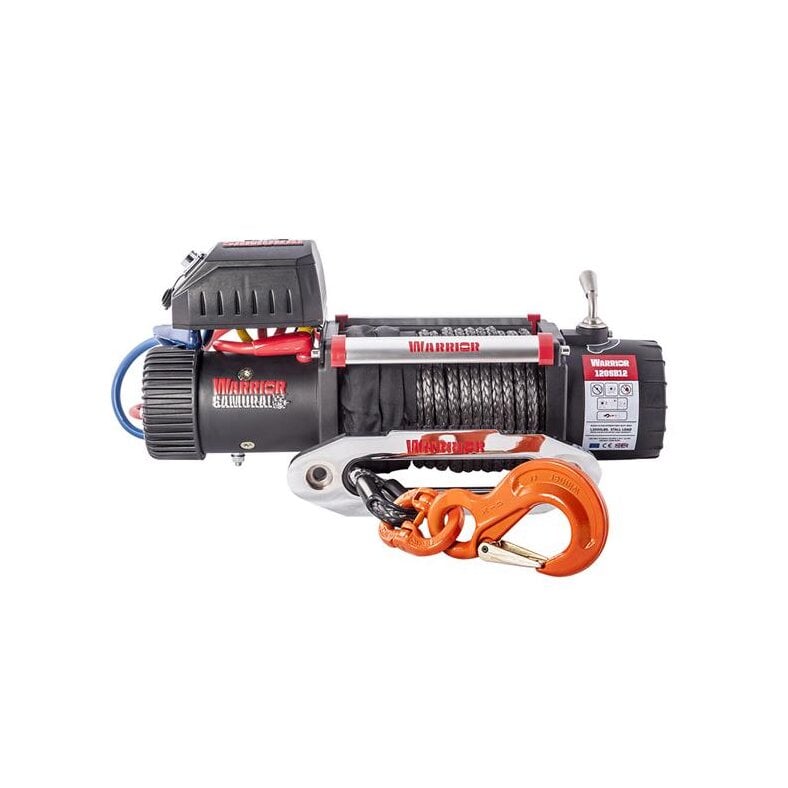

Electric Winch Warrior Samurai S12000 5,4 t 12 V Synthetic Rope

Item number: WI120SB12

Category: Winches 12V

Seilart

starting from 549,00 €

including 19% VAT. , plus shipping (Paket)

There are variations of this item. Please select the variation you wish.


The Samurai S12000 with Armortek Synthetic Rope is a high specification winch winch which is ideal for recovery and 4x4 applications.  Its outstanding features include a high quality series wound motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, efficient full steel planetary gearing. Complete with Heavy Duty integrated wireless remote.

Standard Features:

  • Line Capacity: 12,000lb (5,443kg)
  • Rope: 30 of 11mm Armortek Syntheic Rope with Hook
  • Motor: Reversible 6.5 hp/4.6 kw 12v Series Wound Motor - Powers In and Out
  • Gearbox: Freespooling Clutch - Allows cable to be unwound manually
  • Gear Ratio: 230:1
  • Brake: Automatic Load-Holding Brake in the Drum
  • Warranty: Limited Lifetime Warranty with 3 Year Electrical Cover

    Accessories:
  • Wired Hand Control: 3m Wired Hand Control
  • Wireless Control: Pre-Installed Heavy Duty Wireless Control with Lanyard (Leisure and Non Commercial Use Only)
  • Mounting Plate: Available as optional extra
  • Roller Fairlead: Warrior Branded Aluminium Hawse Fairlead
  • Mounting Bolts: Included for Standard installations

    Also Includes:
  • 1.5m Heavy Duty Battery Cables (May need extending dependant on application)
  • Battery Isolation Switch (Failure to fit will invalidate warranty)
  • Instruction Manual

    Other Information:

  • Dimensions: 580mm L x 160mm D x 219mm H
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Approx. Shipping Weight: 40kg
  • Line Pull - No Load: 6 m/min (80 Amps)
  • Line Pull - Full Load:  1.9 m/min (360 Amps)


Layer of Line pull
wire rope lbs (kg)
1 12000 (5443)
2 9563 (4338)
3 7948 (3606)
4 6800 (3085)
Line pull Line speed Amp draw
lbs (kg) ft/min m/min 12v
0 22.3 6.8 100
4000 (1814) 13.1 4.0 220
8000 (3629) 9.8 3.0 330
12000 (5443) 5.8 1.8 450
