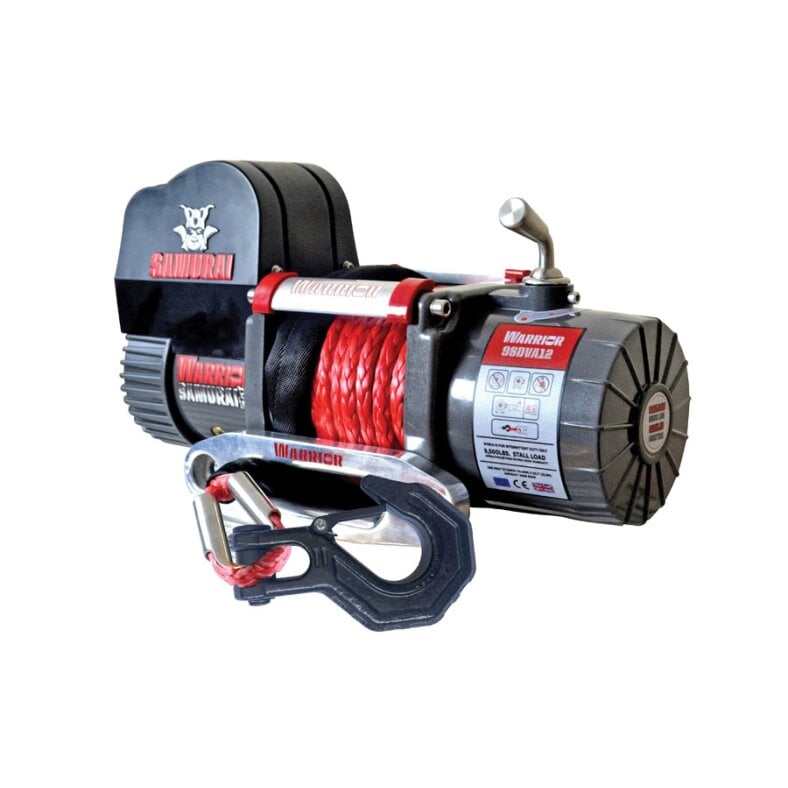

Electric boat winch from warrior with shortened drum 4.300 Kg
Finally available - the latest generation of the ever popular warrior samurai winch.
Familiar quality at an excellent price-performance ratio.
The Gen2 from warrior brings some new features:
better gear ratio provides more rope speed: over 10 meters per minute without load
External brake on the side of the gearbox: less heat on the drum
Comprehensive waterproof sealing to ip68 standard (ideal for boat applications)
The Short Drum version of the samurai S9500 is specifically designed for mobile applications. Reduced overall weight and high pulling power make this winch the perfect helper for boat launching.
With a total weight of only 24 kg and an overall width of only 456 mm, this boat winch is the perfect product for limited space and weight on the trailer drawbar.
The powerful 6.1 hp high-output in-line motor delivers up to 8.6t pulling force (with pulley). The 15-meter armortek plastic rope can be pulled out electrically or by hand via activated freewheel. It floats on the water surface and offers maximum safety when winching. Additional advantage with the plastic rope is that you can work without gloves. Due to the ip68 standard, the winch is completely waterproof and can thus also be optimally used as a boat winch.
Standard equipment:
-
Pulling force: 9,500lb (4,309kg) (without pulley)
-
Rope: 15m length Ø9.5mm armortek plastic rope with detachable winch hook
-
Motor: sealed (ip68) and corrosion resistant in-line motor
-
Power: 6.1 ps/4.6 kw 12 V
allows electric retraction and release of the rope
-
Gearbox: 3-stage planetary gear
with overrunning clutch - allows manual pulling out of the rope
-
Gear ratio: 196:1
-
brake: external Lateral in the gearbox Automatic load holding brake in the drum
Accessories:
-
Cable remote control: included (3m cable length)
-
Radio remote control: included (for non-commercial use only)
-
Rope window: aluminum rope window with engraved warrior logo
! Rope window is not directly attached to winch. Please order optional mounting plate !
-
mounting screws: included (for standard mounting)
-
battery cable: Length 1.5 m (must be extended depending on application), cable cross-section: 32 mm²
- operating instructions
-
Mounting plate: optional
Further information:
-
dimensions (l x w x h): 456mm x 160mm x 248mm
-
Hole pattern/drilling pattern: 151mm x 114.3mm
-
Approx. weight: 24kg
Pulling speeds and power consumption:
| Rope layer |
|
Tractive force |
|
|
|
| |
|
lbs / kg |
|
|
|
| |
|
|
|
|
|
1 |
|
9500 / 4309 |
|
|
|
2 |
|
7600 / 3447 |
|
|
|
3
4 |
|
6200 / 2812
5400 / 2400 |
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| Traction |
|
Traction speed |
|
Power consumption ( a ) |
| lbs / kg |
|
ft / min |
m / min |
|
12 V |
| |
|
|
|
|
|
| 0 |
|
33,4 |
10,2 |
|
50 |
| 3000 / 1360 |
|
15,4 |
4,7 |
|
150 |
| 6000 / 2721 |
|
10,1 |
3,1 |
|
260 |
| 9500 / 4309 |
|
7,2 |
2,2 |
|
320 |
IMPORTANT:
We expressly point out that this winch is designed exclusively for off-road and private use.
It is a pure pulling winch for pulling rolling loads horizontal planes.
use outside the described areas will void any warranty!
You can find our commercial pulling winches here: Commercial winches. |
