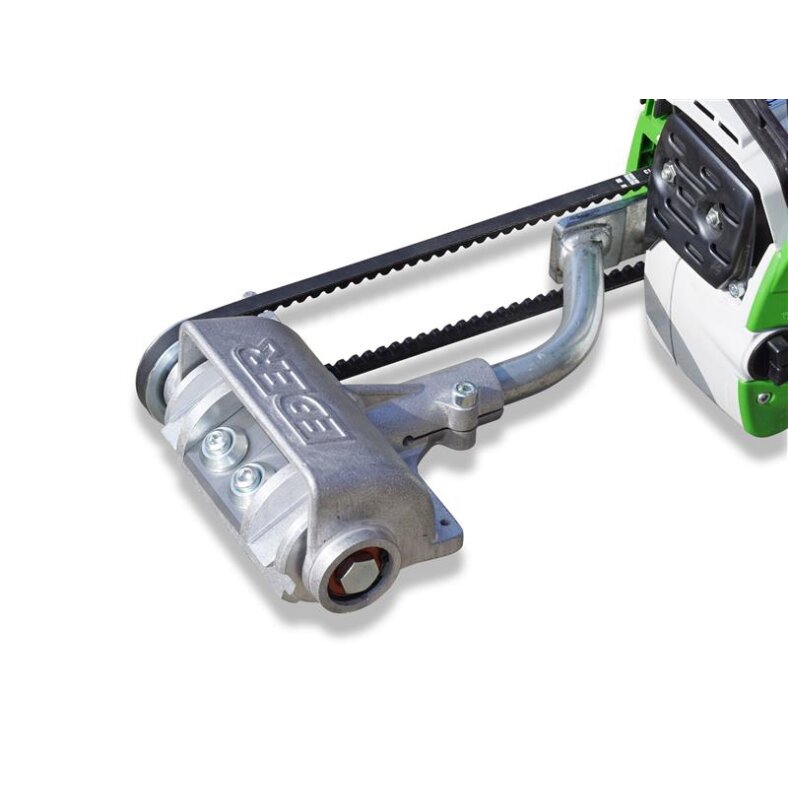

eder contour plane
With the eder contour plane ekh19 you can plane straight and wavy wood surfaces and use it for the construction of log houses,
Playgrounds, bonanza fences and similar projects.
The adjustable blade protrusion effectively prevents splintering of the wood.
Since only one cut is made on the working width during one revolution of the roller, the reaction forces are low.
Knots and thin knots are easily and cleanly planed off. The eder contour planer ekh19 is very suitable for peeling or planing the outer edges of boards or for debarking ruby wood.
Technical specifications:
- Weight (without motor): 2.75 kg
- Weight with eder motor: 8,55 kg
- Driving power: min. 1,2 kW
- Working width: 120 mm
- Knife width: 30 mm
- Number of knives: 4
- Max. Speed: 13.000 /1 min
- Drive ratio: 1:1
IMPORTANT: This is the contour planer. The motor is not included in the delivery.
The set consisting of contour plane and motor can be ordered HERE to order.
Mounting instructions:
Minor adjustments must be made for some chainsaws. Basically no chainsaws with quick chain tension, Autotune or M-Tronic can be used!
We recommend the use in set with the eder motor.
