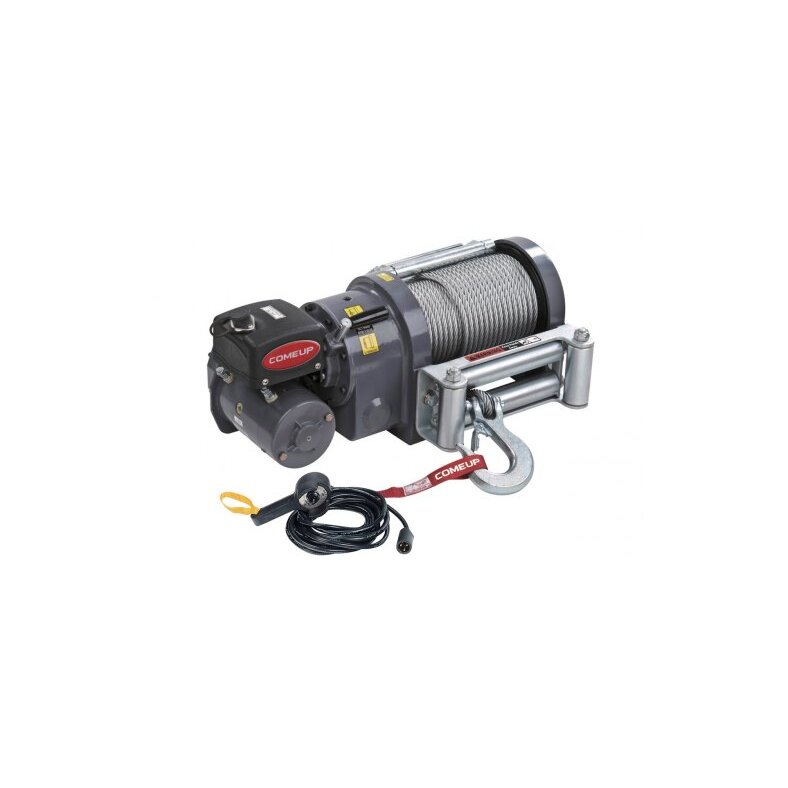

Specifications/Part Numbers
- Part number: pn 782478 (12v)
- Rated Pull: 5,443 kg / 12,000 lb (single pull without pulley)
- Motor: 3,430 watt / 4.6 hp 12v series connection
- Gear ratio: 2-stage spur gear plus worm gear 424:1
- Clutch (overrunning): Lever mechanism
- Brake: Irreversible worm gear brake plus mechanical ratchet wheel brake
- Drum size: 89.0 x 229 (3.5" x 9.0")
- Operation: waterproof cable operation (5m cable length)
- Rope type: Galvanized aircraft steel cable type a7 x 19
- Rope size: 9.5 mm x 30.5 m (3/8" x 100')
- Hole circle: 273 x 110 mm (10.7" x 4.3")
257 x 172 mm (10.1" x 6.8")
- Winch weight: 41.0 kg / 90.4 lb
- Gross weight: 51 kg / 112.5 lb
- Packaging dimensions (l x d x H): 610 x 427 x 350 mm (24.0" x 16.8" x 13.8")
Accessories:
- Heavy-duty 210 mm roller rope window
- Cable control (5m cable length)
- removable control box
- Steel cable with fork hook
- 1.8 m battery cable
- Rope contact window
Pulling force, speed and power consumption (1st rope layer)
| Rope layer |
|
Tractive force |
|
|
|
| |
|
kg / lbs |
|
|
|
|
|
|
|
|
|
1 |
|
5443/12000 |
|
|
|
2 |
|
4563/10060 |
|
|
|
3
4 |
|
3928/8659
3448/7601 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Traction |
|
Traction speed |
|
Power consumption ( a ) |
| kg / lbs |
|
ft / min |
m / min |
|
12 V |
|
0 |
|
20.3 |
6.2 |
|
70 |
| 2722/6000 |
|
8.9 |
2.7 |
|
180 |
| 3630/8000 |
|
5.6 |
1.7 |
|
270 |
| 4535/10000 |
|
4.6 |
1.4 |
|
310 |
| 5443/12000 |
|
3.3 |
1.0 |
|
350 |
WarningWinches are not designed for lifting or moving people.
the specified pulling force is based on the first layer of rope on the drum.
When uncoiling the rope, 5 wraps should always remain on the drum.
IMPORTANT:
We expressly point out that this winch has been developed exclusively for off-road and private use.
It is a pure pulling winch for pulling rolling loads horizontal planes.
Any use outside the described areas will void any warranty!
You can find our commercial pulling winches here: Commercial winches. |
