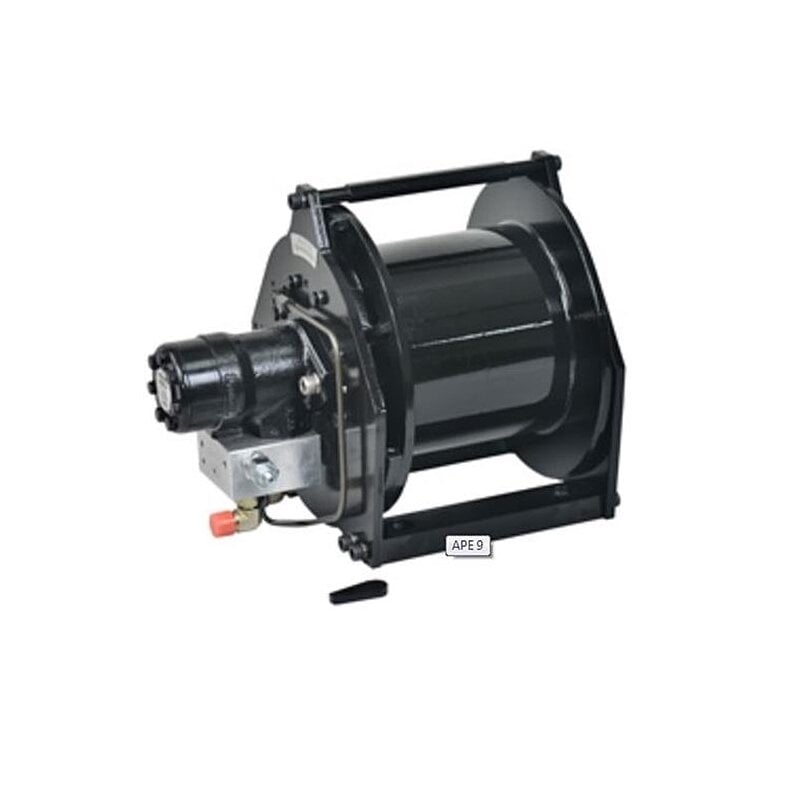

ComeUp hydraulic hoist winch ape 900kg

SKU: CU-APE9
GTIN: 4260482524760
Category: Comeup Hoists

Internally lubricated for reliable performance and exceptionally long life.
Compact, hardened and highly efficient gear trains reduce power loss and are placed inside the drum.
Patented multi-disc brake (mdb) and two-way counterbalance valve together to hold full load.
Normal load capacity is indicated on the top layer of the wire rope. It always lifts its rated load regardless of which layer of wire rope it is.
The drum is sized to achieve a minimum D/d ratio of 18:1 with a minimum safety factor of 5:1 at the rated load.
The winch meets the requirements of fem9.511 for classification and grading and fem 1001 standard for hoist calculations.
Compliance with international standards such asme b30.7 and CE Machinery Directive 2006/42/EC

2.490,99 €

incl. 19% VAT , plus

Currently out of stock

Specifications:

Part number: pn 681900
Rated line lift: 1,984 lb (900 kg) single line at top layer of rope
Belt speed: 37 mpm / 121 fpm single line at top layer of rope
Motor: 155.7 cm3/rev (9.5 in3/rev)
Working pressure: 2,031 psi (140 bar) with maximum back pressure at return of 5 bar
Max-min pump flow: 35 - 15 l/min ( 9.2 - 4.0 g/min)
Gear ratio: 1-stage planetary 5:1
Brake: multi-disc brake (mdb) patented and counterbalance valve common
Winch construction: steel housing with steel drum
Winch rotation: counterclockwise drum rotation.
Drum size (dxDxL): 205 x 305 x 191 mm (8.1" x 12.0" x 7.5")
Recommended wire rope: 8 mm x 68 m with grade 1,960 N/mm2 with a minimum breaking strength of 44.7 kN for class en 14492-2.
5/16" x 223 ft with EIPS grade with a minimum breaking strength of 10,003 lbf for asme 30.7.
Bolt circle: 200 x 170 mm (7.9" x 6.7")
Hoist weight: 63 kg / 140 lb / 140 lb
Gross weight: 80 kg / 176 lb
Package dimensions: 550 x 440 x 570 mm (21.7" x 17.3" x 22.4")

Optional accessories (at extra cost):

Rope tensioning device
Steel cable with hook
Suspension plate
Up and down limiting protection device

Lifting speed and power consumption

Rope layer	Lifting force (kg)	Lifting speed (m/min)	Total rope on drum (m)
1	1100	30.1	15
2	1023	32.3	31.8
3	956	34.6	49.4
4	900	37	68

Nominal load:
Load and speed vary depending on how much wire rope is on the drum. The first layer of rope on the drum provides the slowest speed. The total wire rope on the drum may vary from the values given elsewhere and the maximum load. A full drum provides the maximum speed and minimum load. For this reason, all hydraulic hoist winches are rated at their top layer of wire rope on the drum.
Leave two layers free below the top of the drum flanges to comply with European lifting regulations.

NOTE:

1. All specifications are based on the 1st layer of wire rope. Each layer unwound increases the lifting capacity by 10%
2. Use a pulley for double hoist to increase lifting capacity by approx. 85
3. Lifting capacities are based on one lifting load. 15% is allowed for friction (specific applications may vary)

Warning
Winches are not designed for lifting or moving people.
Stated lifting capacities are based on the first layer of rope on the drum.
When uncoiling the rope, 5 wraps should always remain on the drum.

Lifting force (without deflection):	251 - 500 kg
Max. Lifting height:	21 - 30 m
Lifting speed:	1 - 15 m / min
Voltage:	220 V - 240 V
Application:	Private
Radio remote control including:	No
Shipping weight:	80,00 kg
Item weight:	63,00 kg
Dimensions ( Length × Width × Height ):	41,50 × 30,50 × 33,50 cm
