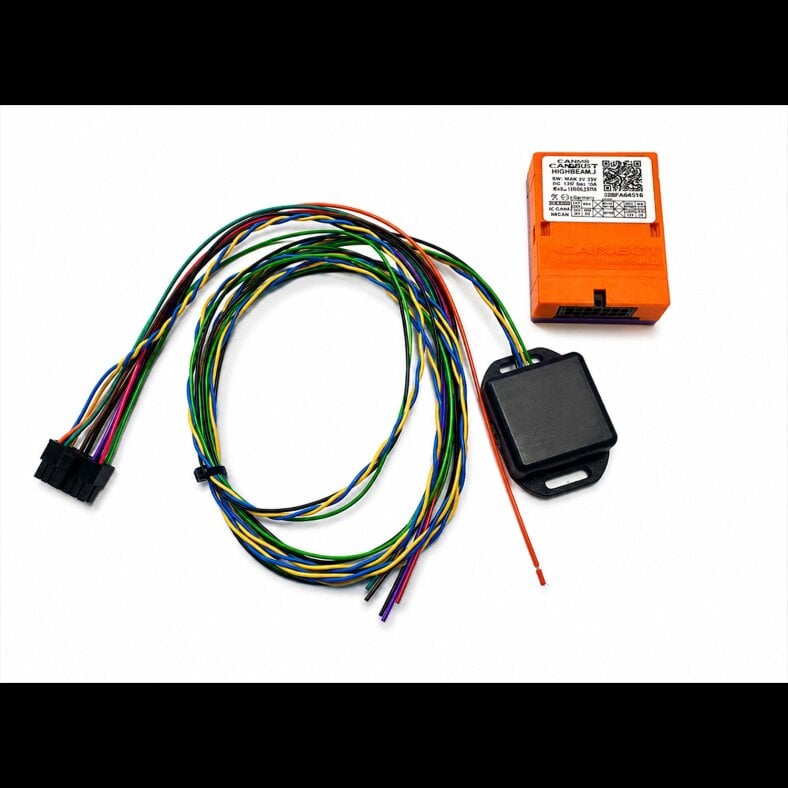

CAN-Bus control unit for high beam and position light including contactless reader
The CANM8 CANNECT HIGHBEAM-3 is a professional CAN-Bus interface for installing additional LED driving lights, LED light bars and auxiliary headlights with position light. In many modern vehicles, the high beam signal is no longer available as a simple conventional 12 V signal. Instead, important lighting and vehicle signals are transmitted through the CAN-Bus system.
This is exactly where the CANNECT HIGHBEAM-3 comes in. In combination with the contactless CAN-Bus reader, it detects the vehicle’s high beam signal, ignition signal and position light signal and provides separate 12 V outputs. The vehicle wiring does not need to be cut, tapped or damaged, making the installation clean, reversible and vehicle-friendly.
Clean integration of additional driving lights
This CAN-Bus control unit is especially suitable for vehicles where additional driving lights or light bars need to be connected to the vehicle’s high beam function. When the high beam is activated, the module provides a 12 V output signal. This signal can be used via a relay to control additional LED driving lights or light bars.
The module also detects the position light or side marker light signal, making it particularly useful for modern auxiliary lights with a separate position light, signature light or DRL-style design.
Key benefits
-
CAN-Bus interface for high beam, ignition and position light
-
Contactless reader for clean installation without damaging vehicle wiring
- Ideal for LED driving lights, auxiliary headlights and light bars
- Designed for modern vehicles with CAN-Bus wiring
-
12 V high beam output when high beam is active
-
12 V ignition output when ignition is switched on
-
12 V position light output when position / side marker lights are active
-
Fully reversible installation without permanent cable damage
-
Professional solution for workshops, off-road builds, camper vans, transporters and 4x4 vehicles
Technical data
| Product |
CAN-Bus control unit for high beam and position light including contactless reader |
| Model |
CANM8 CANNECT HIGHBEAM-3 |
| Item number |
LP-CNCTHB-03 |
| GTIN |
4260357367751 |
| Function |
CAN-Bus signal interface for high beam, ignition and position light |
| High beam output |
12 V, max. 1 A when high beam is active |
| Ignition output |
12 V, max. 1 A when ignition is switched on |
| Position light output |
12 V, max. 1 A when position / side marker lights are active |
| Item weight |
approx. 0.10 kg |
| Shipping weight |
approx. 0.20 kg |
Application
The CANM8 CANNECT HIGHBEAM-3 is an ideal solution for installing additional driving lights with position light. It integrates auxiliary lighting into the vehicle’s existing signal logic and enables professional control through the vehicle’s original lighting signals.
Typical applications include:
- Retrofitting LED driving lights
- Installing LED light bars with high beam function
- Connecting auxiliary headlights with position light
- Off-road vehicles, pick-ups, vans, camper vans and 4x4 vehicles
- Vehicles where no conventional high beam signal is directly available
Product link & installation guide
Product link:
https://www.ltprtz.com/Can-Bus-Steuergeraet-Fernlicht-und-Positionslicht-inkl-kontaktlosem-Ausleser
Installation guide / vehicle database:
http://www.canm8.com/qrcode.html
Compatible vehicles according to the vehicle list
If your vehicle model or year is not listed, please contact us directly. We may still be able to offer a suitable solution.
Audi: A3 8P from 2003, A3 8V from 2012, A4 8K from 2009, A5 8T from 2007, A6 4F from 2004, A6 4G from 2011, A8 4H from 2010, Q5 8R from 2008, Q7 4L from 2006, R8 8N from 2007, S5 from 2007, TT 8J from 2007.
BMW: 1 Series E87 from 2004, 1 Series F20 from 2011, 2 Series F22/F45/F46 from 2014, 3 Series E-platform from 2005, 3 Series F30 from 2012, 4 Series F32/F33 from 2013, 5 Series E60/E61 from 2003, 5 Series F10/F11 from 2010, 6 Series E63/E64 from 2004, 6 Series F12/F13 from 2011, 7 Series E65 from 2004, 7 Series F01/F02 from 2008, i3 from 2014, X1 E84 from 2009, X1 F48 from 2015, X3 F25 from 2011, X5 E70 from 2007, X5 F15 from 2013, X6 E71 from 2008, Z4 E89 from 2009.
Chrysler / Jeep: Chrysler Grand Cherokee from 2011, Jeep Cherokee Latitude from 2014.
Citroën: Berlingo from 2008, C4 from 2005, C4 from 2010, C5 from 2008, C-Crosser from 2007, DS3 from 2010, DS4 from 2011, DS5 from 2012.
Fiat: Ducato from 2006, Ducato from 2010, Ducato from 2014.
Ford: C-Max from 2011, Fiesta Facelift from 2013, Focus from 2005, Focus from 2011, Galaxy from 2015, Kuga from 2013, Mondeo from 2010, Mondeo from 2015, Ranger from 2012, Ranger from 2016, S-Max from 2009, Transit Euro 5 from 2012, Transit Connect from 2014, Transit Custom from 2013.
Honda / Hyundai / KIA: Honda CR-V from 2012, Hyundai i30 from 2012, Hyundai Kona from 2017, KIA Stonic from 2017.
Land Rover: Discovery 4 from 2010, Evoque from 2012, Freelander 2 from 2010, Freelander 2 from 2013, Range Rover from 2013, Range Rover Sport from 2010, Range Rover Sport from 2014.
MAN: TGE from 2017.
Mazda: Mazda 3 from 2014, CX-3 from 2016, CX-5 from 2012.
Mercedes-Benz: A-Class 169 from 2005, A-Class 176 from 2012, B-Class 245 from 2005, B-Class 246 from 2011, C-Class 204 from 2007, C-Class 205 from 2014, CLS 218 from 2011, E-Class 212 from 2011, G-Class from 2010, GLE Coupé from 2015, M-Class 164 from 2005, Sprinter 906 from 2006, Sprinter 906 from 2013, Vito 4 from 2010, Vito 5 from 2014.
Mitsubishi: ASX from 2010, L200 from 2006, L200 from 2016, Lancer from 2008, Outlander from 2007, Outlander from 2012, Pajero from 2007, Shogun from 2007.
Nissan: Cube from 2003, Micra from 2003, Note from 2006, Pulsar C13 from 2013, Qashqai from 2013, X-Trail from 2010, X-Trail from 2014.
Peugeot: 108 from 2014, 2008 from 2013, 207 from 2006, 208 from 2012, 3008 from 2009, 308 from 2007, 308 from 2015, 4007 from 2007, 4008 from 2012, 408 from 2010, 5008 from 2009, 508 from 2011, Bipper from 2007, Boxer Euro 4 from 2006, Expert from 2007, Partner from 2008, RCZ from 2010.
Renault: Clio from 2005, Clio from 2009, Clio from 2012, Grand Scenic from 2009, Laguna 3 from 2009, Megane from 2004, Megane from 2009, Modus from 2004, Scenic from 2003, Scenic from 2009, Scenic 4 from 2016, Trafic from 2014, Zoe from 2013.
Seat / Skoda: Seat Altea from 2004, Exeo 3R5/3R9 from 2009, Ibiza 6J from 2008, Leon 1P from 2005, Leon 5F from 2012, Toledo 5P from 2004, Skoda Octavia 5E from 2013.
Subaru / Suzuki / Toyota: Subaru Forester from 2013, Impreza from 2011, XV from 2012, Suzuki Swift from 2010, SX4 S-Cross from 2013, Vitara from 2015, Toyota Avensis from 2009, GT86 from 2012.
Opel: Astra J from 2009, Astra K from 2016, Captiva from 2011, Corsa from 2001, Corsa from 2006, Insignia from 2008, Insignia B from 2017, Movano from 2010, Vectra from 2004, Zafira B from 2005, Zafira C from 2011.
Volkswagen: Crafter from 2006, Crafter from 2017, Golf V 1K from 2004, Golf VII 5G from 2012, Passat 3C from 2005, Passat from 2010, Passat 3G from 2015, Polo from 2002, Polo 6R/6C from 2009, Routan from 2009, Touareg from 2007, Touareg from 2010, Transporter from 2003, Transporter T6 from 2015.
Volvo: S60 from 2012, V40 from 2012, V50 from 2010, V60 from 2013, V70 from 2011, XC60 from 2013, XC70 from 2012.
