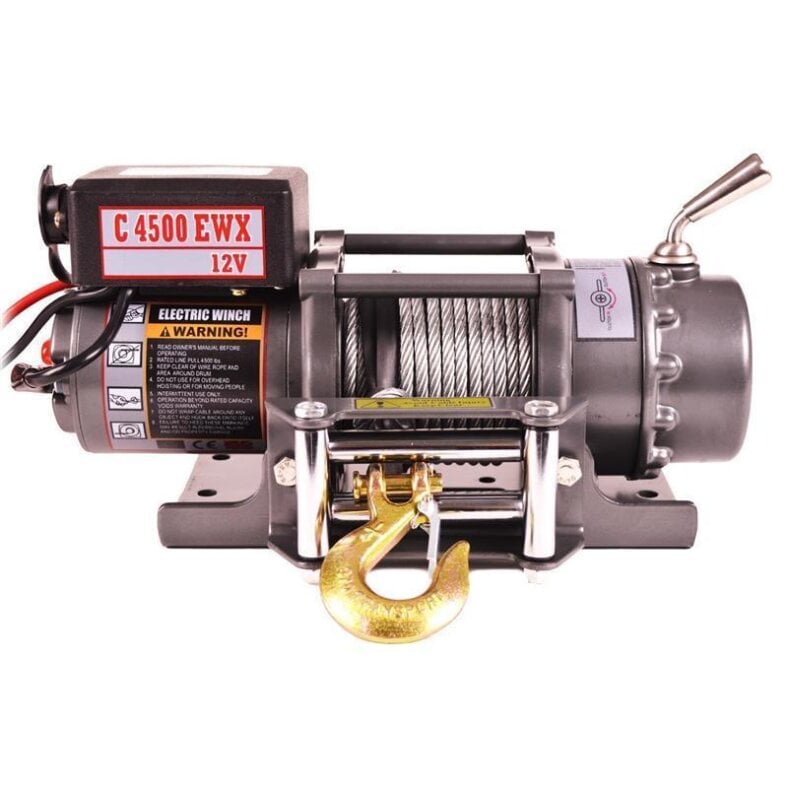

The new addition to the Warrior Range. The high quality 3-stage planetary gearbox makes this one of the quietest and smoothest running winches in the entire winch market. The smooth running performance and full load holding brake make the C4500EWX the perfect solution for heavy-duty applications.
Standard features:
-
Pulling force: 4,500lb (2,043kg)
-
Rope: 14.5m length Ø6.4mm steel cable with g80 3/8 clevis hooks
-
Motor: sealed (IP68) and corrosion resistant in-line motor
-
Power: 1.95 hp/1.37 kw 24v
allows electric pulling in and out of the rope
-
Gearbox3-stage metal drive
with overrunning clutch - enables manual pulling out of the rope
-
Gear ratio: 172:1
-
brake: automatic mechanical brake
-
Warranty3 years on electrics
Accessories:
-
Cable remote control: included (3m cable length)
-
Rope window: 4-way roller rope window
-
mounting screws: included (for standard mounting)
-
battery cable: Length 1.5 m (need to be extended depending on application)
- operating instructions
-
Mounting plate: included
Other information:
-
dimensions (l x w x h): 360mm x 126mm x 165mm
-
Hole pattern/drilling pattern: 129mm x 96mm
-
Approx. weight: 13kg
Pulling speeds and power consumption:
| Rope layer |
|
Pulling force |
|
|
|
| |
|
lbs / kg |
|
|
|
| |
|
|
|
|
|
1 |
|
4500 / 2043 |
|
|
|
2 |
|
3642 / 1652 |
|
|
|
3 |
|
2638 / 1196 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tractive force |
|
Traction speed |
|
Power consumption ( a ) |
| lbs / kg |
|
ft / min |
m / min |
|
24 V |
| |
|
|
|
|
|
| 0 |
|
11,6 |
3,6 |
|
15 |
| 1500 / 680 |
|
9,2 |
2,8 |
|
40 |
| 2500 / 1134 |
|
7,8 |
2,4 |
|
65 |
3500 / 1587
4500 / 2041 |
|
6,6
4,1 |
2,0
1,5 |
|
80
130 |
IMPORTANT:
We expressly point out that this winch is designed exclusively for off-road and private use.
It is a pure pulling winch for pulling rolling loads horizontal planes.
use outside the described areas will void any warranty!
You can find our commercial pulling winches here: Commercial winches. |
