Built for nights when width and range matter equally.

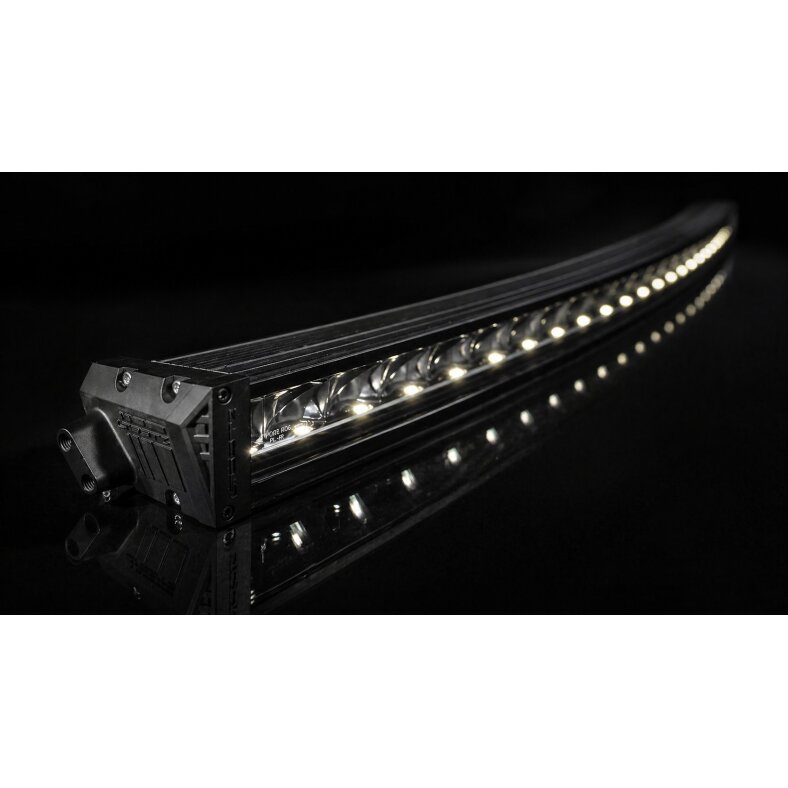

The LTPRTZ Prime-X 44-inch Curved LED Light Bar is designed
for drivers who demand maximum visibility without compromising on road
approval or vehicle appearance.
Its curved design, powerful combo beam and approvals in
accordance with ECE R112 and ECE R10 combine wide
illumination, long-range visibility and a distinctive front-end presence.
Wide illumination, approved lighting performance and a strong
front-end appearance for road, off-road and professional use.
450-metre range at 1 lux
The light bar is designed for night driving, off-road terrain and demanding
work applications where early detection of obstacles and wide illumination
can make a decisive difference.
When the road ends, the Prime-X 44 is only getting started.
This 44-inch curved LED light bar is designed to provide
both long-range visibility and broad area illumination. Its
combo beam combines a focused long-distance beam with a
wide spread of light.
This makes the light bar suitable for fast night driving, difficult terrain,
overland travel and professional applications. With
10,320 raw lumens and a
range of 450 metres at 1 lux, it delivers considerably more
than conventional auxiliary lighting.
Curved design with a functional purpose
The curved shape supports wide and even light distribution across the
vehicle's field of vision. Combined with 24 OSRAM LEDs and
a neutral white colour temperature of 5000 Kelvin, it
creates a clear and highly usable beam pattern.
At the same time, the curved design gives the vehicle a distinctive and
unmistakable front-end appearance.
Key features
10,320 raw lumens
High light output for maximum visibility at night, off-road and during
demanding work applications.
450-metre range at 1 lux
Earlier detection of obstacles and more reaction time in difficult road and
terrain conditions.
Combo beam
Combines spot and flood beam patterns for long-range visibility and wide
illumination.
ECE R112 and ECE R10
Approved as an auxiliary driving light and tested for electromagnetic
compatibility.
IP69K protection rating
Protected against dust, rain, demanding off-road conditions and
high-pressure cleaning.
24 OSRAM LEDs
High-quality LED technology for powerful, reliable and even illumination.
Built for demanding conditions
Mud, rain, vibration and intensive cleaning cycles are part of everyday use
for off-road and commercial vehicles. The Prime-X 44-inch Curved LED Light
Bar has been developed specifically for these demanding conditions.
Its robust aluminium housing, durable
polycarbonate lens, polycarbonate reflector and
uncoated stainless-steel mounting brackets provide a strong
and long-lasting construction.
With its IP69K protection rating and approvals in
accordance with ECE R112 and ECE R10, the light bar combines
high durability with approved lighting performance.
Technical specifications
| Type |
LED light bar, auxiliary driving light with combo beam |
| Approval |
ECE R112 and ECE R10 |
| Raw lumens |
10,320 lm |
| Range |
450 m at 1 lux |
| LEDs |
24 OSRAM LEDs |
| Colour temperature |
5000 K |
| Voltage |
12 V |
| Theoretical power consumption |
73 W × 2 |
| Effective current draw |
5.2 A |
| Protection rating |
IP69K |
| Housing |
Aluminium |
| Lens and reflector |
Polycarbonate |
| Mounting brackets |
Uncoated stainless steel |
| Connection |
Open red and black cable ends |
| Dimensions |
1106 × 114 × 58 mm |
| Weight |
3.6 kg |
Installation note: We recommend having the electrical
connection and installation carried out by a qualified specialist workshop.
10,320 lumens. 450 metres. No compromises.
LTPRTZ Prime-X 44-inch Curved LED Light Bar · ECE R112 and ECE R10
