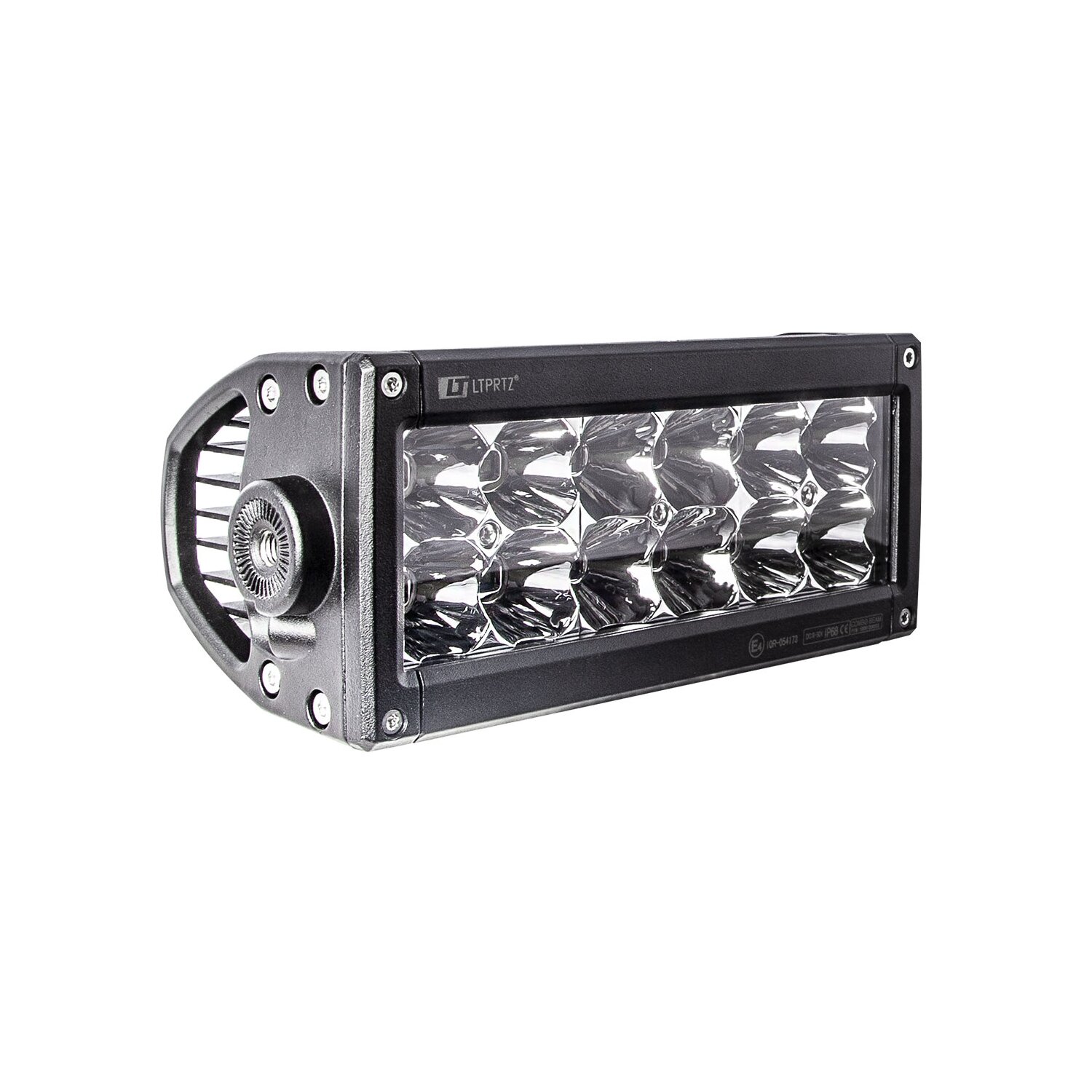

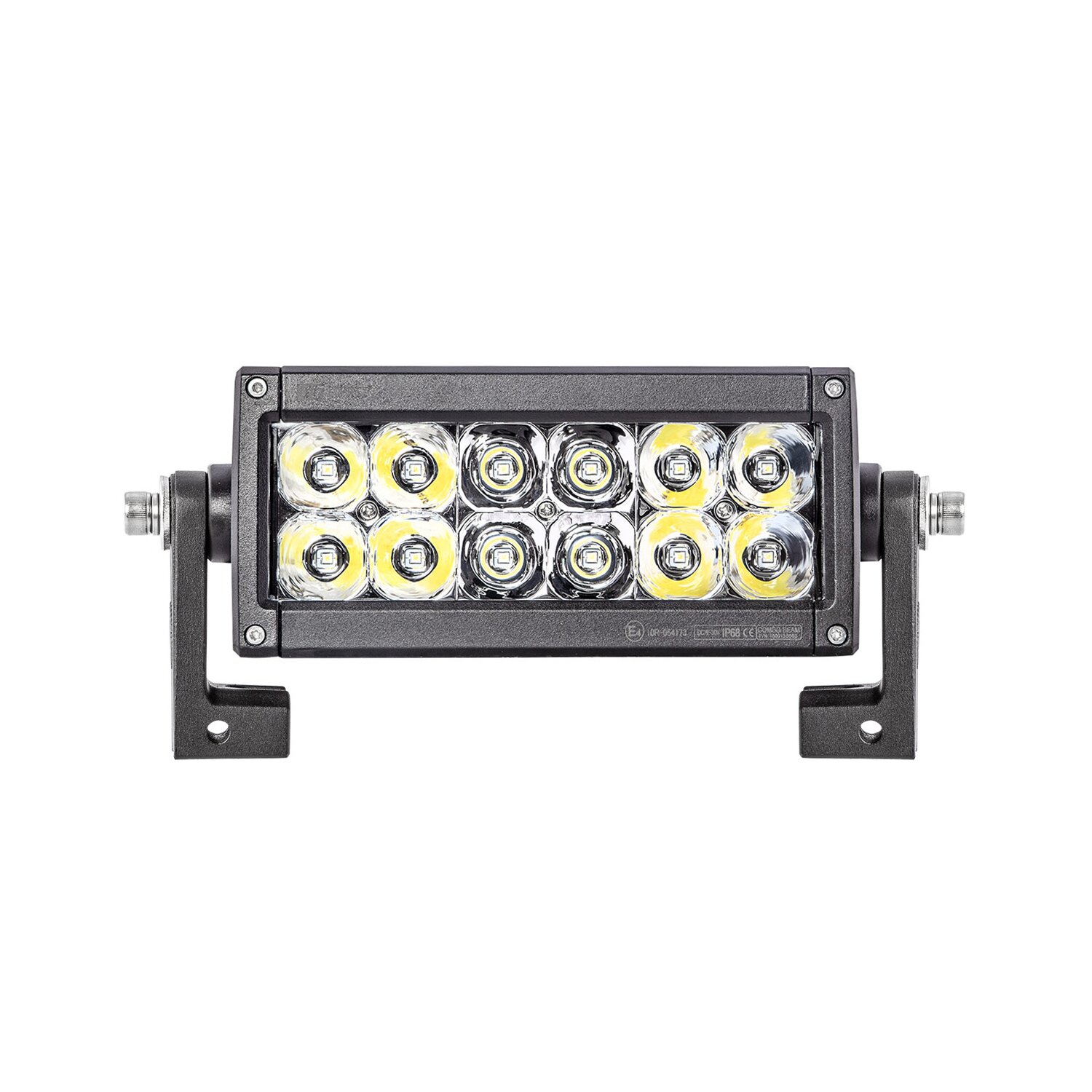

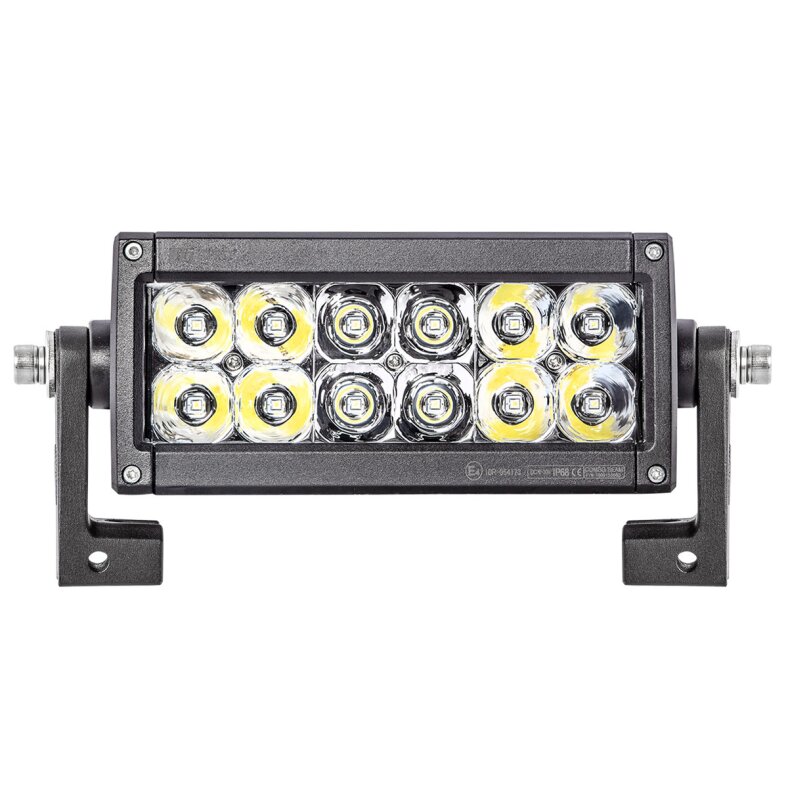

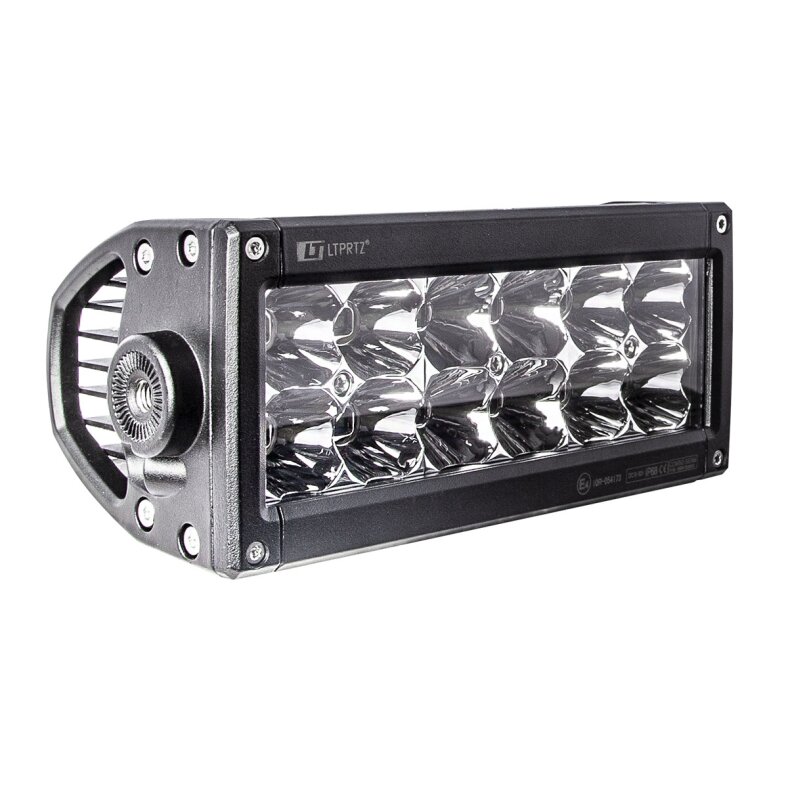

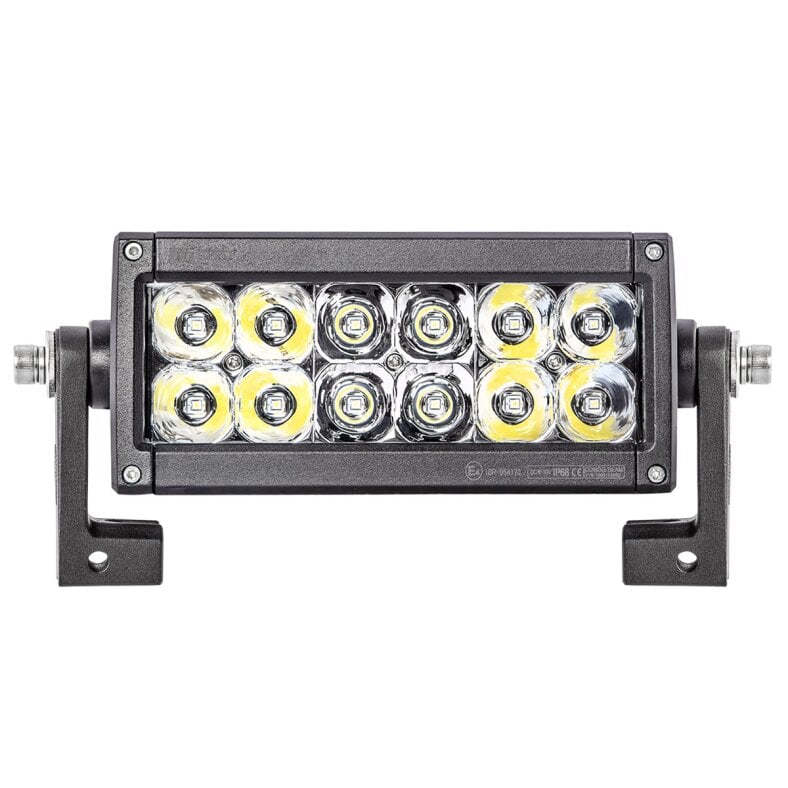

36W trx led Lightbar 10° + 60° EMC
The trx series is the ideal choice for high-intensity homogeneous illumination of off-road terrain. Equipped with central 10° spot beams and outer 60° flood beams, the lightbar achieves up to 489m with still 0.25 lux.

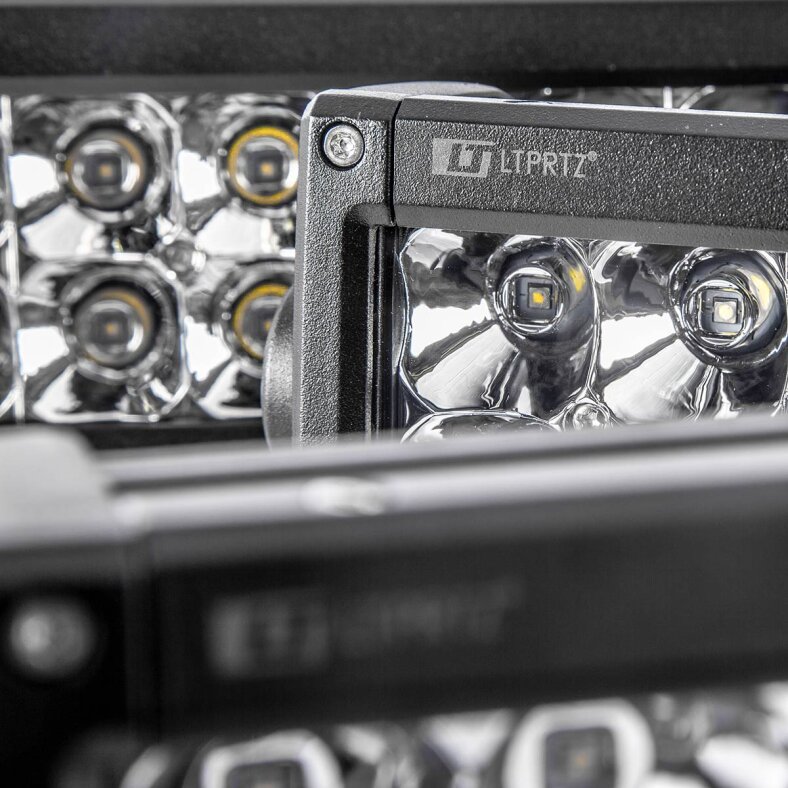

High-quality osram led chips ensure a long service life and a constant color temperature even after thousands of hours of operation. Materials:
- 6063 extruded aluminum heat sink
- Efficient polycarbonate (PC) lens refractors
- Lexan polycarbonate (PC) front screen

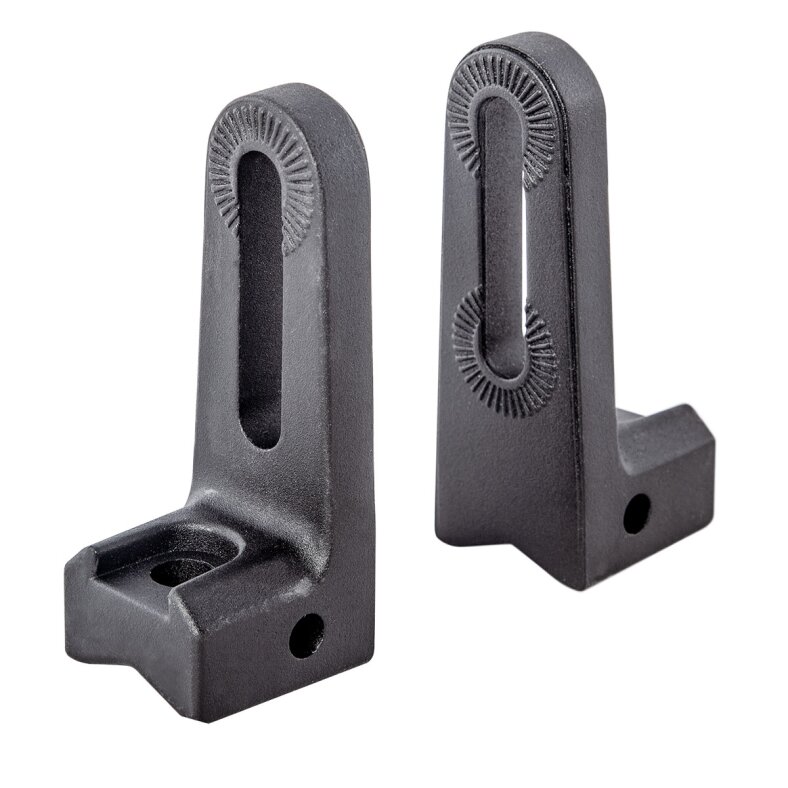

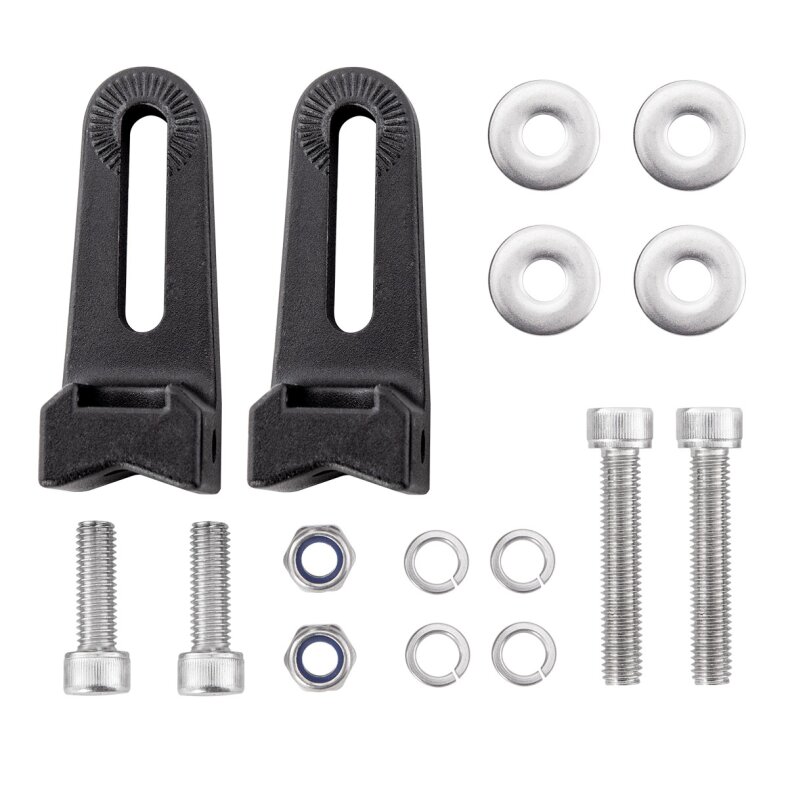

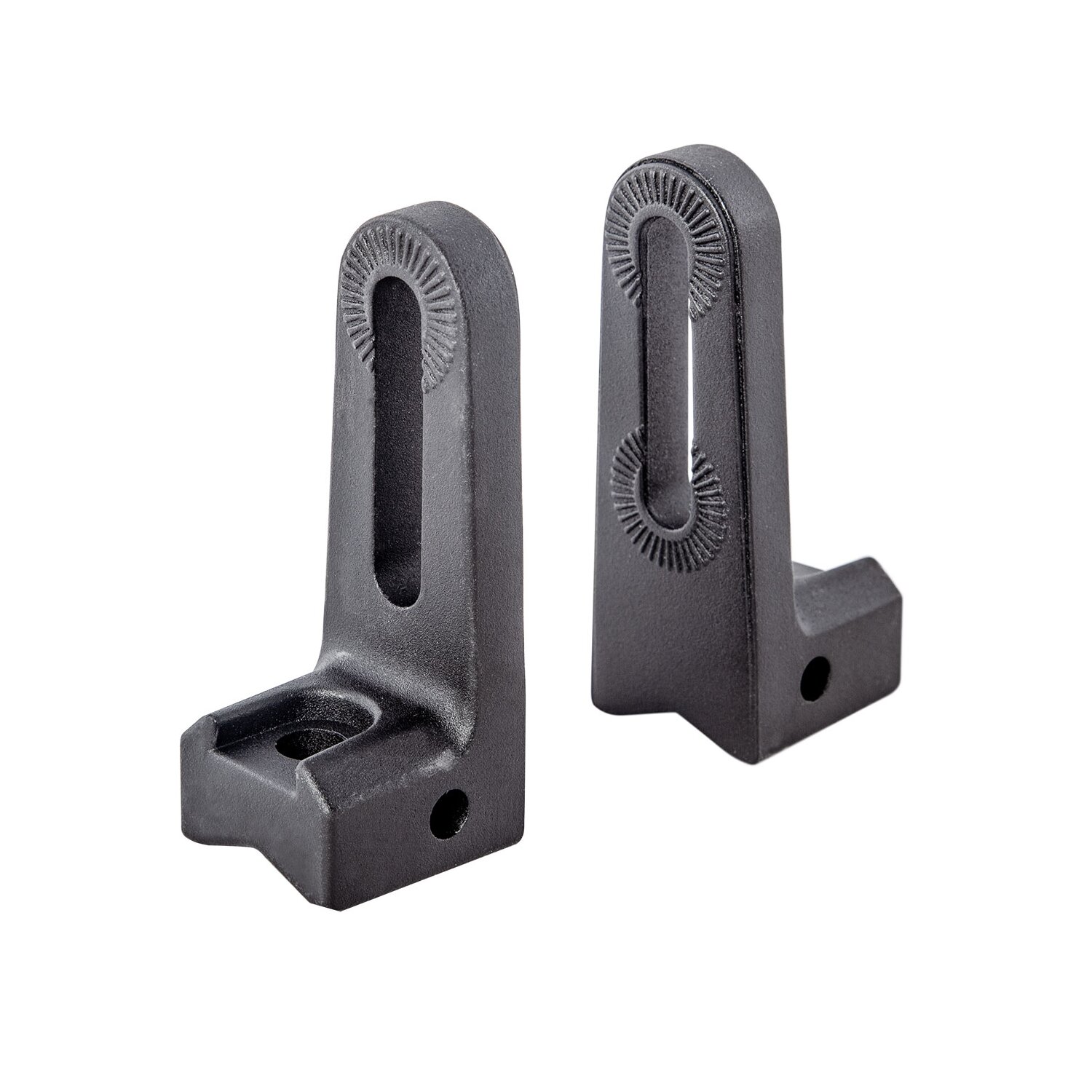

- zinc alloy side mount
- Powder coating made of anodized polyester
Protected against:
- Reversal of polarity
- Shockproof, waterproof and UV protected
- RFI/EMC interference
- Voltage and current surges
- Operating conditions:
- 9-30V DC input
- Ambient temperature -40~+60 ° C
Features:
- PWM thermal management regulation
- 50.000+ hours lifetime
- Optical combined point and flood system
- Instant on/off
- Electromagnetic compatibility certification

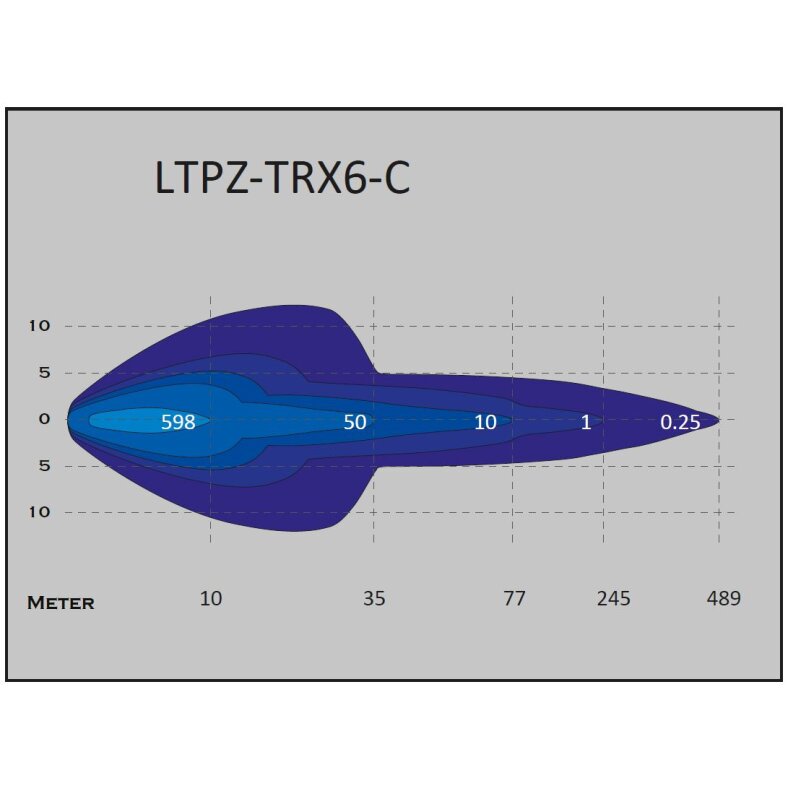

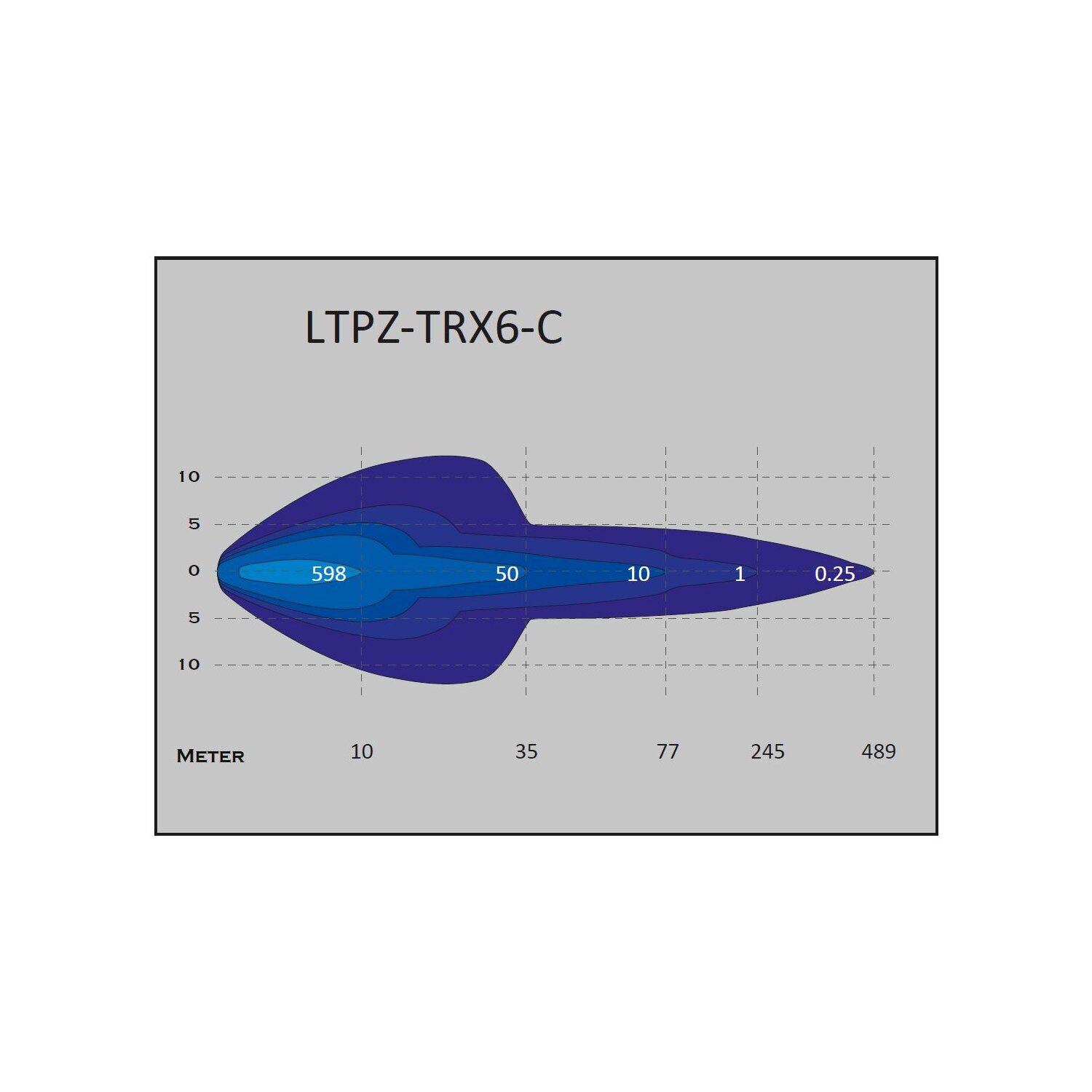

- Range: 489m (0.25Lx)
| Technical Specifications |
|
| Input voltage |
|
9-30V |
|
| Light source |
|
12x 3w osram led chips |
|
| Power consumption |
|
36W |
|
| Light output (raw) |
|
2520lm |
|
| Light diffusion |
|
Spot 10° + flood 60° |
|
| Light intensity |
|
Spot 74.700cd, flood 25.400cd |
|
| Protection class |
|
IP68 |
|
| Lens |
|
shatterproof polycarbonate |
|
| Housing |
|
Die-cast aluminum ADC12 |
|

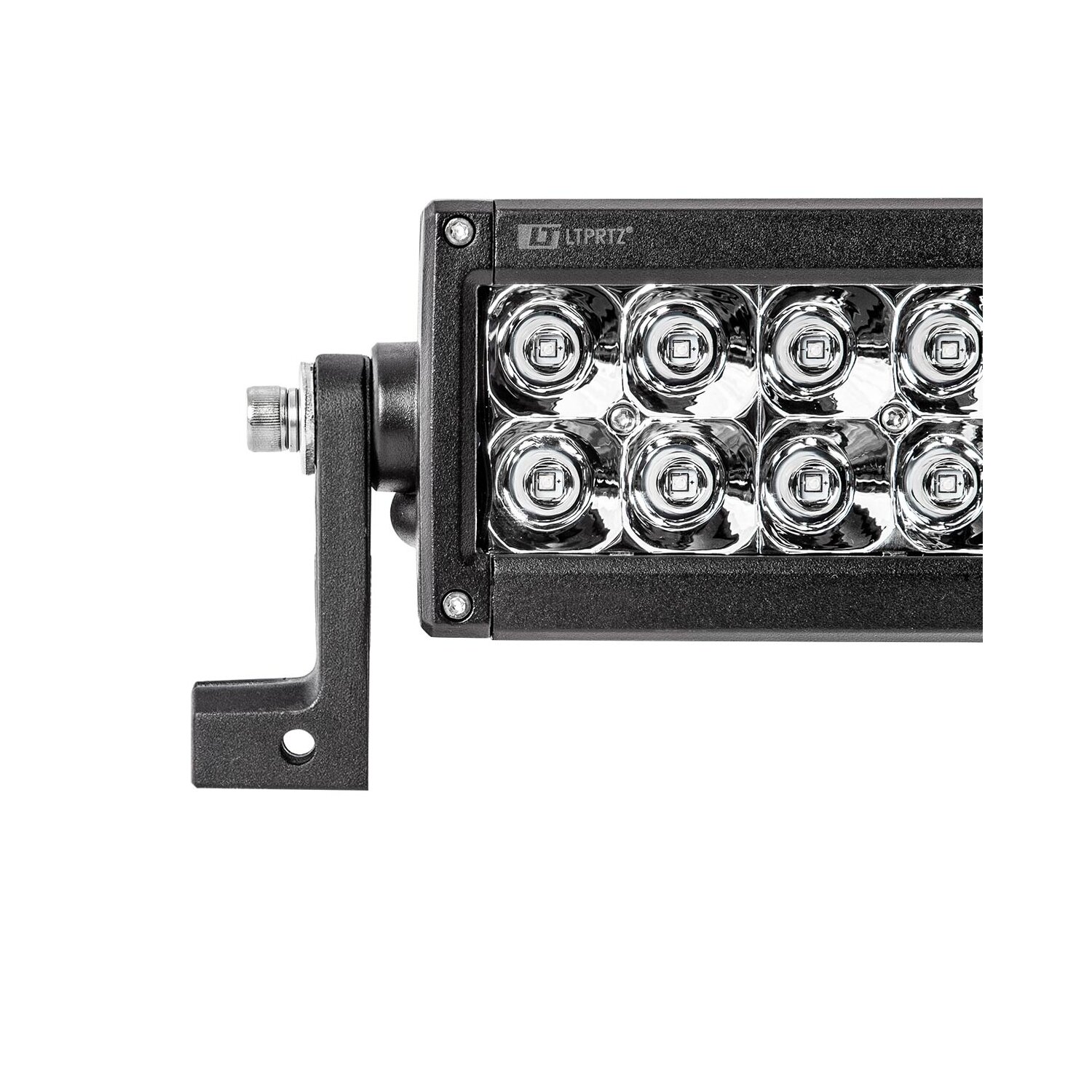

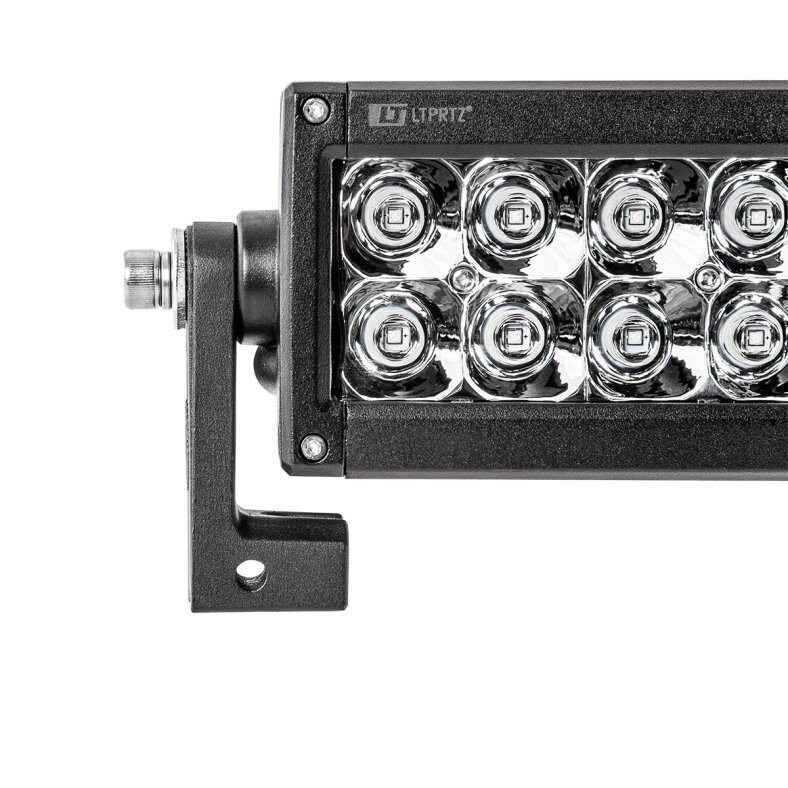

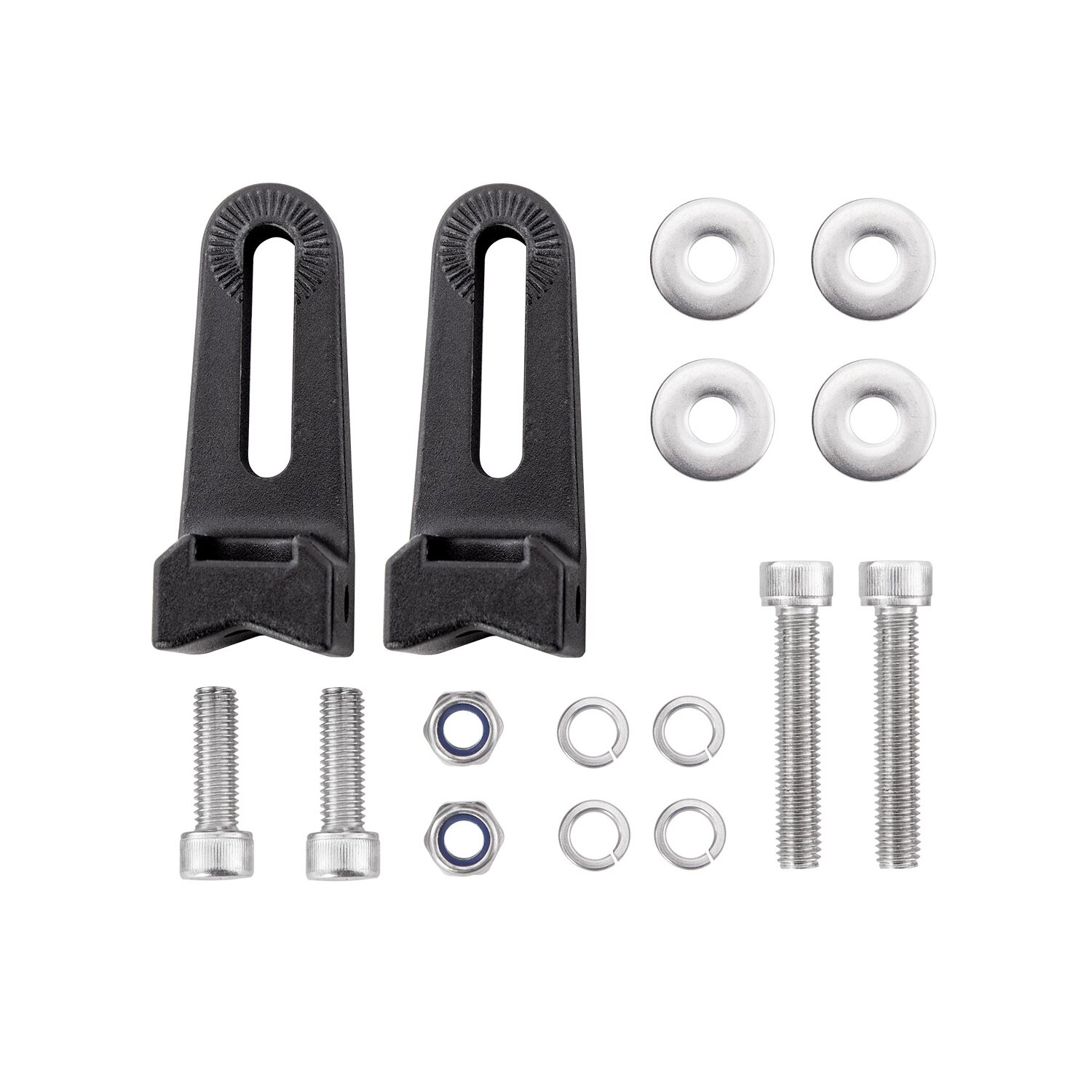

| Mounting |
|
vertical|hanging |
|

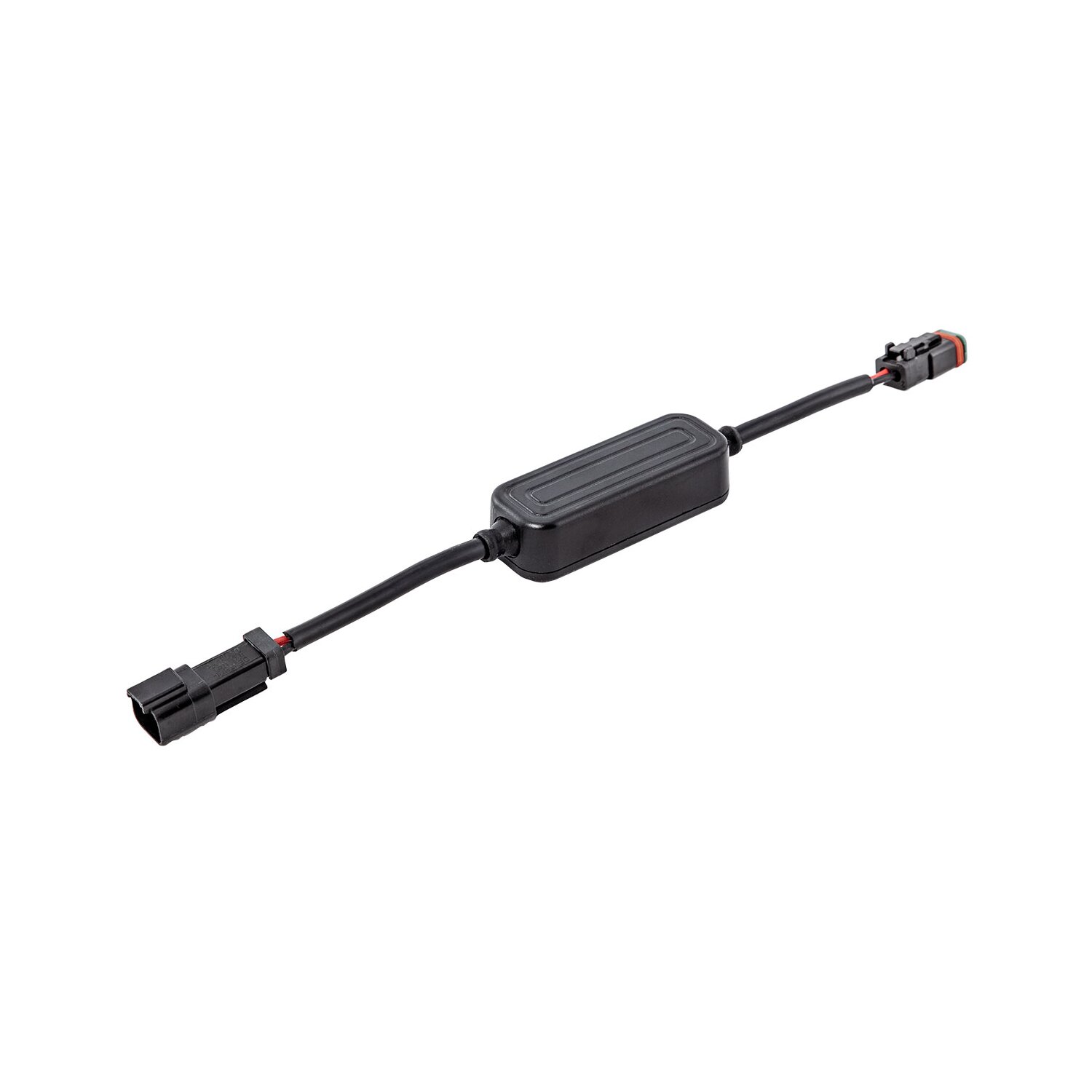

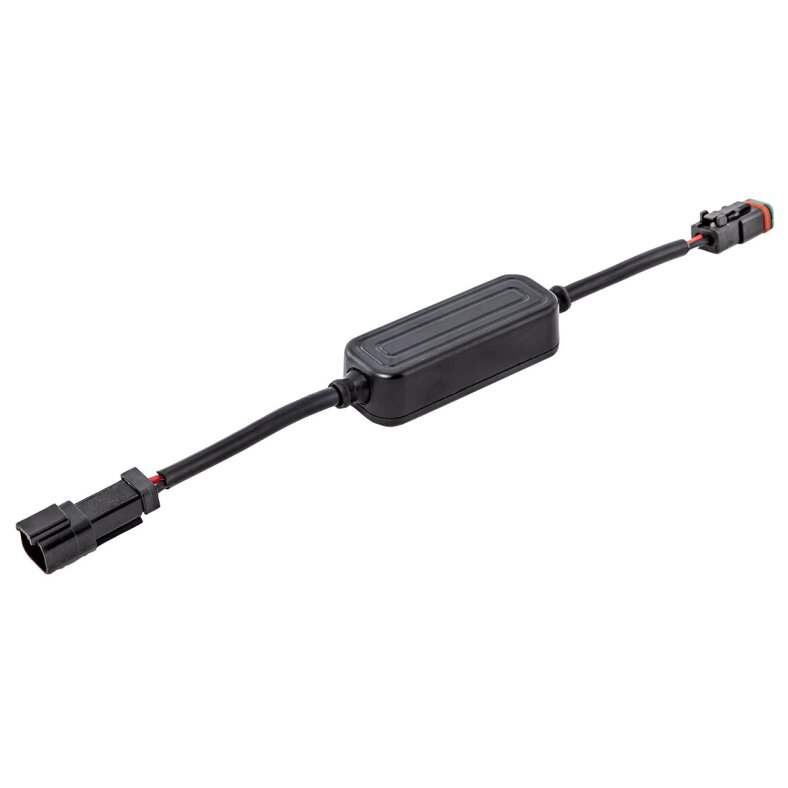

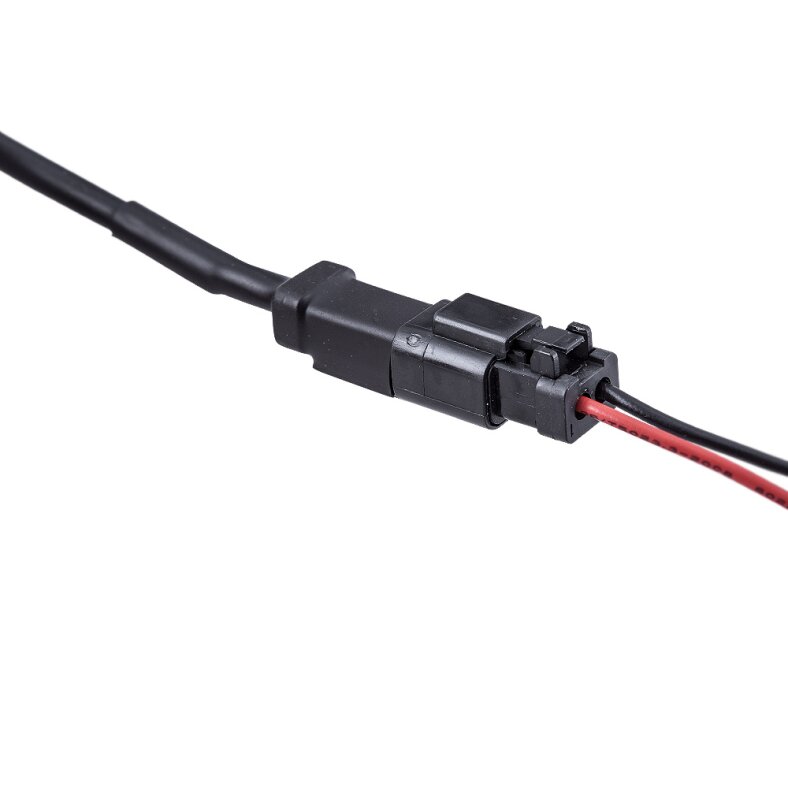

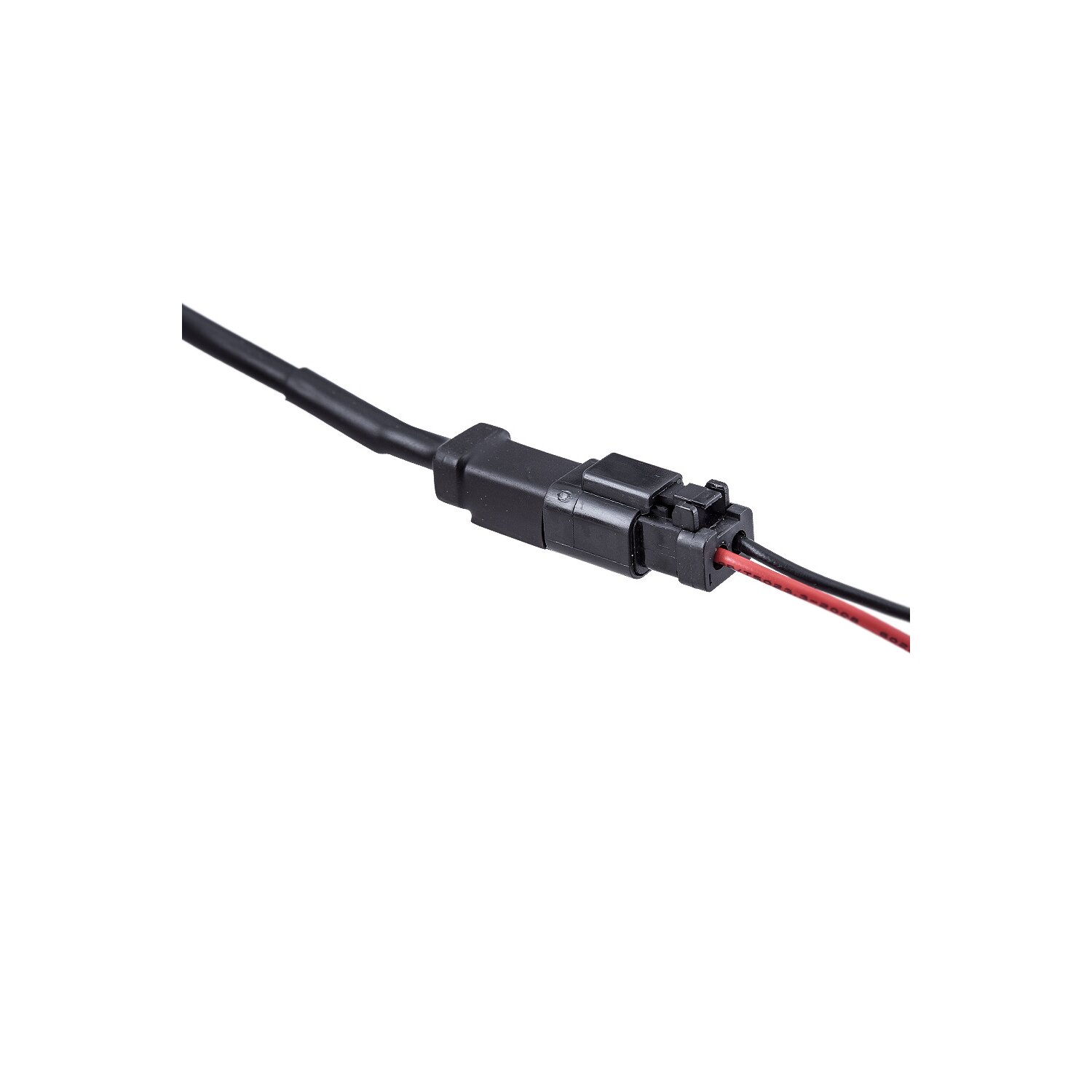

| Connection |
|
German plug |
|
| Weight |
|
n.a. |
|

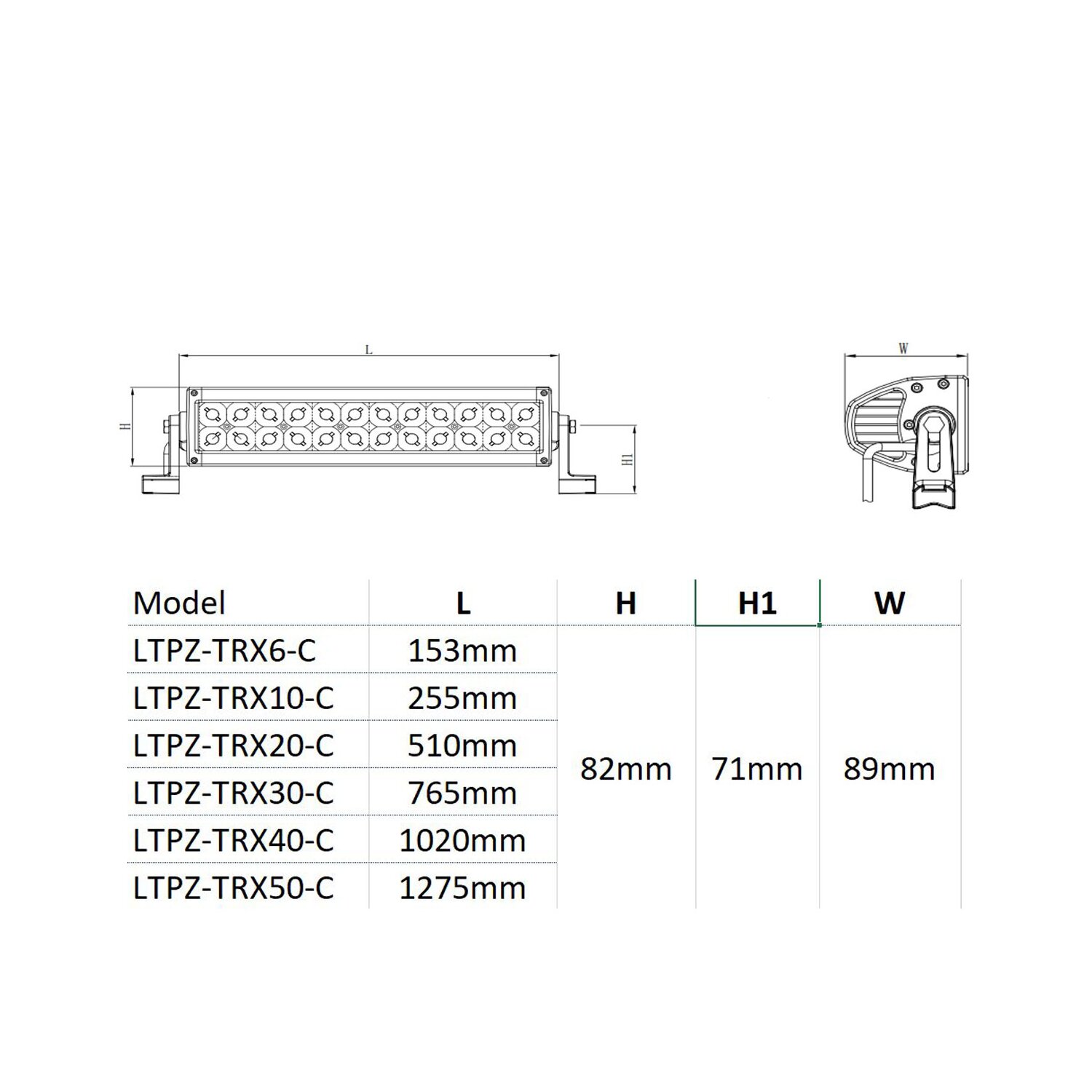

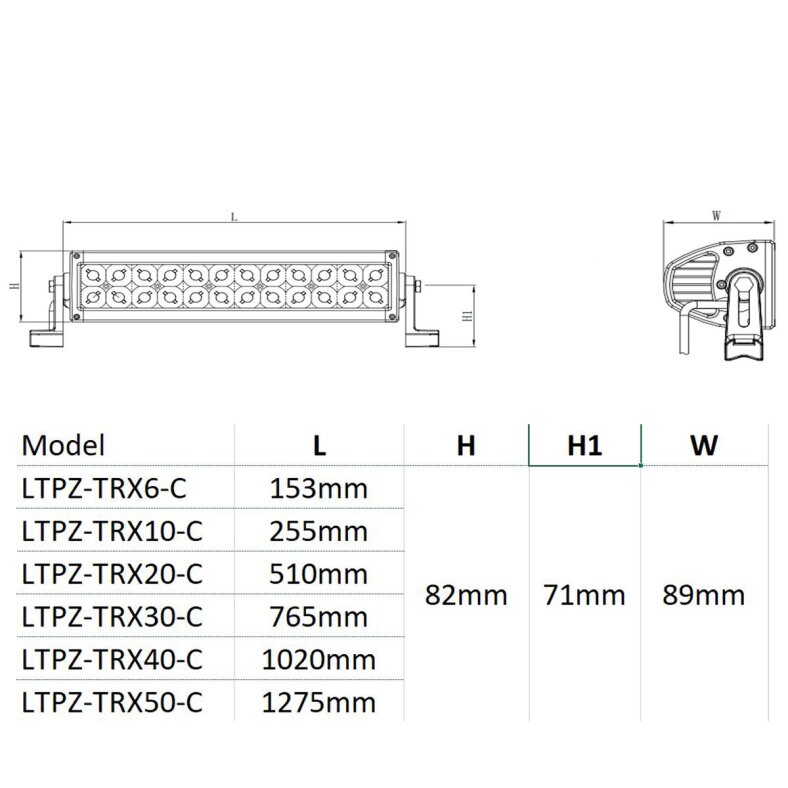

| Dimensions |
|
153.0 x 89.0 x 82.0 mm |
|
| Homologation: |
|
ECE 10R |
|
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Shipping weight: |
0,90 kg
|
| Item weight: |
0,70 kg
|
| Dimensions
( Length × Width × Height ):
|
15,30 × 8,90 × 8,20 cm |
