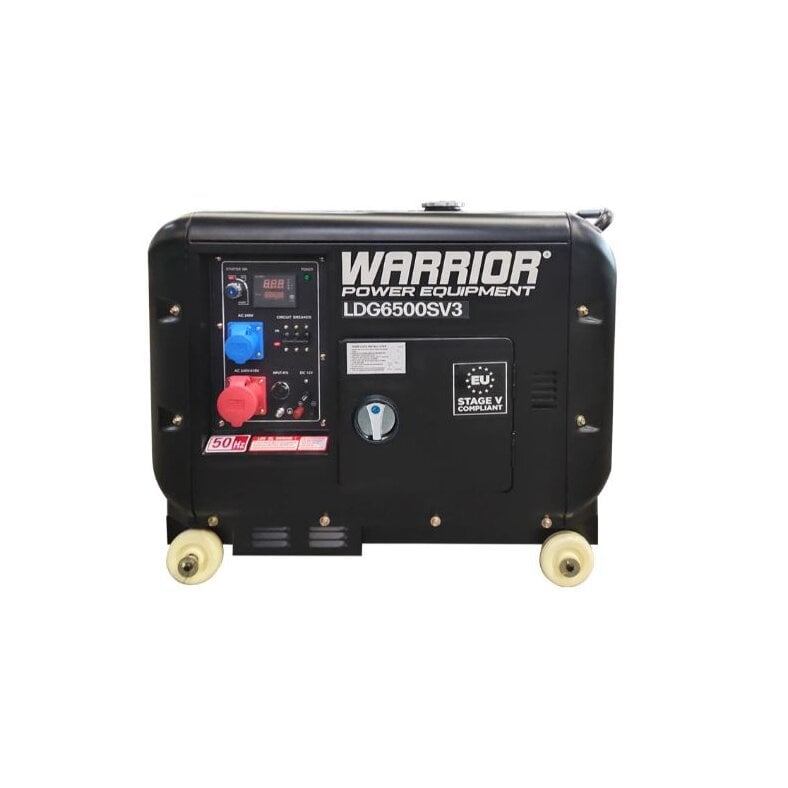

warrior diesel silent power generator 6.25 kVA 230v/400v for emergency power supply
This portable standby generator is manufactured by one of the world's leading diesel generator companies and is ideal for all types of applications including domestic, construction and industrial. The standby generator is the ideal product in case of power outages for the Emergency power supply of essential consumers such as heating, freezer, refrigerator and also other important electronic consumers and for high power work.
The generator with automatic speed regulation has a constant engine speed with extremely low emission rate - therefore the warrior diesel generator is very environmentally friendly and economical in operation. For example, the unit consumes approximately 1.3 l/h at 25% load. The industrial heavy-duty frame design provides optimum protection. The stable, integrated heavy-duty castors and the carrying handle facilitate transport to the place of use. In addition, the solid housing is encapsulated and soundproofed and, at just 68 db(A), is relatively extremely quiet. Due to the integrated vibration dampers, the device is low-vibration and extremely quiet.
Buy the latest generation of warrior silent diesel generators at seilwinden-direkt.de
The state-of-the-art voltage control system (AVR technology) protects the diesel generator and connected consumers from voltage spikes. This also ensures a long operating time of over 12h with a tank filling of 16 liters. The warrior ldg6500sv3-eu Silent emergency generator is equipped with a 400V three-phase socket, a 230V single-phase socket, and a 12v battery charging socket as standard. In addition, due to the supplied starter battery, this generator has a Key start function. A Niegrigöl automatic shutdown to protect the engine and a Fuel gauge are also available. The integrated doors make it convenient and quick to service the unit.
Also permanently installed, this diesel generator is ideal to ensure a safe power supply in your home - a high-quality emergency generator like the warrior ldg6500sv3-eu is worth it! With this generator you can supply essential consumers with power reliably and safely.
warrior power generator Silent Diesel "WWldg6500sv3-eu" 6,25 kVA 230v/400v buy online in the store
Model |
WWldg6500sv3-eu |
Max. Power |
5.500 |
Continuous power |
5.000 |
Voltage control |
Automatic (AVR technology) |
Connections |
1 x cee (400V/50Hz/16A)*
1 x cee (230V/50Hz/16A)**
1 x 12v (8.3A)
|
Engine/Displacement/Speed |
4-stroke single cylinder diesel engine (186fae) / 418 cm³ / 3000 RPM |
Fuel type |
Diesel |
Insulation protection class |
B (120 °C) |
Power factor |
1 |
Tank volume |
16,0 l |
Oil capacity |
1,1 l |
Operating time |
>12 h |
Fuel consumption |
2,48 l/h |
Sound pressure level (7m) |
68 db(A) |
Starter type |
Electric key start |
Dimensions |
89 x 59 x 73 cm |
Weight |
168 kg |
Special features |
2-pole residual current circuit breaker, automatic low oil cut-off, forced-ventilated motor, pressure lubrication, automatic voltage control, robust industrial frame, rollers and carrying handle, anti-vibration dampers |
Fields of application |
Emergency power supply for home and garden, industry, construction site, electronic devices |
Certificates |
ISO9001-2000, gs, TÜV |
All specifications for this device refer to the balanced load - if you use unbalanced loads you have to check the compatibility.
* The device is not slant load/shift load compatible. The individual phases must be equally loaded.
** When operating single phase on a three phase generator, you will only get approximately 30-35% of the full output power because the outlet is only operating on one of the three available phases.
Therefore, only one third of the power (approx. 1,500 watts) can be accessed on the cee socket with 230v/16a.
Buy now exclusively with us at Seilwinden-direkt.de diesel generators from warrior!
Product safety information
Manufacturer information:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Item information |
Value |
| Fuel Type: |
Diesel |
| Weight [kg]: |
168 |
| Fuel capacity [ml]: |
16 |
| Oil tank capacity [ml]: |
1100 |
| Choke type: |
Automatic |
| Power factor [%]: |
80 |
| RPM: |
3000 |
| AC Output: |
220V 16A415V 16A |
| Noise Level @7m [db]: |
68 |
| Rated Watts [W]: |
5000 |
| Max [W]: |
5500 |
| Width [cm]: |
59 |
| Length [cm]: |
89 |
| Height [cm]: |
73 |
| Type: |
Diesel |
| Shipping weight: |
150,00 kg
|
| Item weight: |
150,00 kg
|
| Dimensions
( Length × Width × Height ):
|
74,00 × 91,00 × 53,00 cm |
