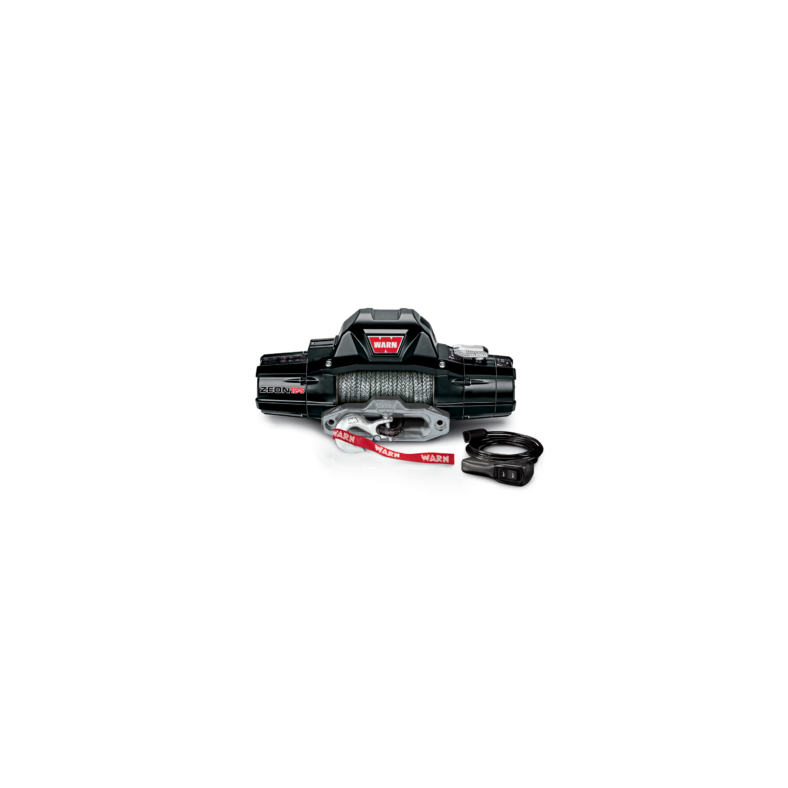

WARN zeon 12-s synthetic rope 5.4t 12V
The Warn Zeon 12-s - A rugged look with just those performance-oriented features for Warn winch users. From a fast heat dissipation motor to a lubricated planetary gearbox, this winch is designed ready for the harsh off-road reality. A high pulling speed makes this winch a top choice for pickups and off-road vehicles. Available with wire rope or synthetic winch rope. The Spydura® synthetic winch cable has a sliding wear sleeve and the winch features a matte aluminum cable management slot.
Specifications:
-
Winch model: zeon12-s
-
Rated Pulling Force: 12,000 lbs, (5443 kgs.) single pull
-
Motor: In-line, 12V
-
Electrical control: Contactor
-
Operation: Wired with toggle switch
-
Gearbox: 3-stage planetary gear
-
Gear ratio: 216:1
-
Clutch: Mechanical gear
-
Brake: Automatic mechanical conical
-
drum: Ø/length: 64mm/230mm
-
Net weight: 34kg
-
Rope: Spydura® synthetic rope l: 24,4m Ø: 9,5mm
-
Aluminum rope window: matt
-
Recommended battery: 650 cca minimum for recovery
-
Battery cable: 2 x 1.83m
-
paint: Satin black powder coating
-
Winch dimensions: 615.9mm l x 181.6mm d x 267.1mm h
-
Mounting hole circle: 254mm x 114.3mm
-
Pulling speed (without load): 8.6 meters/minute
-
Power consumption (full load): 469 A
