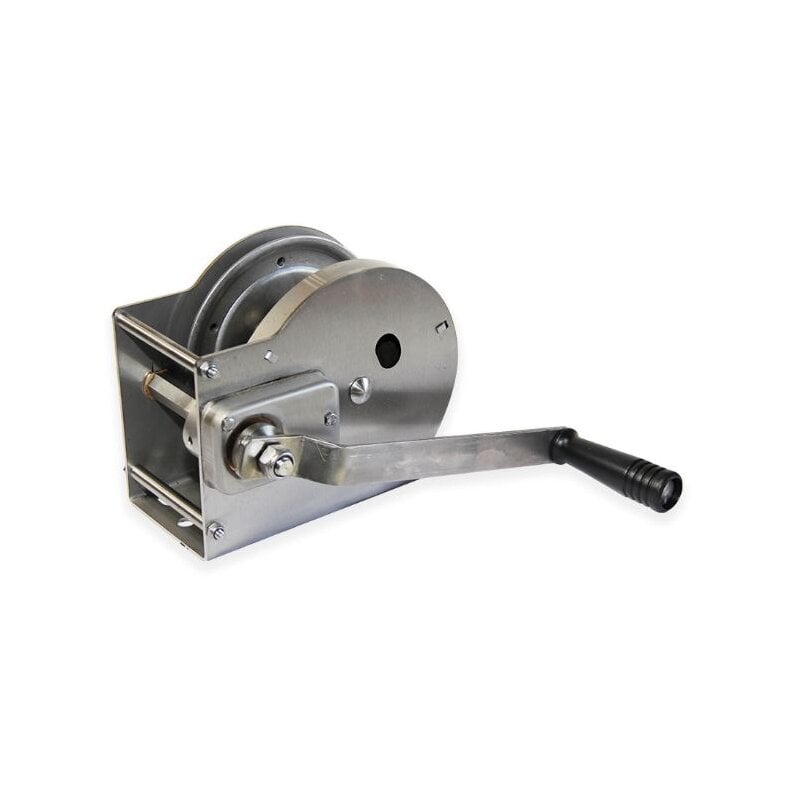

af self-braking hoisting winch with gearbox cover
The af winch is designed for lifting applications of both suspended loads and mobile loads on a horizontal or inclined plane (commonly also called ?traction").
Important: All applications are to be considered as lifting applications and therefore fall under the regulation of the European standards for hoisting winches.
Technical data:
- Number of speeds : 1
- Reduction ratio : 1/3.5
- Drum diameter : 45mm
- Brake : Self-braking
- Permitted lifting capacity bottom rope layer : 500kg
- Permitted lifting force top layer: 240kg
- Tractive force rolling load at 20% slope: 750kg
- Minimum load for braking function: 10kg
- Recommended rope ø (mm) / length (m) : ø5/10m (not included)
- Weight winch : 3.73kg
- Crank length (mm) : 200mm
- Crank : fixed screw
- Dimensions without crank : (LxWxH)
- Dimensions with crank : (LxWxH)
Attention: the following things are prohibited:
- The lifting and carrying of persons.
- The stay of persons under the load.
- Lifting loads under inclined traction.
- Allowing the load to swing during the lifting/lowering process.
- To have the load held in position by the winch longer than necessary for the application operation. In such a case, an independent system must be provided to secure the load separately.
- Loosely unwinding the rope and suddenly releasing the load from its position.
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Shipping weight: |
4,00 kg
|
| Item weight: |
3,70 kg
|
