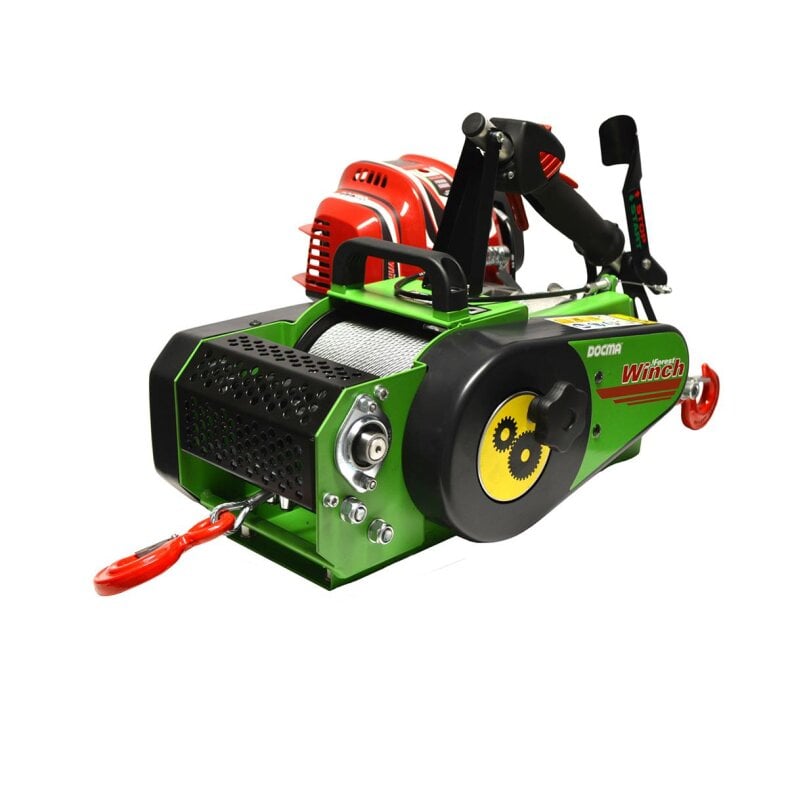

The vf150A portable winch for forestry from the ForestWinch range is manufactured in Italy by Docma Sri. It is characterized by an integrated automatic drum winding and has features: a low weight, a high tractive force, a high performance braking system and a robust and compact structure. The models named "Automatie" are equipped with a patented cable guide that evenly winds the cable onto the drum. Those called "Ultralight" are very light. This is also due to the textile cable, specially designed for our machines. These are winches for professional use.
SIMPLY AUTOMATIC
The forestry winch vf 150 Automatic has an automatic cable guide at the front, which rolls up the cable evenly on the roller. It is made of very light material and protected by patent application as industrial property.
Cable guide to roll up the cable automatically. Automatic braking system, according to European directives.
Technical data of the docma vf150 Automatic:
| Maximum tractive force |
1210 kg |
| Maximum tractive force with pulley |
2420 kg |
Weight (without rope)
Weight (with rope 80m x 5mm) |
28 kg
36,4 kg |
| Dimensions |
590x385x360 mm |
| Speed |
19 m/min |
| Engine |
HONDA 4-stroke GX50 |
| Brake type |
Automatic |
| Drum capacity |
Steel cable:
80 m x 5 mm
60 m x 6 mm |
| Rope winding |
Automatic |
The components used for ForestWinch forestry winches are manufactured according to high quality requirements, as they should correspond to a device to be used also professionally.
Product safety information
Manufacturer information:
DOCMA Srl
Via dell’Artigianato 14
37050 Raldon di San G. Lupatoto VR, Italien
sales@docma.it
Responsible person:
DOCMA Srl
Via dell’Artigianato 14
37050 Raldon di San G. Lupatoto VR, Italien
sales@docma.it
| Item information |
Value |
| Shipping weight: |
37,40 kg
|
| Item weight: |
28,35 kg
|
| Content: |
1,00
|
| Dimensions
( Length × Width × Height ):
|
59,00 × 38,50 × 36,00 cm |
