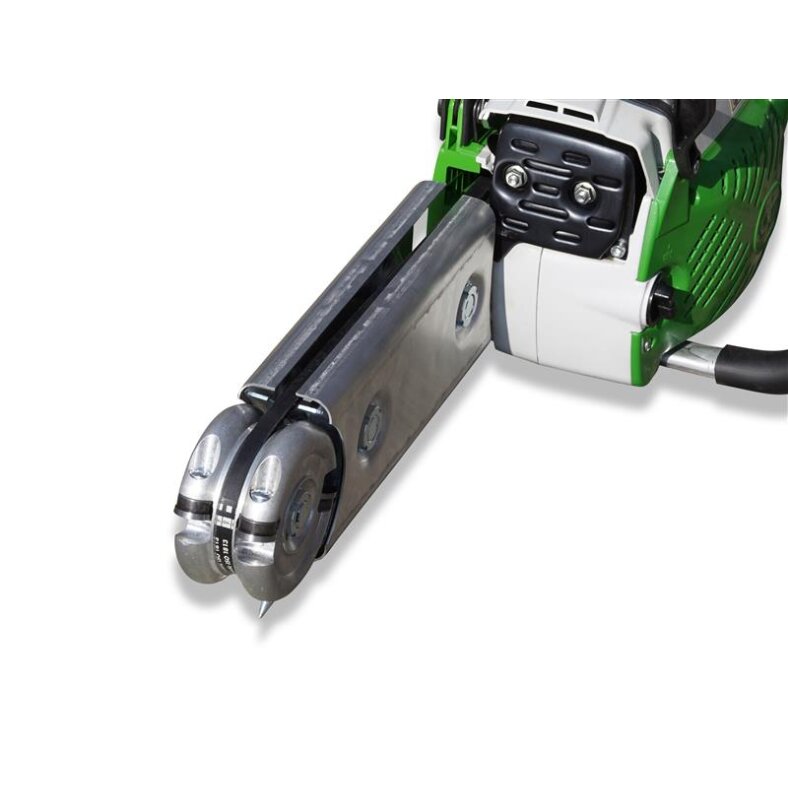

eder trough cutter incl. motor
The eder trough cutter eth1 is suitable for milling out depressions in wood.
It can be used for the production of troughs, for sculptural or tree surgery work and for milling out tree trunks.
Due to the arrangement of the round knives, processing is possible both in the longitudinal and transverse direction of the milling head.
The infinitely adjustable and removable tip on the underside of the cutter head carrier penetrates the wood and absorbs most of the cutting forces.
This allows for a large removal volume per unit of time.
Technical specifications:
- Weight without motor: 2.75 kg
- Weight with eder motor: 8,55 kg
- Drive power: min. 1.2 kW
- Recommended drive power: 2.7 kW
- Milling drum diameter: 100 mm
- Milling drum width: 54 mm
- Blade length: 320 mm
- Number of knives: 4
- Max. Speed: 13.000 1/min
- Drive ratio: 1:1
The set consists of trough and motor.
Mounting instructions:
Minor adjustments must be made to some chainsaws. Basically no chainsaws with chain quick tension, Autotune or M-Tronic can be used!
We recommend the use in the set with the eder engine.
