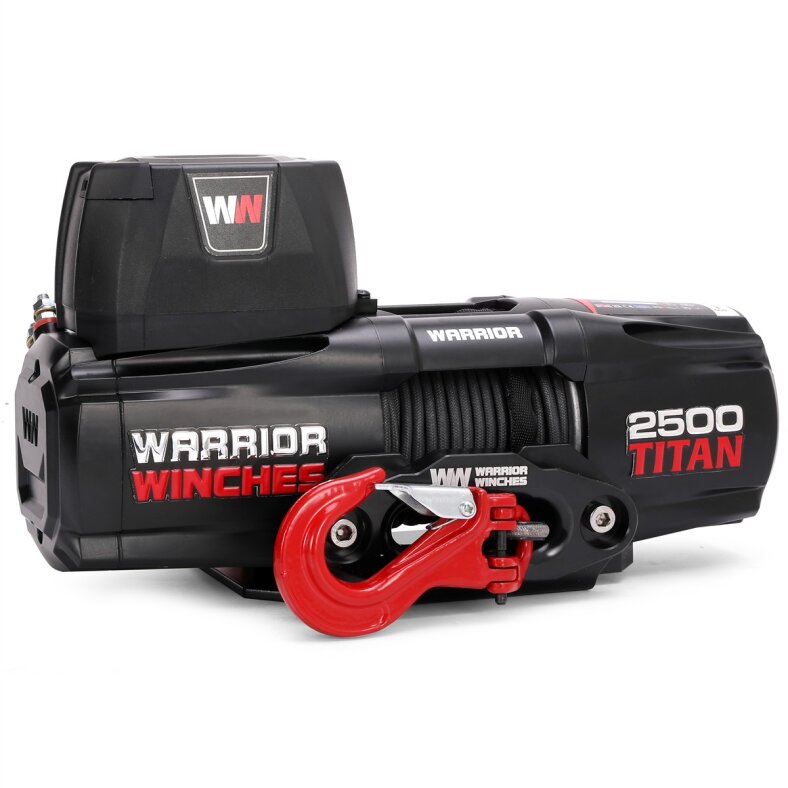

The Titan Range are premium grade winches built to deliver fast, quiet, and smooth recovery solutions. Packing impressive strength, easily pulling up to 6000 lbs.
Designed with extreme off-roaders and heavy-duty enthusiasts in mind, the Titan Range incorporates cutting-edge engineering and top-tier materials to ensure dependable performance when it matters most.
Whether you're scaling rocky trails, pulling through deep mud, recovering heavy equipment, or launching and retrieving boats, these winches provide the speed, strength, and control needed to conquer every challenge.
When performance, durability, and ease of use are non-negotiable, the Titan Range Delivers.
| Rated Line Pull |
2500 lbs |
| Motor Type |
12V:Input: 1.9kW / 2.6hp; Output: 0.9kW / 1.2hp |
| Clutch |
Manual |
| Gearing |
166:1 |
| Gearing System |
Planetary |
| Braking Action |
Mechanical Spring |
| Drum Size (Diameter x Length) |
50 x 94 mm |
| Controls |
2in1 Rechargeable Wired/Wireless Remote |
| Cable Material |
Synthetic |
| Cable Size (Diameter x Length) |
5mm x 14m |
| Fairlead |
Hawse |
| Mounting Pattern |
4.88 x 3.0 in (124 mm x 76.2 mm) |
| Dimensions |
349 x 127 x 195 mm |
| Weight |
12.9 kg |
| Waterproof Rating (IP) |
67 |
| Layer of Rope/Cable |
Line Pull: lbs(kgs) |
Total Rope on Drum ft (m) |
| 1 |
2500 (1135) |
8.5 (2.6) |
| 2 |
2129 (966) |
19.7 (6) |
| 3 |
1854 (842) |
32.8 (10) |
| 4 |
1642 (745) |
45.9 (14) |
Line Pull
lbs (kgs) |
Line Speed 12v
ft/min (m/min) |
Amp Draw
12v |
| 0 |
17 (5.2) |
25 |
| 1000 (454) |
14.4 (4.4) |
50 |
| 2000 (907) |
10.2 (3.1) |
130 |
| 2500 (1134) |
8.8 (2.7) |
160 |
Product safety information
Manufacturer information:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Item information |
Value |
| Cable/Rope Type: |
Synthetic Rope |
| Pulling Force max [lbs]: |
4500 |
| Voltage [V]: |
12 |
| Gear Transmission: |
166:1 |
| Rope Diameter [mm]: |
5 |
| Rope Length [m]: |
14 |
| Weight [kg]: |
13 |
| Mount-Pattern [mm]: |
124 x 76 |
| max Amp [A]: |
160 |
| Linespeed max [ft/min]: |
17 |
| Linespeed min [ft/min]: |
8,8 |
| IP-Rating: |
IP67 |
| Drive Type: |
electric |
| Brand: |
Warrior® |
| Width [mm]: |
127 |
| Drum Size [Dia x L in mm]: |
50 x 94 |
| Length [mm]: |
349 |
| Height [mm]: |
195 |
| Shipping weight: |
13,50 kg
|
| Item weight: |
12,90 kg
|
| Content: |
1,00
|
