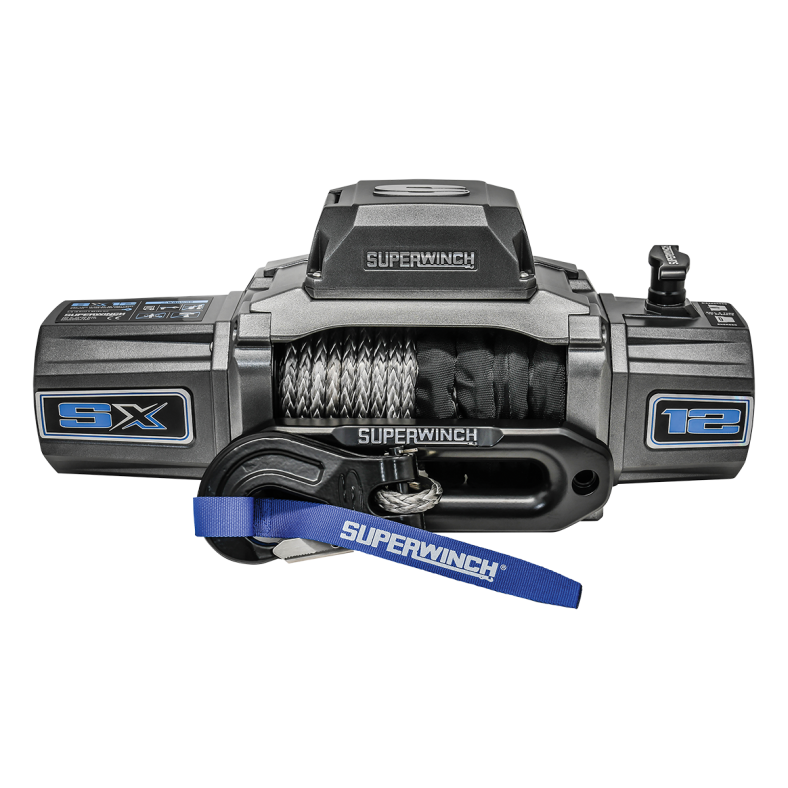

SUPERWINCH SX12SR 12V Electric Winch, synthetic rope, 12,000 lb

SUPERWINCH SX12SR 12V Electric Winch, synthetic rope, 12,000 lb

SKU: SW-1712201
GTIN: 022705003902
HAN: 1712201
Category: Winch Configurator

The SUPERWINCH SX12SR is an electric winch with 12 V for vehicle recovery, off-road and demanding pulling applications. Rated line pull is 12,000 lb. Rope version: synthetic rope. Original part number 1712201.

1.011,50 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available immediately
Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

piece

This bundle is now in the shopping cart.

Discount with Bundle:

This bundle promotion cannot be combined with other coupon promotions.

SUPERWINCH SX12SR 12V Electric Winch, synthetic rope, 12,000 lb

SUPERWINCH Winch Cover for SX10(SR), SX12(SR), Talon 9.5 (Solenoid integrated) – 1571

Your Savings: 32,29 €

SUPERWINCH SX12SR – controlled pulling power for vehicle recovery, off-road and demanding pulling applications

This electric winch combines the stated pulling capacity with a gear, brake and rope configuration selected for its intended application. Model, voltage, rope version and original part number are clearly identified to support technical selection and future spare-parts assignment.

Technical features

Voltage [V]: 12
Max. rated line pull [t]: 5.4
Min. line pull [t]: 3.0
Freespool: manual
Current draw at full load [A]: 379
Line speed [m/min]: 1.1 - 7.1
Mounting holes: 4
Mounting pattern [mm]: 254 x 114
Width [mm]: 560
Depth [mm]: 160
Height [mm]: 246
Weight [kg]: 28
Rope: 3/8 in x 80 ft. synthetic rope
Motor output: 6.0 HP
Gearbox: 3-stage planetary

Application and system design

Designed for vehicle recovery, off-road and demanding pulling applications. Electrical protection, cable sizing, battery and mounting must be matched to voltage, current demand and the intended use. Maximum line pull generally applies to the first rope layer; available pulling force decreases as additional layers build on the drum. Mounting, rigging, rope routing and safety factors must be engineered for the actual application.

Scope of delivery

Superwinch SX12SR, wired remote control 3.6 m, wireless remote control, hawse fairlead, control box, battery cables, synthetic rope 9.5 mm - 24 m

Note: Install, operate, maintain and inspect only in accordance with the manufacturer documentation applicable to this model. Do not use for transporting people; lifting is permitted only where the winch, installation and application are expressly approved for that purpose.
