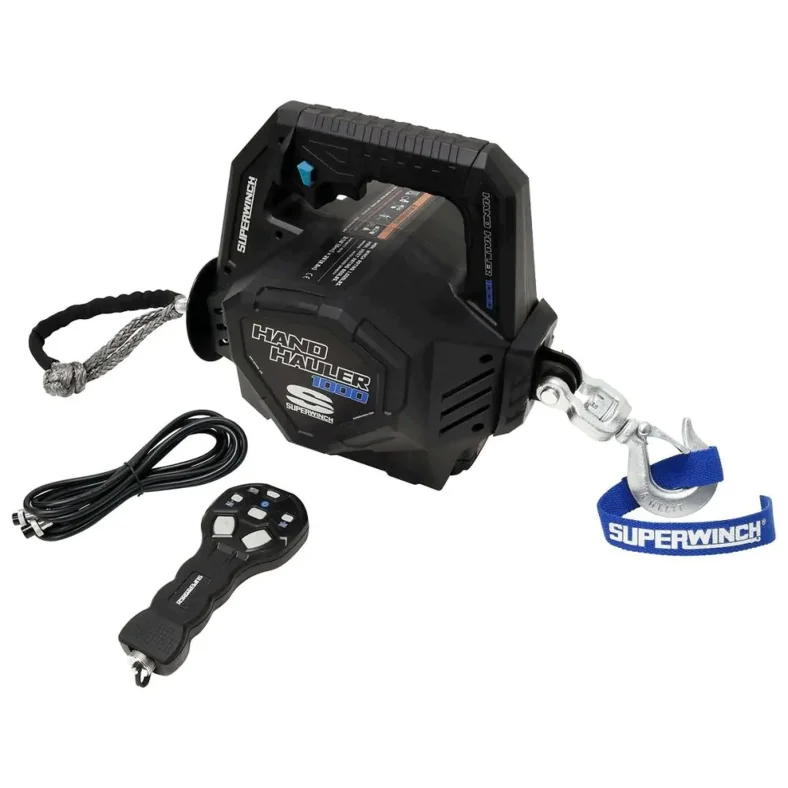

SUPERWINCH Hand Hauler 1000 – controlled pulling power for portable pulling and lifting tasks within the manufacturer's approved limits
This portable battery-powered winch combines the stated pulling capacity with a gear, brake and rope configuration selected for its intended application. Model, voltage, rope version and original part number are clearly identified to support technical selection and future spare-parts assignment.
Technical features
-
Max. rated line pull [t]: 0.45
-
Lifting capacity [t]: 0.36
-
Voltage [V]: 24
-
Line speed [m/min]: 2.2 - 2.7
-
Length [mm]: 276
-
Width [mm]: 264
-
Height [mm]: 267
-
Weight [kg]: 7.6
-
Version: portable
-
Rope: 28' Synthetic rope
-
Control: 13' handheld wired remote control
Application and system design
Designed for portable pulling and lifting tasks within the manufacturer's approved limits. Electrical protection, cable sizing, battery and mounting must be matched to voltage, current demand and the intended use. Maximum line pull generally applies to the first rope layer; available pulling force decreases as additional layers build on the drum. Mounting, rigging, rope routing and safety factors must be engineered for the actual application.
Scope of delivery
Superwinch Hand Hauler 1000 Winch, wired remote control 4 m, wireless remote control, Netzteil 230 V/29.4 V, Akku 25.9V/2000 mAh, synthetic rope 5 mm - 8.5 m
Note: Install, operate, maintain and inspect only in accordance with the manufacturer documentation applicable to this model. Do not use for transporting people; lifting is permitted only where the winch, installation and application are expressly approved for that purpose.
