eder round planer incl. motor

SKU: ERH-002-Set
Category: <a href="https://www.seilwinden-direkt.de/?k=819&amp;lang=eng" itemprop="category"> Rundhobel, Planhobel, Konturhobel

The eder round planer erh1 is suitable for planing round wooden surfaces up to a diameter of 30cm.
The design of the planing roller with its inclined knives results in high chipping performance with minimum effort.
The planing head is placed on the curved guide plate which oscillates around the rotation axis of the roller. The knives mounted on the planing roller are infinitely adjustable, allowing a chip thickness of up to 1mm to be achieved.

Technical specifications:

Weight without motor 2,5 kg
Weight with eder motor 8,3 kg
Drive power min. 1,2 kW
Working width 80 mm
Knife width 30 mm
Number of knives 6
Max. Speed 13.000 1/min
Drive ratio 1:1

This set consists of planer and motor.

Mounting instructions:

Minor adjustments must be made to some chainsaws. Basically no chainsaws with chain quick tension, Autotune or M-Tronic can be used!

We recommend the use in the set with the eder motor.

Shipping weight:	10,00 kg
Item weight:	8,30 kg

There are no reviews yet.

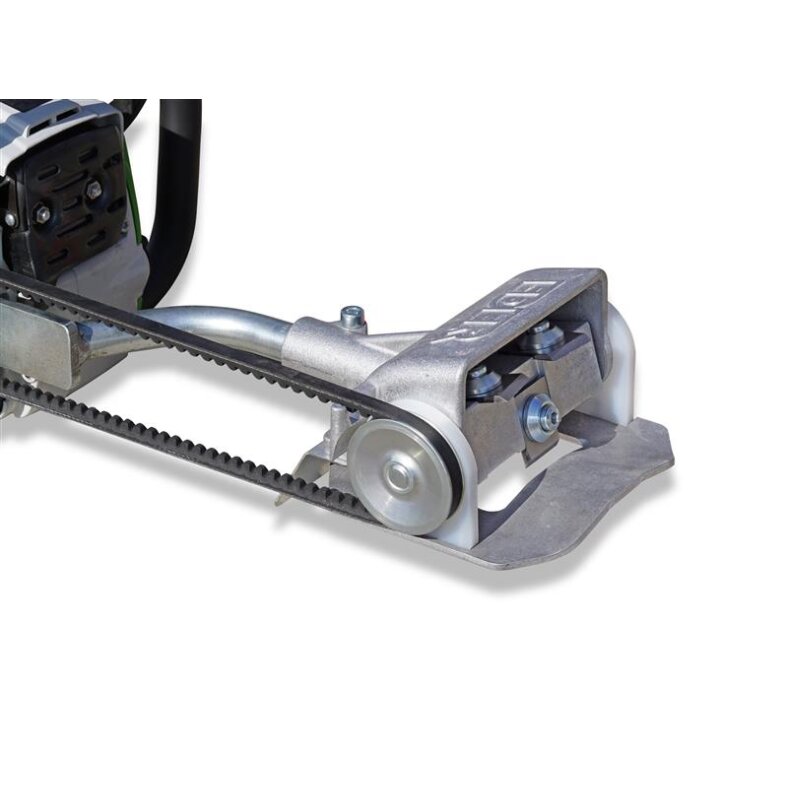

Round planer set eder erh1 with motor
