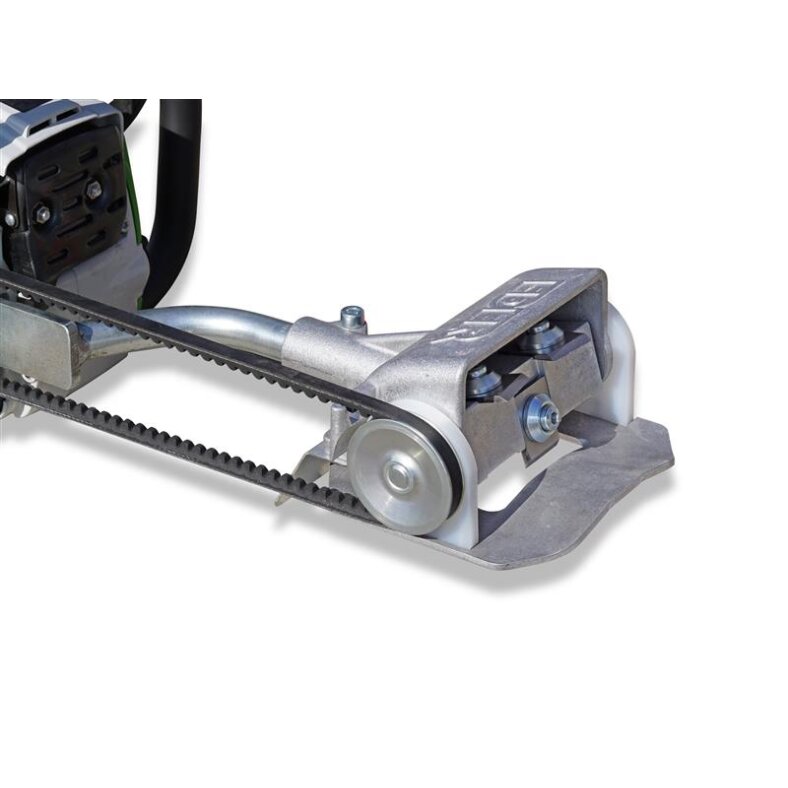

eder round plane
The eder round planer erh1 is suitable for planing round wooden surfaces up to a diameter of 30cm.
The design of the planing roller with its inclined knives results in high chipping performance with minimum effort.
The planing head is placed on the curved guide plate which oscillates around the rotation axis of the roller. The knives mounted on the planing roller are infinitely adjustable, allowing a chip thickness of up to 1mm to be achieved.
Technical specifications:
- Weight without motor 2,5 kg
- Weight with eder motor 8,3 kg
- Drive power min. 1,2 kW
- Working width 80 mm
- Knife width 30 mm
- Number of knives 6
- Max. Speed 13.000 1/min
- Drive ratio 1:1
IMPORTANT: This is the circular planer. The motor is not included in the delivery.
You can order the set consisting of planer and motor HERE to order.
Mounting instructions:
Minor adjustments must be made for some chainsaws. Basically no chainsaws with quick chain tension, Autotune or M-Tronic can be used!
We recommend the use in set with the eder motor.
