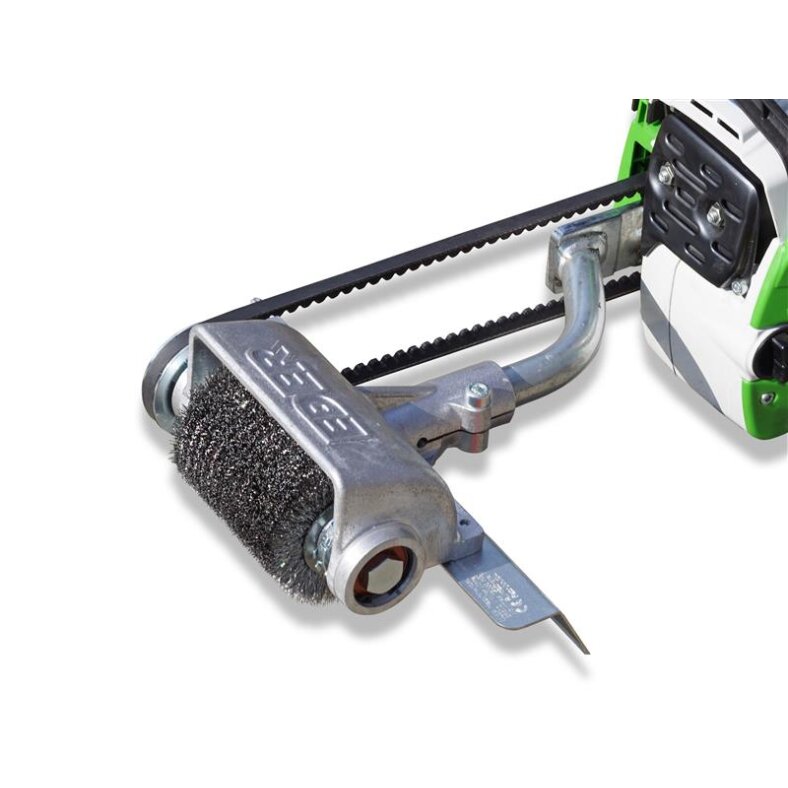

eder round brush
The eder circular brush erb1 is suitable for brushing wooden surfaces as well as painted and rusty metal surfaces.
The design of the brush roller results in a well controlled brushing and sanding performance with minimum effort.
The brush roller is placed on the surface to be sanded at full speed and guided evenly over the surface to be brushed without pressure. The round brush can be ordered with brush trim made of steel wire (erb1s), brass wire (erb1m) or plastic (erb1k).
Technical specifications:
- Weight without motor: 2.0 kg
- Weight with eder motor: 7.8 kg
- Drive power: min. 1,2 kW
- Working width: 100 mm
- Brush diameter: 80 mm
- Brush trim: steel and brass: wire diameter 0.3 mm
- Brush trim plastic: wire diameter 0.6 mm
- Max. Speed: 13.000 1/min
- Drive ratio: 1:1
IMPORTANT: This is the round brush. The motor is not included in the delivery.
The set consisting of round brush and motor can be ordered HERE to order.
Mounting instructions:
Minor adjustments must be made for some chainsaws. Basically no chainsaws with chain quick tension, Autotune or M-Tronic can be used!
We recommend the use in set with the eder motor.
