eder planer

SKU: EPH-001
Category: <a href="https://www.seilwinden-direkt.de/?k=819&amp;lang=eng" itemprop="category"> Rundhobel, Planhobel, Konturhobel

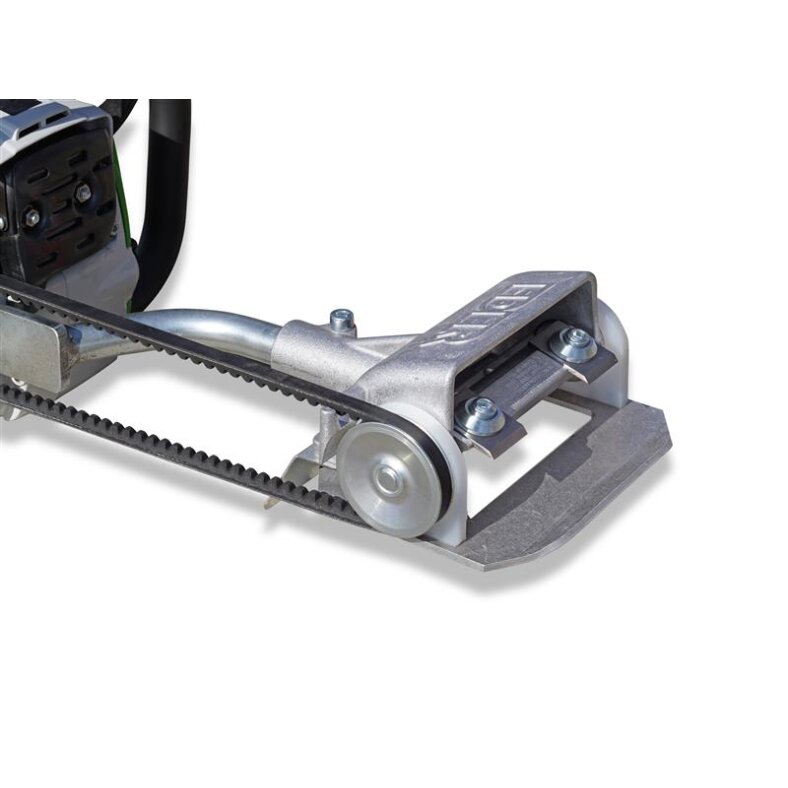

With the eder planer eph1 you can plane even surfaces of any type of wood.
The design of the planing roller results in a high and well controllable chipping performance with minimum effort.
The planing head is placed on the flat guide plate which oscillates around the rotation axis of the roller.

The knives mounted on the planing roller are infinitely adjustable, allowing a chip thickness of up to 1mm to be achieved.

Technical specifications:

Weight without motor: 2.5 kg
Weight with eder motor: 8,3 kg
Drive power: min. 1,2 kW
Working width: 120 mm
Knife width: 30 mm
Number of knives: 4
Max. Speed: 13.000 /1 min
Drive ratio: 1:1

IMPORTANT: This is the planer. The motor is not included in the delivery.

You can order the set consisting of planer and motor HERE to order.

Mounting instructions:

Minor adjustments must be made for some chainsaws. Basically no chainsaws with quick chain tension, Autotune or M-Tronic can be used!

We recommend the use in set with the eder motor.

Shipping weight:	4,00 kg
Item weight:	2,50 kg
