Pewag hsw 7/8 eye hook g10 2.5t

SKU: PW-OH-78
GTIN: 9002546672391
Category: Hooks

21,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 1 - 4 Workdays (DE - int. shipments may differ)

piece

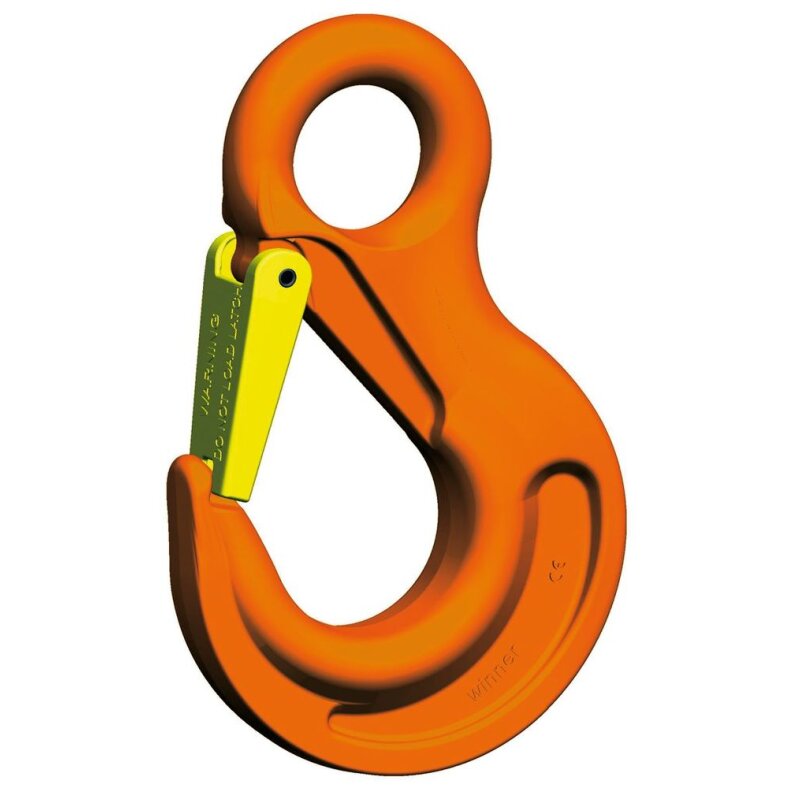

PEWAG hsw eye hook

Load capacity has a name.

The universally applicable eye hook is manufactured with a forged safety flap that locks into the tip of the hook.
This provides particularly good protection against lateral movement.
The hook is suitable for Connex and welded system and complies with en 1677-2 with mechanical values for G10.
Like all pewag elements, this eye hook is manufactured to a particularly high standard and is equipped with the safety latch set
with rust-resistant spring and locking sleeve, it can be mounted quickly and easily without special tools.
The safety flap provides the special safety plus. Nevertheless, the eye hook may only be loaded in a straight pull.
Loading at the tip of the hook or at the safety flap is not permitted.

hsw7/8
Load capacity: 2,500 kg
Weight: 0.5 kg

Code	Load capacity [kg]	e [mm]	h [mm]	a [mm]	d1 [mm]	d2 [mm]	g1 [mm]	b [mm]	Weight [kg/pce.]
hsw 5/6	1.400	85	21	17	20	10	19	68	0,30
hsw 7/8	2.500	106	27	19	25	11	26	88	0,50
hsw 10	4.000	131	33	26	34	16	31	109	1,10
hsw 13	6.700	164	44	33	43	19	39	134	2,20
hsw 16	10.000	183	50	40	50	25	45	155	3,50
hsw 19/20	16.000	205	55	48	55	27	53	178	5,80
hsw 22	19.000	225	62	50	60	29	62	196	8,00
hsw 26	26.500	259	75	60	70	37	73	235	12,80
hsw 32	40.000	299	97	82	66	45	87	291	27,50
hs 32	31.500	299	89	78	66	42	87	281	22,40
