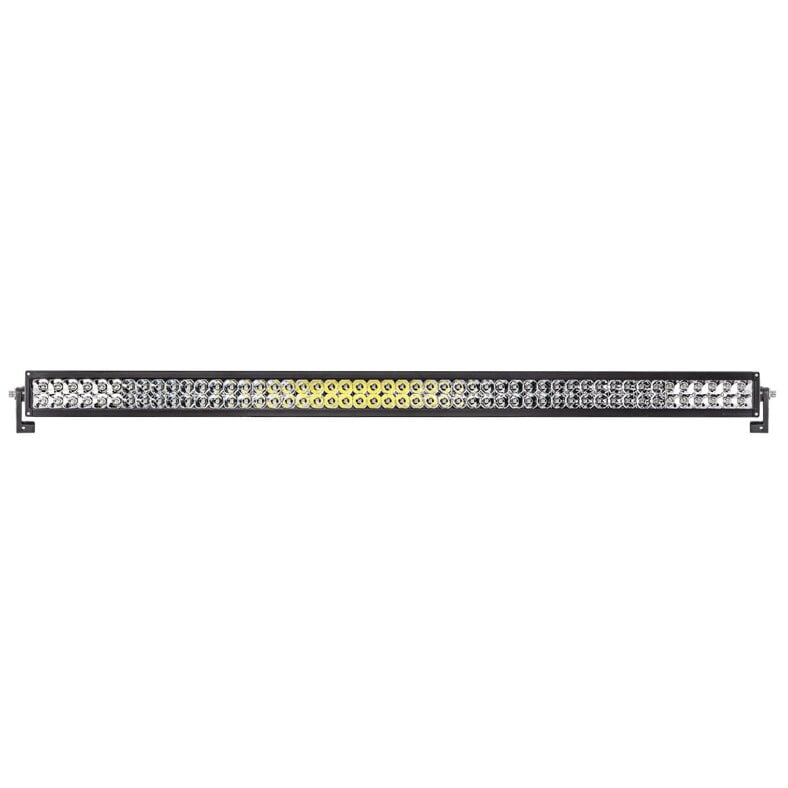

300W TRX LED Lightbar 10° + 60° EMC
The TRX series is the ideal choice for high-intensity, homogeneous illumination of off-road terrain.
Equipped with central 10° spot beams and external 60° flood beams, the Lightbar can illuminate up to 1350m at 0.25 lux.
High-quality OSRAM LED chips ensure a long service life and a constant colour temperature even after thousands of hours of operation.
Materials:
-
6063 extruded aluminum heat sink made of aluminum
- Efficient polycarbonate (PC) lens refractors
- Front windscreen made of Lexan polycarbonate (PC)
- Zinc alloy holder
- Powder coating made of anodized polyester
Protected against:
-
Reversal of polarity
- Shockproof, waterproof and UV-protected
- RFI/EMC interference
- Voltage and current surges
Operating conditions:
- 9-30V DC input
- Ambient temperature -40~+60 ° C
Features:
-
PWM Thermal Management Regulation
- 50.000+ hours lifetime
- Optical combined point and floodlight system
- Immediately on/off
-
Certification for electromagnetic compatibility
- Range: 1350m(0.25Lx)
| Technical Data |
|
| Input voltage |
|
9-30V |
|
| Light source |
|
100x 3W OSRAM LED Chips |
|
| Power input |
|
300W |
|
| Raw lumens |
|
21.000lm |
|
| Light spread |
|
Spot 10° + Flood 60° |
|
| Light intensity |
|
Spot 569.000cd, Flut 179.000cd |
|
| Protection class |
|
IP68 |
|
| Lens |
|
break-resistant polycarbonate |
|
| Housing |
|
die-cast aluminium ADC12 |
|
| Mounting |
|
standing|hanging |
|
| Connection |
|
Deutsch-plug |
|
| Weight |
|
n.a. |
|
| Dimensions |
|
1275.0 x 89.0 x 82.0 mm |
|
| Homologation |
|
ECE 10R |
|
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Shipping weight: |
7,20 kg
|
| Item weight: |
6,95 kg
|
There are no reviews yet.
