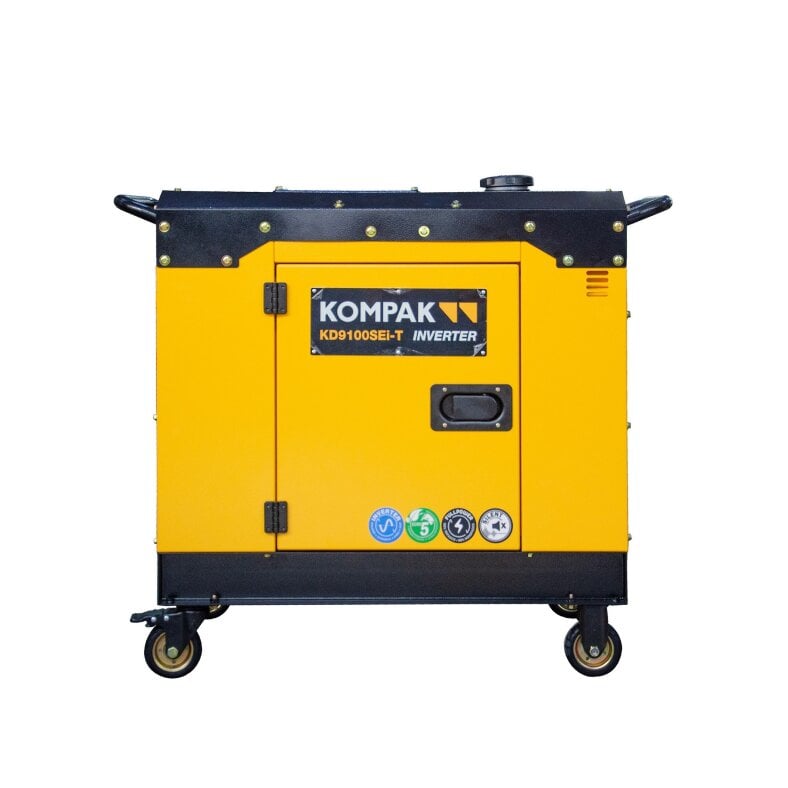

KOMPAK PREMIUM KD9100SEi-T – 8.1 kVA Full Power Diesel Inverter Generator
The KOMPAK PREMIUM KD9100SEi-T combines the robust characteristics of a diesel generator with modern inverter technology and flexible 230 V / 400 V operation.
With up to 6.5 kW at 230 V and 8.1 kVA at 400 V, combined with rated outputs of 6.0 kW / 7.6 kVA, it is designed for users who require not only strong output but also controlled electrical power quality and flexible application options.
This makes the KD9100SEi-T suitable for commercial use, construction sites, workshops, home and standby power, mobile applications and sensitive electrical equipment.
Diesel and Inverter Technology Combined
The KOMPAK PREMIUM range is designed for users who deliberately choose professional equipment and long-term flexibility.
- diesel engine technology
- inverter power generation
- Full Power 230 V / 400 V
- PMG regulation
- electric start
- ATS compatibility
- DC30 digital monitoring
- sound-insulated enclosure
Inverter Technology for Stable Electrical Power
An inverter generator electronically processes the generated electrical energy before supplying connected equipment.
This enables more precise control of voltage and frequency and makes the generator particularly suitable for applications where stable electrical output is important.
Full Power – Flexible 230 V and 400 V Operation
-
230 V maximum output: 6.5 kW
-
230 V rated output: 6.0 kW
-
400 V maximum output: 8.1 kVA
-
400 V rated output: 7.6 kVA
This allows the generator to be used for both powerful single-phase loads and suitable three-phase applications.
D500Ei Diesel Engine – 498 cc and 11 HP
The KD9100SEi-T is powered by a D500Ei diesel engine with 498 cc displacement and 11 HP.
The diesel configuration provides a robust technical foundation for extended operating periods and demanding professional applications.
PMG Regulation and ALT7-3 Alternator
The generator uses an ALT7-3 alternator with PMG regulation, providing a strong technical basis for controlled and stable electrical output.
15-Litre Fuel Tank – Up to 7.8 Hours Runtime
The integrated 15-litre diesel tank provides up to approximately 7.8 hours of runtime at 75% load according to the manufacturer.
Efficient Load-Dependent Operation
Modern inverter technology can adapt engine operation to changing electrical demand.
This can help reduce fuel consumption, noise and mechanical stress during partial-load operation.
Electric Start and ATS Compatibility
The KD9100SEi-T features electric start and an ATS interface, allowing integration into a suitably designed automatic standby-power system.
Any connection to a building electrical installation or automatic transfer system must be designed and installed by a suitably qualified electrician.
DC30 Digital Display
The integrated DC30 display allows monitoring of key operating parameters such as voltage, frequency and operating hours.
Sound-Insulated Design
The generator is housed in a sound-insulated enclosure, with a specified sound pressure level of approximately 72 dB(A) at 7 metres.
KOMPAK PREMIUM KD9100SEi-T Technical Specifications
| Product line |
KOMPAK PREMIUM |
| Model |
KD9100SEi-T |
| Type |
Sound-insulated diesel inverter generator |
| Technology |
Inverter / Full Power |
| Voltage |
230 V / 400 V |
| Frequency |
50 Hz |
| Maximum output 230 V |
6.5 kW |
| Rated output 230 V |
6.0 kW |
| Maximum output 400 V |
8.1 kVA |
| Rated output 400 V |
7.6 kVA |
| Rated current |
26.1 A / 11.0 A |
| Alternator |
ALT7-3 |
| Alternator output |
7 kW |
| Voltage regulation |
PMG / Inverter |
| Power factor |
1 / 0.8 |
| Engine |
D500Ei diesel |
| Displacement |
498 cc |
| Engine output |
11 HP |
| Starting system |
Electric / ATS |
| Fuel tank |
15 l |
| Runtime at 75% load |
up to approx. 7.8 h |
| Oil capacity |
1.75 l |
| Display |
DC30 |
| Outputs |
32 A / 16 A |
| ATS |
ATS-ready |
| Sound pressure level |
approx. 72 dB(A) at 7 m |
| Dimensions |
approx. 800 × 525 × 710 mm |
| Net weight |
approx. 145 kg |
| Gross weight |
approx. 153 kg |
| EAN |
8435672797293 |
