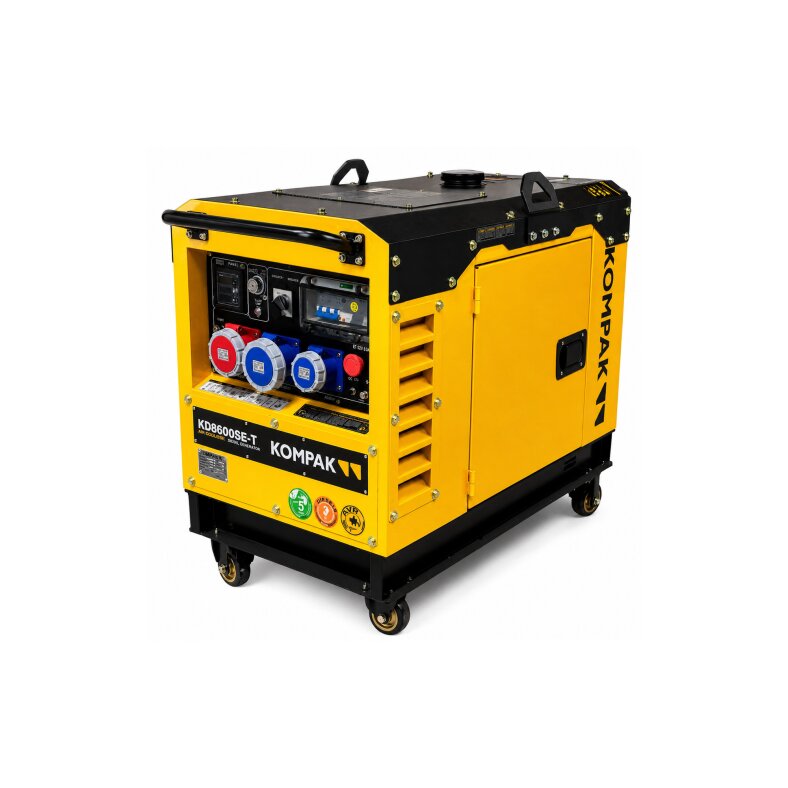

KOMPAK PREMIUM KD8600SE-T – Full Power for Professional Requirements
When reliable power supply is essential, maximum output alone is not enough. Flexibility, engine quality, voltage stability, operational reliability, noise reduction and ease of use are equally important. This is exactly what the KOMPAK PREMIUM LINE is designed to deliver.
The KOMPAK PREMIUM KD8600SE-T is a sound-insulated Full Power diesel generator with a maximum output of up to 5.7 kW / 7.9 kVA. It combines high-performance 230 V and 400 V power supply with a robust Euro 5 diesel engine, AVR voltage regulation, a 100% copper alternator winding, electric start and ATS compatibility.
The result is a generator for users who do not regard independent power as a temporary workaround, but as a professional tool and long-term investment.
The KOMPAK PREMIUM LINE – Designed for Higher Demands
The KOMPAK PREMIUM LINE comprises a range of high-performance generators in different output classes. This allows the generator to be selected specifically according to the actual power requirement while retaining the characteristic equipment and quality features of the series.
The PREMIUM positioning combines:
- professional technical equipment
- robust construction for demanding environments
- high operating comfort
- stable voltage supply through AVR
- high-quality alternator design with 100% copper winding
- integrated protection and monitoring functions
- practical solutions for transport, operation and backup power use
The KOMPAK PREMIUM LINE is therefore particularly suitable for users for whom inadequate output, insufficient flexibility or unreliable backup power is simply not an acceptable option.
Full Power – a Major Advantage for 230 V and 400 V
One of the key features of the KD8600SE-T is its Full Power technology.
With many conventional 400 V generators, only a limited portion of the total alternator output is available on a single 230 V phase. In practical use, this can quickly become a limitation.
The KD8600SE-T, by contrast, allows the user to select between 230 V single-phase and 400 V three-phase operation. This makes the generator significantly more adaptable to different types of electrical equipment.
-
230 V: up to 5.7 kW maximum output
-
230 V: 5.4 kW rated output
-
400 V: up to 7.9 kVA maximum output
-
400 V: 7.5 kVA rated output
This flexibility is especially valuable for users whose power requirements may evolve over time. Instead of committing to a purely single-phase or three-phase generator, the KD8600SE-T offers a significantly broader range of possible applications.
D500E Euro 5 Diesel Engine – 498 cc and 12 HP
The generator is powered by the robust D500E 4-stroke diesel engine with 498 cc displacement and 12 HP. The air-cooled single-cylinder engine complies with the manufacturer's stated Euro 5 requirements and is designed for demanding power-generation applications.
For commercial and regular use, engine quality is a critical factor. Where a generator is used as a reliable working tool rather than only occasionally, durability and consistent power delivery become particularly important.
100% Copper Winding – High-Quality Alternator Design
The alternator of the KD8600SE-T features a 100% copper winding. Especially in high-performance generators, the material quality of the alternator is an important technical feature.
In combination with electronic AVR regulation, the copper winding provides a high-quality technical foundation for reliable and consistent power generation.
AVR Voltage Regulation for Stable Output
The integrated AVR – Automatic Voltage Regulation continuously monitors and regulates the generator's output voltage.
Voltage fluctuations are reduced when electrical loads change, providing a more controlled supply than basic generators without automatic voltage regulation.
For the user, this means greater confidence when operating suitable electrical equipment within the generator's specified technical limits.
Professional IP67-Protected Control Panel
Another characteristic feature of the PREMIUM specification is the IP67-protected control panel. It is designed for demanding operating environments and provides increased protection against dust and water.
On construction sites, farms and mobile work locations, this level of protection is not merely a convenience but an important aspect of practical generator design.
LED6 Digital Display – Key Operating Data at a Glance
The integrated LED6 digital display provides centralized monitoring of important operating information.
This simplifies generator supervision during use and allows the operator to assess the current operating condition quickly and conveniently.
Electric Start and Cold-Start Preheating
The KD8600SE-T is started conveniently using an electric starter. An additional preheating system supports diesel engine starting at lower ambient temperatures.
This is another example of the PREMIUM LINE philosophy: a professional generator should not only provide high output, but also remain straightforward and convenient in everyday operation.
Sound-Insulated Enclosure – High Performance with Reduced Noise
The fully enclosed sound-insulated housing significantly reduces operating noise compared with conventional open-frame diesel generators.
The manufacturer specifies a sound pressure level of approximately 72 dB(A) at a distance of 7 metres.
This makes the KD8600SE-T particularly attractive for commercial premises, properties, temporary installations and working environments where high power is required but noise exposure should be kept under better control.
13-Litre Fuel Tank – Up to Approx. 7 Hours Runtime
The integrated diesel tank has a capacity of 13 litres. According to the manufacturer's specifications, this provides up to approximately 7 hours of runtime at 75% load.
Longer operating periods between refuelling help reduce interruptions, which can become a significant advantage during extended work sessions.
ATS-Ready – for Professional Standby Power Solutions
The KOMPAK PREMIUM KD8600SE-T features an ATS connection and can therefore be integrated into a professional standby-power system when combined with a suitable automatic transfer solution.
With a correctly designed installation, an ATS system can detect a mains power failure, start the generator and transfer selected loads to backup power.
Any connection to a building installation, standby-power system or automatic transfer arrangement must be planned and carried out by a suitably qualified electrician.
Integrated Protection Functions for Controlled Operation
The professional overall concept includes a range of protection and monitoring systems:
- Overload protection
- Low-oil alarm
- Circuit protection
- AVR voltage regulation
- Cold-start preheating
- IP67-protected control panel
These features contribute to controlled and reliable operation even under demanding working conditions.
Designed for Mobile Use
Despite its professional construction, the KD8600SE-T remains transportable. Robust puncture-resistant wheels, an integrated transport handle and a reinforced chassis make it easier to move the generator around the job site.
This makes the unit suitable not only for fixed installations but also for changing construction sites, agricultural use and mobile service applications.
KOMPAK PREMIUM KD8600SE-T Technical Specifications
| Product line |
KOMPAK PREMIUM LINE |
| Model |
KD8600SE-T |
| Generator type |
Full Power diesel generator |
| Voltage |
230 V / 400 V |
| Frequency |
50 Hz |
| Rated output |
5.4 kW / 7.5 kVA |
| Maximum output |
5.7 kW / 7.9 kVA |
| Rated current |
23.5 A / 10.8 A |
| Maximum current |
25 A / 11.4 A |
| Alternator winding |
100% copper |
| Voltage regulation |
AVR |
| Engine |
D500E 4-stroke diesel |
| Displacement |
498 cc |
| Engine power |
12 HP |
| Emission standard |
Euro 5 |
| Starting system |
Electric start |
| Cold start |
Preheating system |
| Fuel tank |
13 l |
| Runtime at 75% load |
up to approx. 7 h |
| Display |
LED6 |
| Control panel |
IP67 |
| 400 V output |
16 A |
| 230 V output |
32 A |
| ATS |
ATS-ready |
| Sound pressure level |
approx. 72 dB(A) at 7 m |
Who Is the KOMPAK PREMIUM KD8600SE-T Designed For?
- Trade and commercial businesses
- Construction and installation companies
- Agriculture and forestry
- Workshops and technical facilities
- Operators of pumps, machines and technical equipment
- Mobile service and field applications
- Private and commercial standby-power solutions
- Users operating both 230 V and 400 V equipment
A Purchase Decision with Capacity for Future Requirements
A generator is often purchased for many years of service. It therefore makes sense not to consider only the minimum requirement of today, but also possible future applications.
The KOMPAK PREMIUM KD8600SE-T combines powerful 230 V and 400 V supply with Full Power technology and comprehensive professional equipment. This provides valuable flexibility and reduces the risk of having to replace the generator prematurely when requirements change.
For users selecting a generator not just for the next job but as a long-term and versatile working tool, the KD8600SE-T offers a particularly convincing combination of performance, flexibility and equipment.
Which KOMPAK PREMIUM Generator Is Right for Your Requirements?
The KOMPAK PREMIUM LINE is available in different output classes. The correct selection depends not only on the rated power of the connected equipment, but also on starting currents, operating voltage, simultaneous loads and desired reserve capacity.
If you are unsure about the correct generator size, provide us with the technical specifications of your equipment. This allows the most suitable model within the KOMPAK PREMIUM LINE to be assessed before purchase.
