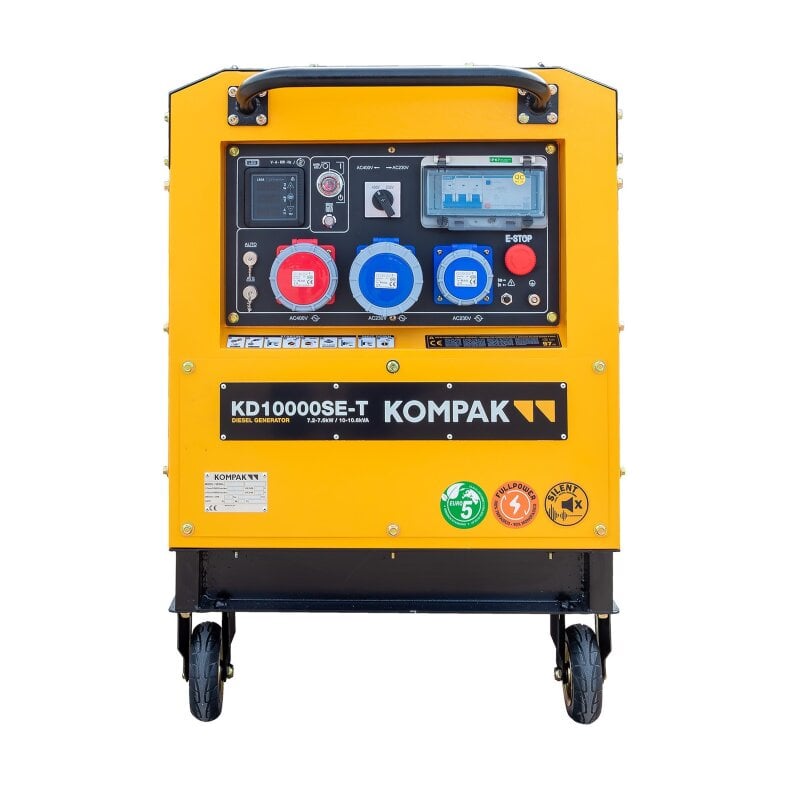

KOMPAK PREMIUM KD10000SE-T – 10.6 kVA Full Power for Professional Applications
In professional power generation, maximum output is only one part of the equation. Usable power reserves, flexible voltage selection, robust engineering, stable output, long operating times and practical everyday usability are equally important.
The KOMPAK PREMIUM KD10000SE-T has been designed around exactly these requirements. This sound-insulated Full Power diesel generator delivers up to 7.6 kW at 230 V or 10.6 kVA at 400 V and combines this performance with a powerful D680E diesel engine, AVR regulation, a 100% copper-wound alternator, electric starting, ATS compatibility and a professional control system.
The result is more than simply a temporary source of electricity. It is a professional working tool for users who plan ahead and value sufficient capacity for future requirements.
KOMPAK PREMIUM LINE – Professional Engineering for Demanding Applications
The KOMPAK PREMIUM LINE comprises high-performance generators across different output classes. This allows users to select the most appropriate generator for their specific requirements while retaining the principal quality and equipment features of the series.
The PREMIUM LINE combines:
- professionally dimensioned power reserves
- robust engine and generator technology
- high-quality 100% copper alternator winding
- AVR automatic voltage regulation
- convenient electric starting
- digital operating monitoring
- ATS compatibility for standby-power applications
- IP67-protected control panel
- sound-insulated construction
- practical transport and maintenance solutions
For professional users, this provides greater confidence when selecting a generator: instead of merely covering today's minimum requirement, the PREMIUM LINE offers a solid technical basis for versatile long-term use.
Full Power – Maximum Flexibility Between 230 V and 400 V
One of the key technical features of the KOMPAK KD10000SE-T is its Full Power technology.
With many conventional three-phase generators, the usable output available to a single 230 V load is significantly lower than the generator's overall capacity. This can quickly become a limitation when operating powerful single-phase equipment.
The KD10000SE-T provides powerful operation for both 230 V single-phase and 400 V three-phase applications:
-
230 V maximum output: 7.6 kW
-
230 V rated output: 7.2 kW
-
400 V maximum output: 10.6 kVA
-
400 V rated output: 10.0 kVA
This gives a single generator an exceptionally broad range of applications – from powerful 230 V electrical tools and pumps to suitable 400 V three-phase machinery.
When power requirements change over time, this flexibility becomes particularly valuable. You are not simply purchasing the capacity required today, but retaining additional options for future applications.
D680E Euro 5 Diesel Engine – 678 cc and 14.4 HP
The KD10000SE-T is powered by a robust D680E 4-stroke diesel engine with 678 cc displacement and 14.4 HP.
The engine operates at 3,000 rpm and is specifically suited to professional generator applications. According to the manufacturer's specifications, the engine complies with Euro 5 emission requirements.
For regular and extended generator operation, engine quality is crucial. The KD10000SE-T is therefore aimed at users who depend on their generator as an everyday working tool rather than an occasional emergency solution.
100% Copper-Wound Alternator – a Relevant Quality Feature
The KOMPAK PREMIUM KD10000SE-T features an alternator with a 100% copper winding.
In high-performance generating sets, alternator construction is an important technical quality factor. Together with AVR voltage regulation, the copper winding provides a robust foundation for controlled and dependable power generation.
AVR – Automatic Voltage Regulation
The integrated AVR – Automatic Voltage Regulation continuously controls the generator's output voltage.
As connected loads change, the AVR system helps reduce voltage fluctuations, providing a more controlled supply than basic generators without automatic voltage regulation.
This is especially relevant when different types of equipment are powered and a stable supply voltage is important.
25-Litre Diesel Tank – Up to 10 Hours of Runtime
With its generous 25-litre fuel tank, the KD10000SE-T is designed for extended working periods.
According to the manufacturer, the generator provides up to approximately 10 hours of runtime at 75% load, with fuel consumption of around 2.5 litres per hour at this load level.
For professional users, a larger tank means fewer interruptions and more productive operating time – particularly valuable on construction sites, in agriculture or during longer mains power failures.
Sound-Insulated – Approx. 72 dB(A) at 7 Metres
High generator performance does not necessarily require a conventional open-frame design. The KD10000SE-T uses a fully enclosed sound-insulated housing.
The manufacturer specifies a sound pressure level of approximately 72 dB(A) at a distance of 7 metres.
This makes the generator suitable for applications where operating noise needs to be considered alongside performance, including commercial properties, agricultural environments, temporary installations and standby-power systems.
IP67-Protected Control Panel
The professional control panel is protected to IP67 and designed for more demanding operating environments.
On construction sites, farms and outdoor work locations, increased protection against dust and water makes an important contribution to practical everyday usability.
LED6 Digital Display – Important Operating Data at a Glance
The integrated LED6 digital display provides convenient monitoring of key generator parameters.
Displayed information includes:
- Power
- Voltage
- Current
- Frequency
- Operating hours
This gives the operator a clear overview of important generator data during use.
Electric Start and Cold-Start Preheating
The diesel engine is started conveniently by electric starter, with a starter battery included with the generator.
An integrated cold-start preheating system additionally supports reliable diesel-engine starting at lower ambient temperatures.
ATS-Ready – an Excellent Basis for Automatic Backup Power
The KD10000SE-T incorporates an ATS interface.
When combined with a compatible Automatic Transfer Switch, the generator can form part of an automated standby-power system. A correctly designed installation can detect a mains failure, start the generator and transfer selected circuits to backup power.
When utility power returns, the installation can transfer the load back to the mains supply.
Important: Connection, sizing and installation of any building supply or mains transfer system must be carried out by a suitably qualified electrician.
Integrated Protection for Reliable Operation
Professional equipment includes a comprehensive range of safety and monitoring functions:
- Low-oil protection / alarm
- Overload protection
- Circuit protection
- AVR voltage regulation
- Cold-start preheating
- IP67 control panel
These systems support controlled operation and help protect against potentially critical operating conditions.
Three Powerful AC Connections
- 1 × CEE 230 V / 16 A
- 1 × CEE 230 V / 32 A
- 1 × CEE 400 V / 16 A
- 1 × ATS interface
This allows the generator to supply conventional 230 V equipment, high-power single-phase loads and suitable three-phase machinery.
Robust Construction and Practical Transport
With a net weight of approximately 225 kg, the KD10000SE-T clearly belongs to the professional performance class. Nevertheless, the generator has been designed to remain practical to move around the working environment.
Robust puncture-resistant wheels, an integrated transport handle and suitable lifting points facilitate handling and positioning, while the reinforced chassis provides the stability expected in demanding professional applications.
Maintenance-Friendly Design
A professional generator should not only perform well during operation. Straightforward access for maintenance is equally important.
Large service panels provide access to the engine, alternator and important service points, making regular inspection and maintenance more efficient.
KOMPAK PREMIUM KD10000SE-T Technical Specifications
| Product line |
KOMPAK PREMIUM LINE |
| Model |
KD10000SE-T |
| Type |
Sound-insulated Full Power diesel generator |
| Voltage |
230 V / 400 V |
| Frequency |
50 Hz |
| Maximum output 230 V |
7.6 kW |
| Rated output 230 V |
7.2 kW |
| Maximum output 400 V |
10.6 kVA |
| Rated output 400 V |
10.0 kVA |
| Rated current |
31.3 A / 14.4 A |
| Alternator winding |
100% copper |
| Alternator |
ALT8-T |
| Voltage regulation |
AVR |
| Engine |
D680E 4-stroke diesel |
| Displacement |
678 cc |
| Engine output |
14.4 HP |
| Engine speed |
3,000 rpm |
| Emission standard |
Euro 5 |
| Starting system |
Electric start |
| Cold start |
Preheating system |
| Fuel tank |
25 l |
| Fuel consumption at 75% load |
approx. 2.5 l/h |
| Runtime at 75% load |
up to approx. 10 h |
| Oil capacity |
2.4 l |
| Display |
LED6 |
| Control panel |
IP67 |
| 230 V outlets |
CEE 16 A + CEE 32 A |
| 400 V outlet |
CEE 16 A |
| ATS |
ATS interface |
| Sound pressure level |
approx. 72 dB(A) at 7 m |
| Dimensions |
approx. 1,080 × 570 × 690 mm |
| Net weight |
approx. 225 kg |
| EAN |
8435672797224 |
Typical Applications
- Professional construction sites
- Trade and commercial businesses
- Agriculture and forestry
- Workshops and technical facilities
- Pumps and machinery
- Mobile service applications
- Temporary power supply
- Private and commercial standby-power systems
- High-power 230 V equipment
- 400 V three-phase equipment
More Power Reserve – an Investment with the Future in Mind
When selecting a generator, today's minimum requirement should not be the only consideration. Additional machinery, new electrical equipment or future use as a standby generator can significantly increase the required capacity.
With up to 7.6 kW at 230 V and 10.6 kVA at 400 V, the KD10000SE-T provides substantial reserve capacity while remaining exceptionally flexible thanks to Full Power technology.
Choosing sufficient reserve capacity today may help avoid the need to replace the generator with a larger model tomorrow. Particularly for commercial users, appropriate power reserves can therefore be more economical in the long term than a generator sized purely around today's minimum requirement.
Which KOMPAK PREMIUM Generator Is Right for You?
The KD10000SE-T forms part of a graduated KOMPAK PREMIUM generator range, allowing generator capacity to be selected according to the actual application.
Important considerations include not only continuous power but also starting current, operating voltage, the number of simultaneous loads and the desired reserve capacity.
If you are unsure which model is appropriate, simply provide us with the technical specifications of your equipment. We can help you identify the suitably sized generator within the KOMPAK PREMIUM LINE.
