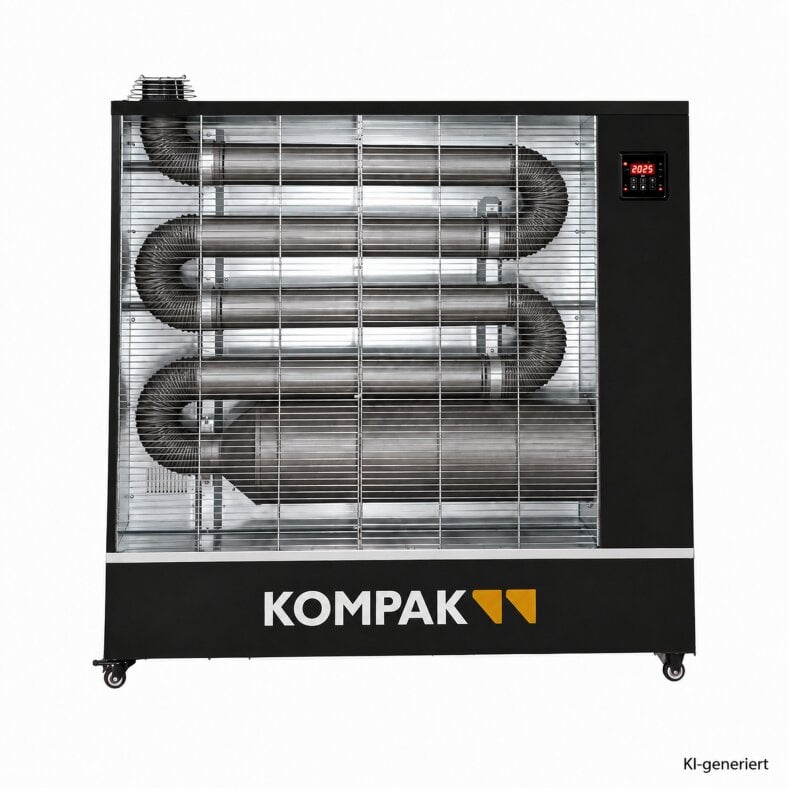

KOMPAK KPDH29 – 29 kW Diesel Infrared Heater for Large Workshops, Warehouses and Commercial Spaces
The KOMPAK KPDH29 is a high-performance 29 kW diesel infrared heater designed for large spaces and demanding professional applications. With a specified coverage of up to approximately 3,000 m³, it is particularly suitable for workshops, warehouses, industrial buildings, commercial premises, event areas and other high-volume spaces.
Unlike conventional forced-air heaters, the KPDH29 uses infrared heat transfer. Infrared energy primarily heats surfaces, objects and people rather than only warming the surrounding air, making this technology particularly useful in large or poorly insulated environments.
29 kW Heating Output for Large Spaces
With 29 kW of heating output, the KOMPAK KPDH29 is designed for larger working environments.
The manufacturer specifies suitability for spaces up to approximately 3,000 m³. Actual heating performance depends on factors such as insulation, outside temperature, air exchange, room height and desired indoor temperature.
Infrared Heat – Direct and Efficient Heat Transfer
Infrared technology transfers heat directly to surfaces and people in the heated area.
Typical applications include:
- workshops
- warehouses
- industrial facilities
- construction sites
- agricultural buildings
- garages
- event areas
- large working spaces
Large 70-Litre Diesel Tank
The integrated fuel tank has a capacity of 70 litres.
Specified fuel consumption is approximately 2.37 to 2.84 litres per hour, providing substantial fuel capacity for extended heating periods.
Digital Touch Control Panel
The heater is operated using a modern digital touch control panel, providing convenient and straightforward control.
A remote control is also included, allowing important functions to be operated from a short distance.
App Function
The KPDH29 is also advertised by the supplier with app functionality.
Available functions and system requirements should be confirmed using the current operating documentation supplied with the unit.
Only 80 W Electrical Consumption
The unit requires approximately 80 W of electrical power for control and operation, while the primary heating energy is provided by the diesel fuel.
Approx. 48 dB Noise Level
The specified operating noise level is approximately 48 dB, allowing high heating output with comparatively low operating noise.
Integrated Overheat Protection
An integrated overheat protection system supports safe operation during extended heating periods.
Mobile Design with Integrated Wheels
With a weight of approximately 79.5 kg, the KPDH29 belongs to the professional performance class.
Integrated wheels make it easier to move and reposition the heater around workshops, warehouses and commercial premises.
Exhaust Pipe System Included
The supplied exhaust kit uses a 100 mm diameter pipe system.
- 1 × 100 mm exhaust pipe, 900 mm long
- 1 × 100 mm extension pipe, 1,000 mm long
- 1 × 100 mm elbow pipe
Important: Indoor operation requires adequate ventilation or proper routing of exhaust gases outdoors.
Biodiesel / HVO
The KPDH29 is marketed by the supplier as suitable for biodiesel / HVO.
As the currently published technical specifications do not provide a more detailed fuel standard, the approved fuel specification should be confirmed using the current manufacturer documentation before alternative diesel fuels are used.
KOMPAK KPDH29 Technical Specifications
| Brand |
KOMPAK |
| Model |
KPDH29 |
| Type |
Diesel infrared heater |
| Heating output |
29 kW |
| Suitable for |
up to approx. 3,000 m³ |
| Fuel |
Diesel |
| Fuel tank |
70 l |
| Fuel consumption |
approx. 2.37–2.84 l/h |
| Electrical consumption |
80 W |
| Noise level |
approx. 48 dB |
| Control |
Digital touch panel |
| Remote control |
Yes |
| App function |
According to supplier information |
| Overheat protection |
Yes |
| Mobility |
Integrated wheels |
| Exhaust diameter |
100 mm |
| Dimensions |
approx. 1,350 × 380 × 1,384 mm |
| Weight |
approx. 79.5 kg |
Scope of Delivery
- 1 × KOMPAK KPDH29 diesel infrared heater
- 1 × remote control
- 1 × operating manual
- 1 × 100 mm exhaust pipe, 900 mm
- 1 × 100 mm exhaust extension, 1,000 mm
- 1 × 100 mm elbow pipe
Who Is the KOMPAK KPDH29 Designed For?
The KPDH29 is particularly suited to users who need to heat large areas and value high heating output, long operating periods, mobility and convenient operation.
Its combination of 29 kW heating output, 70-litre fuel tank, remote control, digital control panel and included exhaust system makes it a strong choice for demanding professional environments.
KOMPAK KPDH29 – High-Capacity Mobile Heating for Large Spaces
With 29 kW heating output, coverage of up to approximately 3,000 m³, a 70-litre fuel tank and complete exhaust system, the KOMPAK KPDH29 provides a powerful and flexible heating solution for large spaces and professional applications.
