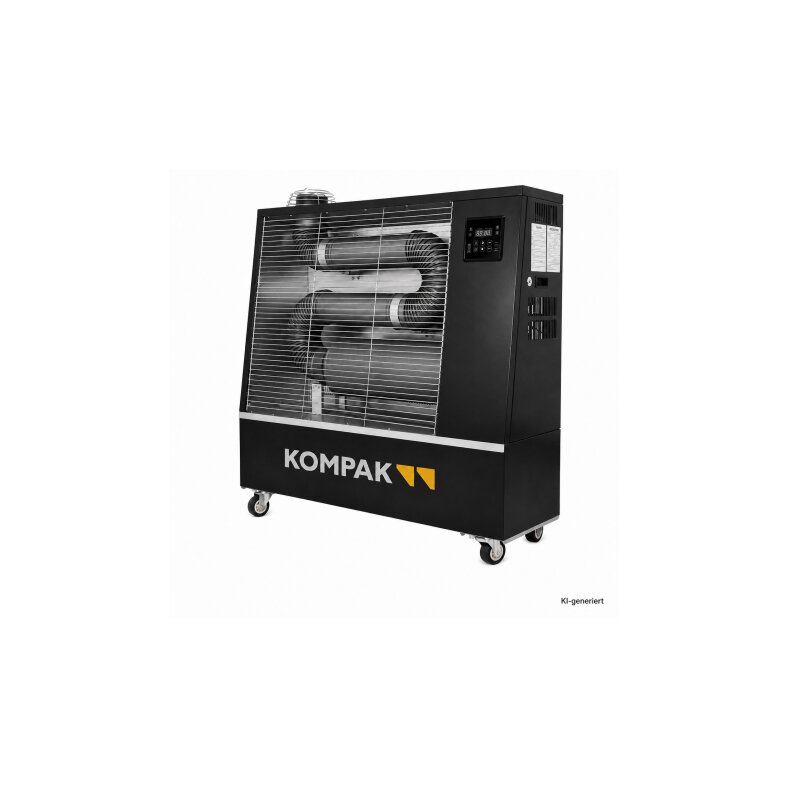

KOMPAK KPDH13 – 13 kW Diesel Infrared Heater for Workshops, Warehouses and Commercial Use
The KOMPAK KPDH13 is a mobile 13 kW diesel infrared heater designed for professional and commercial applications. With a specified coverage of up to approximately 1,300 m³, it is particularly suitable for workshops, warehouses, event areas, agricultural buildings and other medium-sized spaces.
Infrared heating transfers heat directly to surfaces, objects and people rather than relying solely on heating the surrounding air. This can be particularly useful in larger or less well insulated areas.
13 kW Heating Output
With 13 kW heating output, the KPDH13 provides a powerful yet more compact alternative to the larger KPDH29.
The supplier specifies suitability for spaces up to approximately 1,300 m³. Actual performance depends on insulation, ambient temperature, air exchange and room height.
50-Litre Diesel Tank
The integrated fuel tank provides 50 litres of capacity.
Fuel consumption is specified at approximately 0.95–1.14 litres per hour, offering substantial operating time between refuelling stops.
Digital Touch Control and Remote
The unit is controlled through a digital touch panel and is supplied with a remote control for convenient operation.
App Function
The KPDH13 is also advertised with app functionality. Detailed app features and system requirements should be confirmed using the current manufacturer documentation.
Low Operating Noise
The specified operating noise level is approximately 45 dB. The supplier also highlights an integrated silencer.
Only 80 W Electrical Consumption
The electrical power requirement is just 80 W, while the primary heating energy is supplied by the diesel fuel.
Overheat Protection
An integrated overheat protection system supports safe operation during extended heating periods.
Mobile Design
At approximately 45 kg, the KPDH13 remains relatively easy to move for its performance class. Integrated wheels simplify repositioning within workshops, warehouses and work areas.
Exhaust Pipe Kit Included
- 1 × 100 mm exhaust pipe, 900 mm long
- 1 × 100 mm extension pipe, 1,000 mm long
- 1 × 100 mm elbow pipe
Important: Indoor operation requires sufficient ventilation or proper routing of exhaust gases outdoors.
KOMPAK KPDH13 Technical Specifications
| Brand |
KOMPAK |
| Model |
KPDH13 |
| Type |
Diesel infrared heater |
| Heating output |
13 kW |
| Suitable for |
up to approx. 1,300 m³ |
| Fuel |
Diesel |
| Fuel tank |
50 l |
| Fuel consumption |
approx. 0.95–1.14 l/h |
| Electrical consumption |
80 W |
| Noise level |
approx. 45 dB |
| Control |
Digital touch panel |
| Remote control |
Yes |
| Overheat protection |
Yes |
| Mobility |
Integrated wheels |
| Exhaust diameter |
100 mm |
| Dimensions |
approx. 950 × 305 × 925 mm |
| Weight |
approx. 45 kg |
