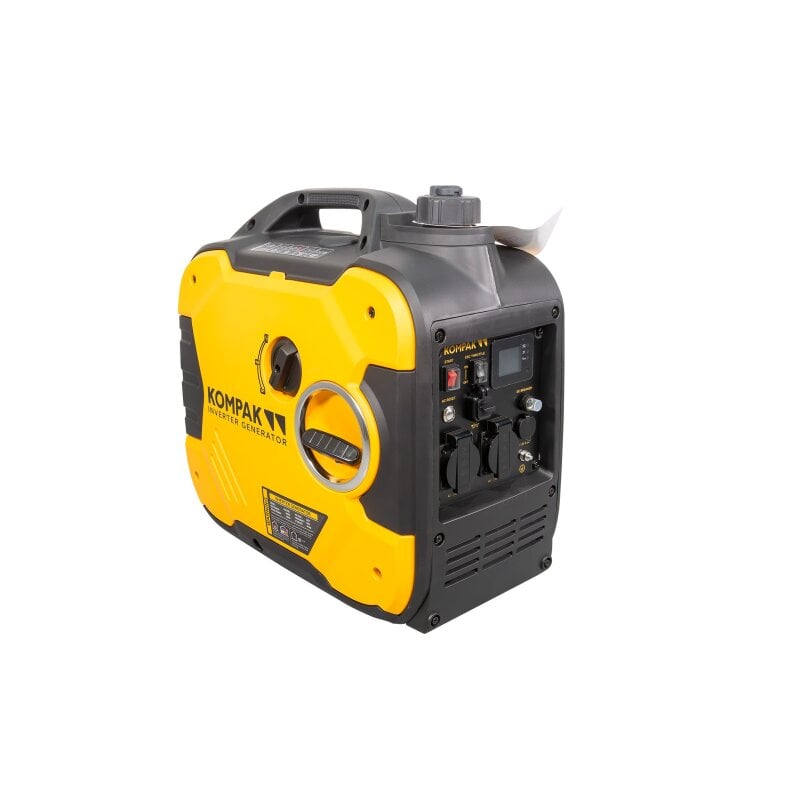

KOMPAK KGG35Ei – 3.4 kW Petrol Inverter Generator for Mobile Power
The KOMPAK KGG35Ei is a compact and portable petrol inverter generator designed for users who require low weight, flexible operation and modern voltage regulation.
With a maximum output of 3.4 kW and a rated output of 3.2 kW at 230 V, the KGG35Ei provides sufficient power reserves for a wide range of leisure, commercial and mobile applications.
The combination of inverter technology, automatic load-dependent engine speed, electric start and a dry weight of only 22 kg makes this generator particularly easy to transport and highly versatile in use.
Inverter Technology for Controlled Power Supply
The KGG35Ei uses modern inverter voltage regulation. The generated electrical energy is electronically processed and stabilised before being supplied to connected equipment.
This makes the generator particularly suitable for applications where a controlled and stable power supply is required, for example:
- computers and IT equipment
- televisions
- battery chargers
- refrigerators and freezers
- heating controls
- small power tools
- camping and leisure equipment
3.4 kW Maximum Output and 3.2 kW Rated Output
The KGG35Ei provides:
-
Maximum output: 3.4 kW
-
Rated output: 3.2 kW
-
Voltage: 230 V
-
Frequency: 50 Hz
This output range covers a broad spectrum of typical single-phase electrical consumers.
GK150ViE 4-Stroke Petrol Engine with 149.3 cc
The generator is powered by the GK150ViE 4-stroke petrol engine with 149.3 cc displacement and 5 HP.
The air-cooled engine is designed for mobile generator operation and works with an automatically controlled, load-dependent engine speed.
Automatic Load-Dependent Engine Speed
The inverter control system automatically adjusts engine speed to the current electrical load.
During partial-load operation, this can help:
- reduce fuel consumption
- reduce operating noise
- reduce mechanical engine load
- improve operating efficiency
Actual fuel savings depend on the connected load and operating conditions.
Electric Start and Recoil Starter
The KGG35Ei can be started conveniently using the electric starter. A conventional recoil starter is also provided.
This ensures that the generator remains usable even if electric starting is temporarily unavailable.
Only 22 kg – Designed for Mobile Use
With a dry weight of only 22 kg, the KGG35Ei is particularly portable for its performance class.
This makes it especially suitable for:
- camping and caravanning
- garden and leisure use
- mobile workshop applications
- events
- service vehicles
- temporary power supply
5-Litre Fuel Tank
The integrated fuel tank has a capacity of 5 litres of petrol.
Combined with the load-dependent engine speed, the KGG35Ei is designed for efficient operation under changing load conditions.
Digital Operating Display
The integrated digital display makes it easier to monitor important operating information and improves everyday usability.
Flexible Connection Options
- 2 × Schuko 230 V / 16 A
- 1 × 12 V DC / 8.3 A
- 1 × USB port
This allows the generator to supply standard 230 V equipment as well as suitable 12 V and USB devices.
Protection Functions for Everyday Operation
- low-oil shutdown
- overload protection with automatic shutdown
These functions help protect both the engine and generator during operation.
Low Operating Noise – Approx. 62 dB(A)
The specified sound pressure level is approximately 62 dB(A) at a distance of 7 metres.
Combined with the load-dependent engine speed, this makes the KGG35Ei suitable for applications where reduced operating noise is desirable.
Technical Specifications – KOMPAK KGG35Ei
| Brand |
KOMPAK |
| Model |
KGG35Ei |
| Generator type |
Petrol inverter generator |
| Phase |
Single-phase |
| Voltage |
230 V |
| Frequency |
50 Hz |
| Maximum output |
3.4 kW |
| Rated output |
3.2 kW |
| Voltage regulation |
Inverter |
| Display |
Digital |
| Engine |
GK150ViE, 4-stroke petrol |
| Displacement |
149.3 cc |
| Engine output |
5 HP |
| Cooling |
Air cooled |
| Engine speed |
Automatic / load-dependent |
| Starting system |
Electric & recoil |
| Fuel |
Petrol |
| Fuel tank |
5 l |
| Oil capacity |
0.4 l |
| 230 V outlets |
2 × Schuko 16 A |
| 12 V DC output |
8.3 A |
| USB |
1 × USB port |
| ATS |
No |
| Noise level |
approx. 62 dB(A) at 7 m |
| Dimensions |
approx. 480 × 320 × 460 mm |
| Dry weight |
22 kg |
| EAN |
8435672797972 |
Typical Applications
- camping and caravanning
- garden and leisure use
- mobile power supply
- workshops and trades
- events
- small construction sites
- backup power for selected appliances
- refrigerators and freezers
- IT and entertainment electronics
3.4 kW Inverter Power at Only 22 kg
The KGG35Ei is aimed at users who need more output than a typical small camping inverter generator while still requiring good portability.
With 3.2 kW rated output, only 22 kg dry weight, electric starting and modern inverter technology, the KOMPAK KGG35Ei provides a well-balanced combination of performance, mobility and operating convenience.
