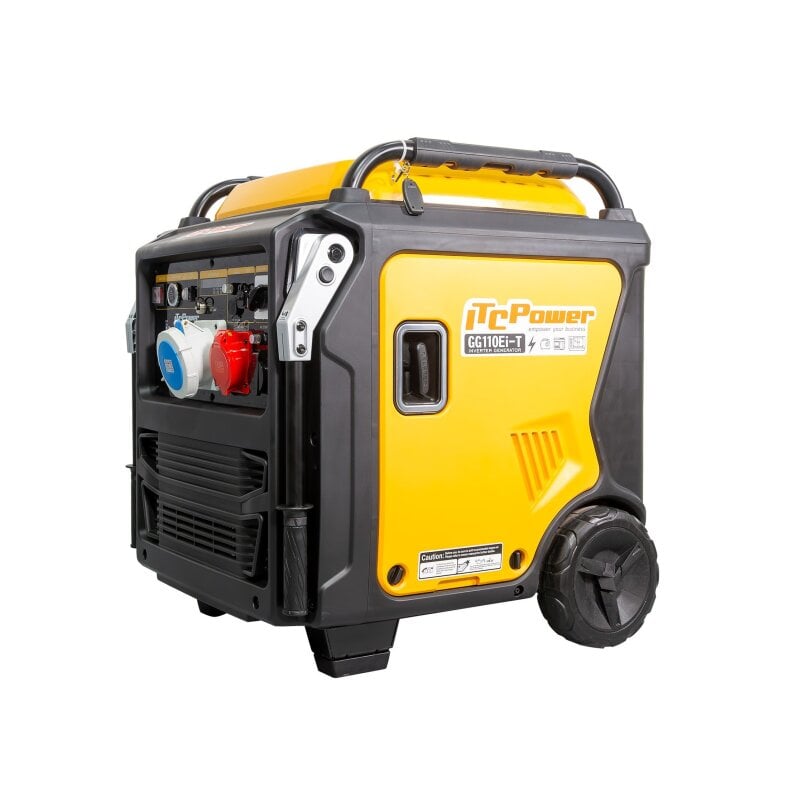

ITC Power GG110Ei-T – 230/400 V inverter petrol generator
The ITC Power GG110Ei-T combines high output with modern inverter technology. It supplies both 230 V single-phase and 400 V three-phase equipment, making it suitable for commercial applications, workshops, construction sites, events and mobile power supply.
The generator provides a maximum output of 11 kW at 230 V or 13.75 kVA at 400 V. Its continuous output is 10 kW or 12.5 kVA respectively. The continuous rating and the starting current of every connected appliance must be considered when selecting and operating the generator.
Regulated power using inverter technology
Electronic inverter regulation provides a stable power supply suitable for many electronic devices and technical systems. Compatibility must nevertheless be checked before connecting sensitive equipment.
Electric motors, pumps, compressors, welding equipment and other inductive loads can require considerably more power during start-up than during normal operation. Such equipment may only be connected if its starting current remains within the generator's permitted output range.
550 cc petrol engine with electric start
The GG110Ei-T is powered by a 550 cc GK550ViE petrol engine. Automatic, load-dependent engine-speed control adjusts the operating speed to the current power demand. Electric starting provides convenient operation, and the required starter battery is included.
The 32-litre fuel tank provides an operating time of up to 11.5 hours at 50 % load according to the product specifications. Actual running time and fuel consumption depend on the connected load, operating conditions, fuel quality and maintenance.
Digital display and protection functions
The digital 3-in-1 display shows voltage, frequency and operating hours. Electronic overload protection and low-oil monitoring with automatic shutdown help protect the engine and generator components.
Electrical connections
- 1 × 230 V PCE socket, 63 A
- 1 × 400 V PCE socket, 32 A
- 1 × 230 V safety socket, 16 A
- 1 × 12 V DC output, 8.3 A
- USB charging connection
- Grounding connection
The voltage, current rating and number of phases must be checked against the markings on the control panel before connecting any equipment.
Technical specifications
| Manufacturer |
ITC Power |
| Model |
GG110Ei-T |
| Generator type |
Single-phase and three-phase inverter generator |
| Fuel |
Petrol |
| Output voltages |
230 V / 400 V |
| Maximum output at 230 V |
11 kW |
| Continuous output at 230 V |
10 kW |
| Maximum output at 400 V |
13.75 kVA |
| Continuous output at 400 V |
12.5 kVA |
| Frequency |
50 Hz |
| Voltage regulation |
Inverter technology |
| Engine |
GK550ViE petrol engine |
| Engine displacement |
550 cc |
| Starting system |
Electric start |
| Fuel tank |
32 litres |
| Oil capacity |
1.4 litres |
| Operating time at 50 % load |
Up to 11.5 hours |
| Sound pressure level |
60 dB(A) at 7 m and 50 % load |
| Sound power level |
95.3 dB(A) LWA |
| Display |
Digital display for voltage, frequency and operating hours |
| Dimensions |
Approximately 695 × 675 × 800 mm |
| Net weight |
108 kg |
| Gross weight |
110 kg |
| EAN |
8435672798009 |
Mobile and easy to operate
Large transport wheels and folding handles make it easier to move the generator at the place of use. The enclosed housing protects the internal components and helps reduce perceived operating noise. Connections, controls and the digital display are grouped together on the front control panel.
Scope of delivery
- ITC Power GG110Ei-T inverter generator
- Starter battery
- Operating manual
Important operating and safety information
The maximum output is only available for short periods. For continuous operation, the ratings of 10 kW at 230 V and 12.5 kVA at 400 V must be used. The combined load of all connected equipment, including starting currents, must not exceed the generator's permitted output.
Warning: Petrol generators produce poisonous carbon monoxide and must only be operated outdoors, at a safe distance from doors, windows and ventilation openings. Never operate the generator in buildings, garages or other enclosed areas.
Connection to a building's electrical installation or use as a standby power supply must only be carried out by a qualified electrician using a suitable transfer switch. Never feed electricity into a building through a standard wall socket. Observe all instructions concerning grounding, ventilation, fuel handling, maintenance and electrical loads.
