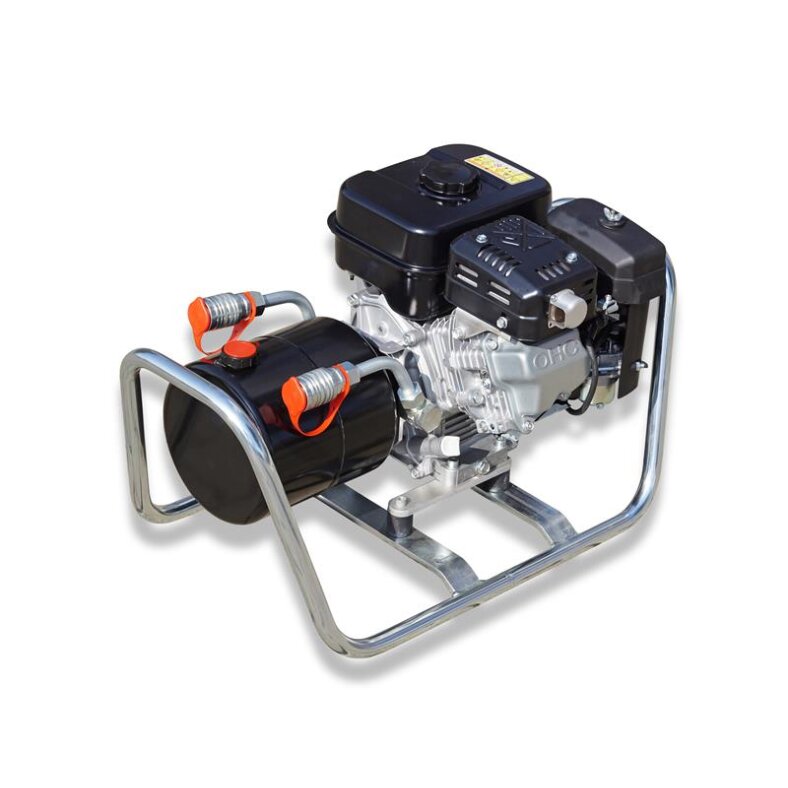

eder hydraulic power unit eha150
For the connection of log splitters Fields of application
The eder hydraulic power pack eha150 is optimized for use with our hydraulic splitting units ehg80 (eder splitting unit) and elhs80 (eder long log splitter).
It provides oil pressure and oil quantity in such a way that work with these devices can be done quickly and powerfully.
The unit is powered by an economical 4-stroke gasoline engine with an output of 4.8 kW (6.5 hp).
Integrated in the power unit is a safety valve, which limits the oil pressure to the maximum working pressure for the splitting units ehg80 and elhs80 to 150 bar.
The eder hydraulic power unit eha150 has one hydraulic connection each for supply and return, to which the hydraulic hoses of the eder splitting units can be directly connected.
The power unit is built into a carrying frame and can thus be easily transported by one or two persons with its low weight of approx. 30 kg.
But also other applications are conceivable, where an oil flow of up to 12 liters per minute and an oil pressure of 150 bar (max. 210 bar) are required.
Technical data
- Drive motor 4-stroke: 4.8 kW/6.5 hp
- Tank capacity: 3 liters of regular gasoline
- Rated speed: 3600 rpm
- Volume of feed pump: 3.6 cm³/revolution
- Hydraulic oil tank capacity: 5 liters
- Weight (without operating fluids): approx. 30 kg
- Oil pressure: max. 200 bar
- adjusted oil pressure: 150 bar
- (limited by integrated overflow valve)
- Oil flow: 12 liters/minute
