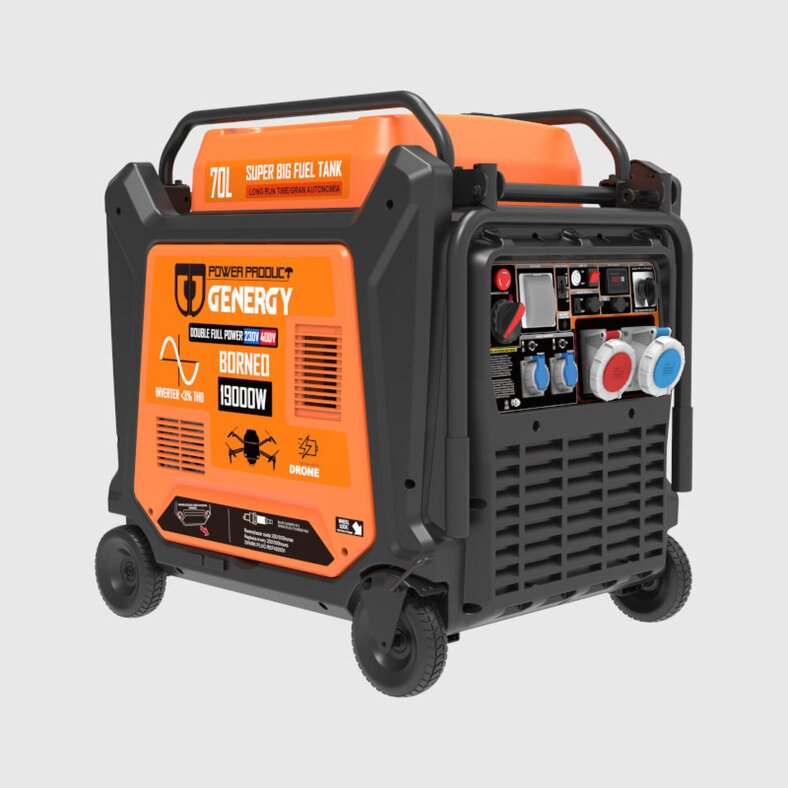

GENERGY BORNEO RC/SOL/ATS 19000W Inverter Generator 230V/400V – Agricultural Drone Generator

GENERGY BORNEO RC/SOL/ATS 19000W Inverter Generator 230V/400V – Agricultural Drone Generator

SKU: GEN-BORNEO
Category: Inverter Generator

The GENERGY BORNEO RC/SOL/ATS 19000W is a powerful inverter generator capable of delivering its specified output in either single-phase 230 V or three-phase 400 V operation. With a maximum output of 19,000 watts, a rated output of 18,000 watts, a 70-litre fuel tank, remote starting, mains-failure control and an interface for photovoltaic backup systems, it is designed for demanding commercial applications and high-power agricultural drone chargers.

5.099,95 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available immediately
Delivery time: 9 - 11 Workdays (DE - int. shipments may differ)

piece

GENERGY BORNEO RC/SOL/ATS 19000W: high-output mobile power

The GENERGY BORNEO RC/SOL/ATS 19000W combines high electrical output with flexible voltage, starting and control options. This petrol-powered inverter generator delivers up to 19,000 watts of maximum output and 18,000 watts of rated output. Its integrated voltage selector allows the operator to choose between single-phase 230 V and three-phase 400 V operation.

Unlike conventional three-phase generators whose total output may be divided across the phases, the BORNEO is specified by the manufacturer to provide its full rated output in either its 230 V or 400 V operating mode. This makes it suitable for demanding single-phase loads as well as compatible three-phase equipment.

Key features

19,000 W maximum output for up to five minutes
18,000 W rated output
full specified output in 230 V or 400 V mode
single-phase and three-phase operation
inverter voltage regulation
suitable for professional DJI Agras charging systems
recoil, electric and remote starting
dry contact for external control
ATS connection for mains-failure applications
interface for photovoltaic backup systems
load-dependent ECO mode
large 70-litre petrol tank
digital multifunction display
30 mA residual-current protection
16 A, 32 A and 64 A IP67 sockets
emergency stop and earth terminal
integrated wheel kit
GENERGY EURO V petrol engine

Professional generator for DJI Agras drones

GENERGY lists the BORNEO RC/SOL/ATS 19000W as a power solution for professional DJI Agras agricultural drones, particularly the DJI Agras T50, T70 and T100. Its high rated output and selectable 230 V or 400 V operation allow high-power agricultural drone chargers to be supplied directly in the field.

This makes the BORNEO particularly relevant to farmers, agricultural contractors and professional drone operators who need to recharge flight batteries independently of a permanent mains connection.

The exact drone, battery and charger must always be considered when selecting the required connection arrangement. The DJI C10000, for example, uses two separate single-phase inputs. The DJI C12000 is designed for a high-output three-phase supply.

Suitable cables and adapters must be selected for the charging system concerned and are only included when expressly stated in the individual offer. Seilwinden Direkt and Winch Industry GmbH can assist with assessing the technical requirements of your drone and charger.

Inverter power for demanding equipment

The BORNEO processes its electrical output through an inverter system. According to GENERGY, this provides a high-quality power supply with very low harmonic distortion. Regulated power is particularly important for modern battery chargers, electronic control systems and other demanding electrical loads.

The suitability of any connected device must nevertheless be verified against its individual voltage, frequency, power, connection and manufacturer requirements.

Full specified output at 230 V or 400 V

The integrated voltage selector determines whether the generator operates in single-phase 230 V mode or three-phase 400 V mode. The manufacturer specifies the following output in either operating mode:

Maximum output, S2 for five minutes: 19,000 W
Rated output, COP: 18,000 W
Power factor: 1
Frequency: 50 Hz

The correct operating mode must be selected before connecting any load. Switching between 230 V and 400 V modes does not mean that both supply configurations can be used simultaneously without regard to the manufacturer’s operating instructions.

RC, SOL and ATS control options

RC – Remote Control

In addition to recoil and electric starting, the BORNEO is designed for remote starting and stopping using the intended remote-control system.

SOL – Solar Support

The dry contact allows the generator to be integrated into suitably configured photovoltaic and battery-storage systems. The installation and control logic must be compatible with the inverter or energy-management system concerned.

ATS – Automatic Transfer Switch

The generator has an interface for automatic control during a mains failure. A complete automatic standby-power installation requires suitable switching equipment and a professionally designed electrical installation. External ATS equipment is only included if expressly listed in the scope of delivery.

Connections to the public mains, standby-power systems or photovoltaic installations must be designed and installed by appropriately qualified professionals in accordance with the technical documentation and applicable electrical regulations.

70-litre tank for extended operation

The large petrol tank has a capacity of 70 litres. GENERGY specifies the following consumption and operating-time figures depending on electrical load:

at 25% load: 5.2 l/h and up to 13.5 hours
at 50% load: 6.9 l/h and up to 10.2 hours
at 75% load: 8.7 l/h and up to 8 hours

Actual consumption and operating time may vary with load profile, operating conditions, temperature, altitude, fuel quality and maintenance status.

ECO mode adjusts engine speed to the connected load. GENERGY states that fuel savings of up to 30% may be achieved under suitable operating conditions.

GENERGY SGS1000PRO EURO V engine

The generator is powered by an air-cooled GENERGY SGS1000PRO 999 cc four-stroke OHV petrol engine. The manufacturer identifies the engine as a EURO V version designed to provide reliable performance in demanding applications.

The specified engine-oil capacity is 2.5 litres, using SAE 10W-40 oil. The current operating and maintenance manual remains authoritative.

Operation and electrical protection

The digital display provides operating information including:

output voltage
frequency
operating hours
current load
fuel level

According to the technical data sheet, the control panel includes:

64 A IP67 socket
32 A IP67 socket
16 A IP67 socket
30 mA residual-current device
main and circuit breakers
earth terminal
emergency stop
dry-contact interface
ATS connection
voltage selector

The socket to be used in each operating mode and the permitted connection arrangement depend on the selected voltage, phase configuration, load and instructions in the operating manual.

Sound-reducing enclosure and transport equipment

The generator has a fully enclosed, sound-reducing housing. The manufacturer specifies an average sound-pressure level of 72 to 77 dB(A) at a distance of seven metres, depending on whether the engine is idling or operating at rated load. The guaranteed sound-power level is 96 dB(A).

With dimensions of 1,003 × 784 × 967 mm and a weight of 219 kg, the BORNEO is a high-output transportable generator. The wheel kit assists movement across suitable, load-bearing surfaces. Its dimensions and weight must be considered when securing the generator for transport or positioning it at the job site.

Specialist support from Seilwinden Direkt and Winch Industry

The suitability of a generator for a high-power drone charger cannot be determined from total wattage alone. Voltage, phases, input current, connecting cables, plugs and electrical protection must all be compatible.

As the specialist online shop operated by Winch Industry GmbH, Seilwinden Direkt can assist with selecting the correct power solution. For a technically informed assessment, please provide:

manufacturer and model of the agricultural drone
flight-battery designation
manufacturer and model of the charger
charger input specifications
details of existing plugs and cables
number of chargers to be used simultaneously
details of any additional simultaneous loads

This information allows the intended application and required accessories to be assessed correctly.

Technical specifications

Manufacturer	GENERGY
Model	BORNEO RC/SOL/ATS 19000W
Item number	31033
EAN/GTIN	8436531942298
Generator technology	Inverter
Fuel	Petrol
Voltage	230 V or 400 V
Frequency	50 Hz
Phase configuration	Dual voltage, single-phase or three-phase
Maximum output at 230 V	19,000 W, S2 for five minutes
Rated output at 230 V	18,000 W, COP
Maximum output at 400 V	19,000 W, S2 for five minutes
Rated output at 400 V	18,000 W, COP
Power factor	1
Engine	GENERGY SGS1000PRO
Engine type	Four-stroke OHV, air-cooled
Displacement	999 cc
Starting methods	Recoil, electric, remote, dry contact and mains-failure control
Fuel-tank capacity	70 l
Consumption at 25/50/75% load	5.2/6.9/8.7 l/h
Operating time at 25/50/75% load	13.5/10.2/8 hours
Engine oil	2.5 l, SAE 10W-40
Sound-pressure level at seven metres	72–77 dB(A)
Guaranteed sound-power level	96 dB(A)
Insulation grade	H
Insulation quality class	A
Performance class	G2
Standard	ISO 8528-13:2016
Dimensions	1,003 × 784 × 967 mm
Weight	219 kg
Wheel kit	Included as part of the generator configuration

Safety information

Internal-combustion engines produce poisonous exhaust gases, including carbon monoxide. Never operate the generator inside an enclosed or inadequately ventilated area. Positioning, earthing, electrical connection and operation must comply with the operating manual and applicable regulations. Mains-failure, ATS and photovoltaic integrations must be completed by appropriately qualified professionals.
