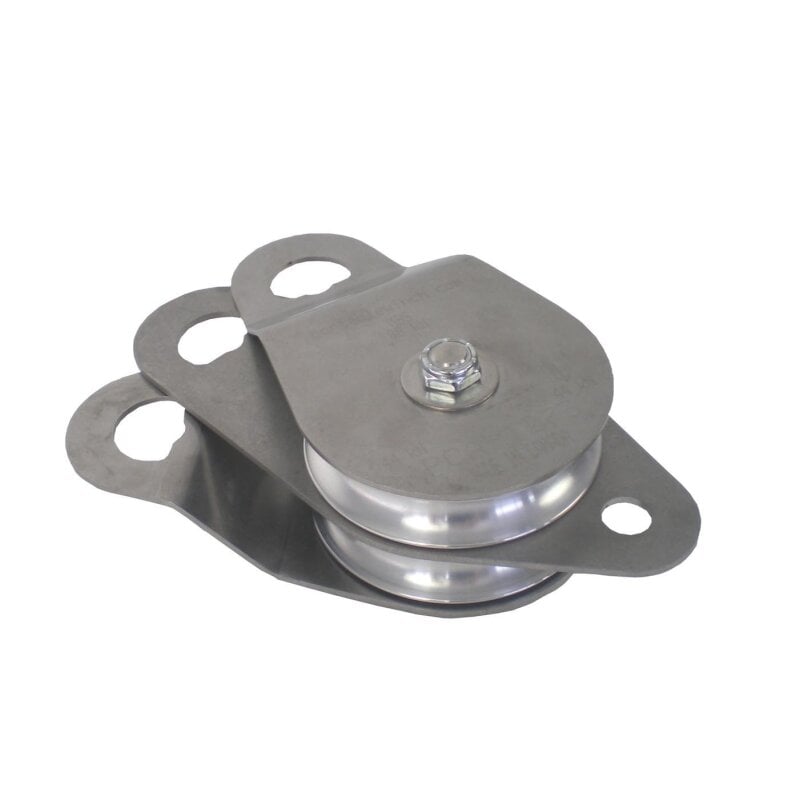

Double idler pulley with swivel side cover made of stainless steel. 2 aluminum pulleys with 100mm diameter. Limit load 44kN, for 6 - 13mm ropes, ce -certified
Rope pulleys consist of stainless steel side plates and an aluminum rope sheave (a grooved sheave). The oscillating side plates ensure that the rope can be quickly aligned and brought into position.
The pulley axle is also made of stainless steel and a lubricated bronze bearing, so that a faultless and maintenance-free operation can be ensured. Their power capacity ranges from 16 kN to 44 kN.
These sheaves with oscillating side plates open so that the rope can pass. When they are closed, the rope can no longer pass. Their 76 m long or 100 mm wide aluminum sheaves are mounted on self-lubricating bronze bearings and provide 98% efficiency. The side plates, central plate and axle are made of stainless steel. Excellent, solid and sturdy pulleys. Use a carabiner to attach these pulleys to the polyester belt.
A hole at the base of the central plate makes it possible to attach the rope with a carabiner if needed. If you use this pulley together with the PCA-1274 pulley, you will quadruple the total pulling force. For ropes with a diameter of 12 mm.
Diameter: 100 mm
Weight: 2 kg
min. Breaking strength: 220 kN
Working load limit: 44 kN
Product safety information
Manufacturer information:
VONBLON Maschinen GmbH
Landstraße 28
6714 Nüziders, Österreich
office@vonblon.cc
Responsible person:
VONBLON Maschinen GmbH
Landstraße 28
6714 Nüziders, Österreich
office@vonblon.cc
| Item information |
Value |
| Shipping weight: |
2,50 kg
|
| Item weight: |
2,00 kg
|
| Dimensions
( Length × Width × Height ):
|
27,00 × 14,00 × 14,00 cm |
