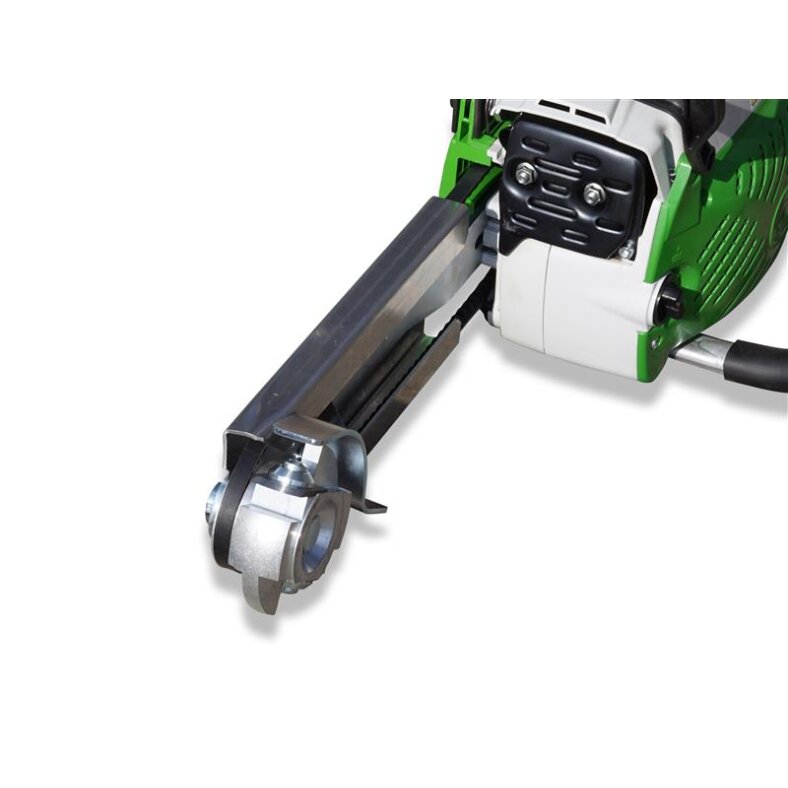

eder disc router
With the eder disc milling machine esf1 you are able to mill out grooves and depressions in wood quickly and easily.
The eder esf1 disc miller can thus be used to make troughs, for sculptural or even tree surgery work.
Due to the arrangement of the knives, machining is possible in both longitudinal and transverse directions of the milling head.
There is a guide for milling straight gutters in longitudinal direction.
There are 2 knives on the milling head, which produce a smooth surface without vibrations.Technical specifications:
- Weight without motor: 2.0 kg
- Weight with eder motor: 7,8 kg
- Driving power: min. 1,2 kW
- Milling disc diameter: 95 mm
- Milling disc width: 30 mm
- Blade length: 320 mm
- Number of knives: 2
- Max. Speed: 13.000 1/min
- Drive ratio: 1:1
IMPORTANT: This is the disc cutter. The motor is not included in the delivery.
The set consisting of disc cutter and motor can be ordered HERE to order.
Minor adjustments must be made for some chainsaws. Basically no chainsaws with chain quick tension, Autotune or M-Tronic can be used!
We recommend the use in set with the eder motor.
