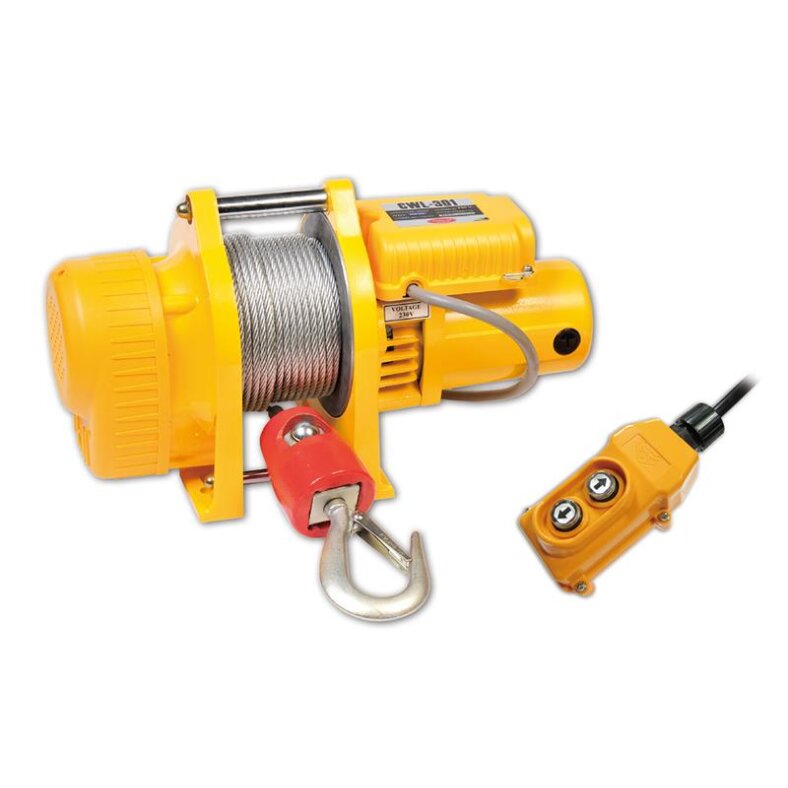

ComeUp hoisting winch cwl-301 230v 300 kg

Lightweight and compact design for easy installation
Dual mechanical ratchet brake for instant and safe braking
Works with standard household power supply
Wire rope is equipped with a weight hook with a safety lock
Closed drum flange prevents ropes from being pinched between drum and support castings
incl. emergency stop cable remote control

975,80 €

incl. 19% VAT , plus

Manufacturers recommended retail price: 999,99 €

(Save 2.42%, i.e. 24,19 €)

Choose tax zone / country of delivery

piece

This bundle is now in the shopping cart.

Discount with Bundle:

This bundle promotion cannot be combined with other coupon promotions.

ComeUp hoisting winch cwl-301 230v 300 kg

Radio unit for ComeUp hoisting winch cwl, cws, kio 230v

Speed Control / speed control ComeUp hoisting winch cws cwl 230v

Your Savings: 76,29 €

lifting capacity: 300 kg on outermost rope layer
Lifting speed: 16 - 25 m/min
Rated motor power ip44:
1 phase, 220-240v: 2.3 kw x 11 a wound in series
Transmission ratio: 110:1
Maximum lifting height: 29 m
Braking methods: for motor: electromagnetic, for gearbox: double mechanical ratchets
Wire rope: 6 mm x 30 m
Drum length: 97 mm
drum diameter: 95 mm
Diameter of the drum flange: 190 mm
Pattern of mounting bolts: 142 mm x 94 mm; 152 mm x 135 mm
Net weight, kg (standard version) : 38 kg
Gross weight : 40 kg
dimensions of the body, (l x d x h) : 501 x 210 x 270 mm
dimensions of the box, (l x d x h) : 630 x 395 x 350 mm
