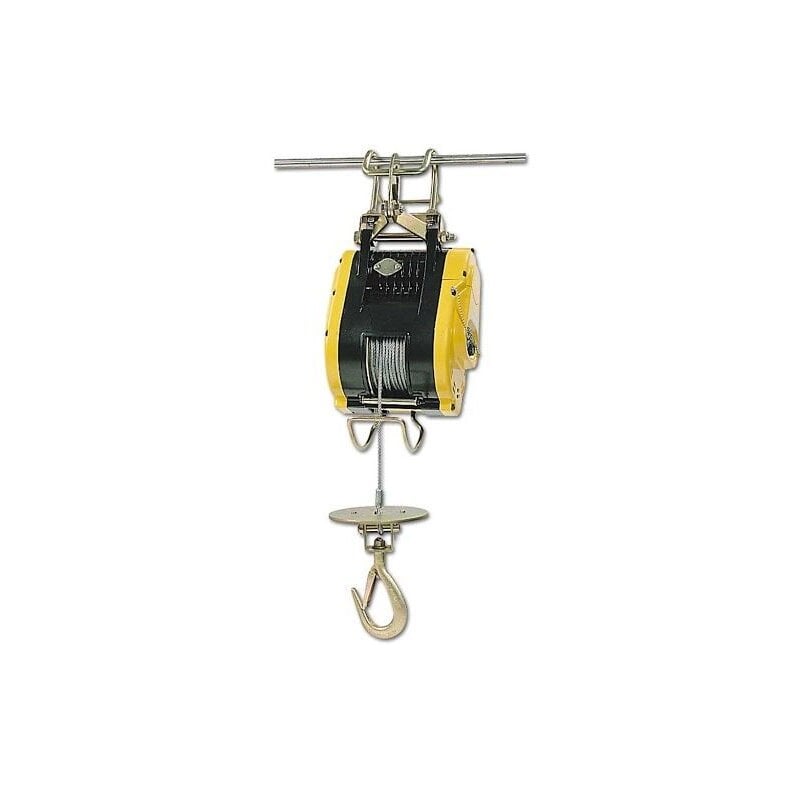

Specifications:
- load capacity: 160 kg on weakest rope layer (outside)
- Lifting speed: 14 - 22 m/min
- Motor protection: IP44
- 1 phase, 220-240v: 1,2 kw x 6 a series winding
- Transmission ratio: 192:1
- Maximum lifting height: 30 m
- Remote control, 1,25mm² x 6c x 10m
- Power cable 1.5mm² x 3c x 5m with industrial plug
- Braking methods:
- for motor: electromagnetic
- for gear: double mechanical ratchet
- Wire rope: 4,8 mm x 31 m
- Drum length: 60 mm
- drum diameter: 90 mm
- Diameter of the drum flange: 170 mm
- Net weight, kg: 14 kg
- Gross weight : 24 kg
- box dimension, (l x d x h) : 425 x 365 x 300 mm
Lifting capacity, lifting speed and rope capacity:
| Rope layer |
Lifting capacity
(kg) |
Lifting speed
(m/min) |
Rope capacity
on drum |
| 1 |
257 |
14 |
|
| 2 |
234 |
15.4 |
7.2 |
| 3 |
214 |
16.8 |
11.3 |
| 4 |
197 |
18.2 |
15.8 |
| 5 |
183 |
19.6 |
20.6 |
| 6 |
171 |
21 |
25.8 |
| 7 |
160 |
22 |
31 |
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Shipping weight: |
25,00 kg
|
| Item weight: |
24,00 kg
|
| Dimensions
( Length × Width × Height ):
|
24,40 × 18,20 × 69,50 cm |
