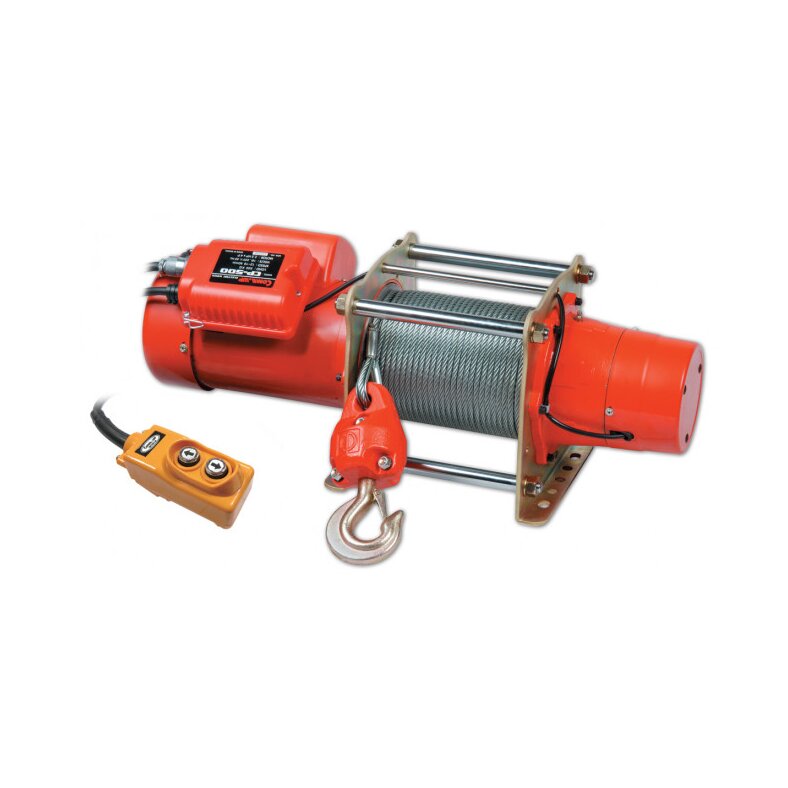

General information about the ComeUp hoist
- Lightweight and compact design for easy installation
- Electromagnetic spring-applied brake with safety function
- Heavy-duty ball bearings on all running surfaces for high load capacity
- Planetary gearbox for highest mechanical efficiency
- Closed drum flange to prevent rope from getting caught between drum and support steel plates
- Steel plate foot mountings
- Quiet running
- Emergency stop function switch is available on request
- Low voltage control ass'y is available on request
Technical details of the hoist:
- Lifting speed: 10 - 15m / min
- Motor protection class: ip44
- Voltage: 220-240v
- Gear ratio: 48:1
- Max. Lifting height: 58m
- Brake: Electromagnetic
Dimensions:
- Winch dimensions: 728 x 260 x 299mm
- Rope: 7mm x 60m
- Drum length: 220mm
- Drum diameter: 102mm
- Hole pattern: 267mm x 156mm; 267mm x 72mm
- Empty weight: 55kg
- Total weight: 57kg
| Cable layer |
Lifting force in kg |
Lifting speed |
|
1
|
757
|
10
|
|
2
|
671
|
11,6
|
|
3
|
602
|
12,9
|
|
4
|
546
|
14,2
|
|
5
|
500
|
15
|
Tensile load capacity for different gradients in kg
Level surface - 4,170 kg
- 10% 6° - 2,230 kg
- 20% 11° - 1,620 kg
- 40% 22° - 1,040 kg
- 60% 31° - 810 kg
- 80% 39° - 690 kg
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Lifting speed: |
1 - 15 m / min |
| Voltage: |
230 V |
| Lifting force (without deflection): |
251 - 500 kg |
| Shipping weight: |
68,80 kg
|
| Item weight: |
57,00 kg
|
| Dimensions
( Length × Width × Height ):
|
72,00 × 26,00 × 29,90 cm |
