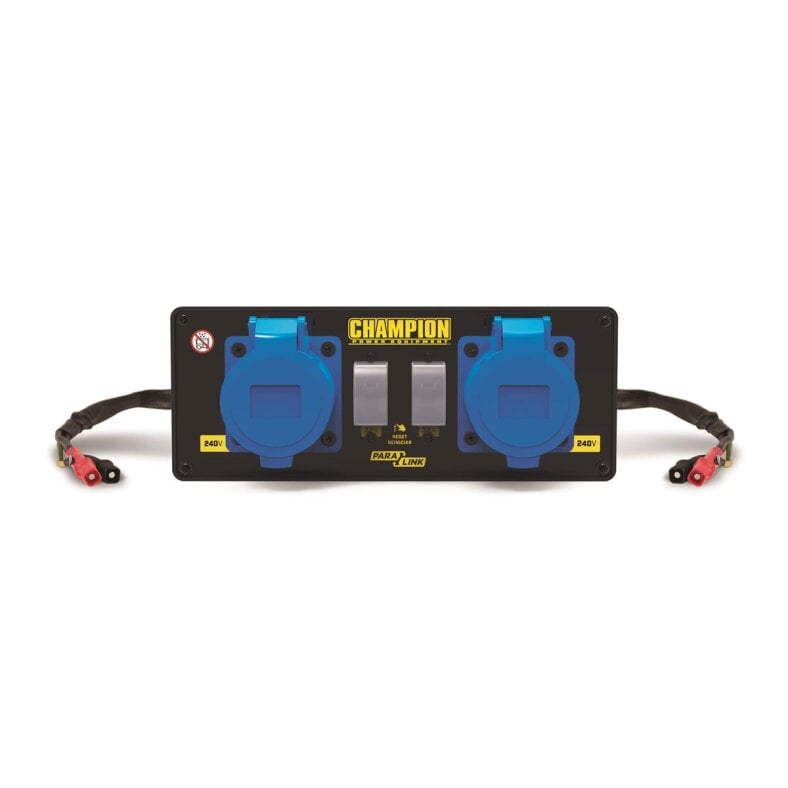

CHaMPION Parallel Kit for 1000-3000 Watt Generators
This newly developed kit is intended for use with Champion inverters only. Ideally, this kit should be used with at least one Champion inverter rated 2800 watts or greater (2800+) and (or) any other Champion inverter that uses the square paralink sockets.
The total power output of this kit depends on the size of the connected generators. The maximum rating of the parallel kit is the total amperage of 58a across two receptacles or the rated amperage of each receptacle up to 32a.
With this model, all Champion generators rated 1000-3500 watts can be connected in parallel to provide an increase in continuous power of up to 95% of the combined operating power.
The control box design is IP54 protected and features 2 x 230 v 32 a 3-pole waterproof industrial sockets (type cee - color blue) and connection cables that allow easy, tool-free connection of all Champion generators via the paralink socket (plug and play). With a double clip design, the parallel kit can be clipped to handles, for example, to hold them securely while the generators are in operation.
WaRNING
When paralleling, always arrange the generators in a v formation with both mufflers pointing in the same direction, away from the parallel kit, cables and each other (see photo).
Included in delivery:
- 1 x 27-amp circuit box
- 1 x manual
- 2 x adapters
This kit can be used with the following models:
- 73001i
- 73001i-P
- 73001i-DF
- 92001i
- 92001i-DF
- 1 x 73001i
- any other Champion inverter with paralink function
This one model is designed for two markets in the uk and the eu.
Product safety information
Manufacturer information:
Winch Solutions Ltd.
Unit 17-18 Unit 17-18
WN6 0XQ, Wigan, Vereinigtes Königreich
sales@bpeholdings.co.uk
https://winchsolutions.co.uk
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Item information |
Value |
| Shipping weight: |
2,00 kg
|
| Item weight: |
1,72 kg
|
| Dimensions
( Length × Width × Height ):
|
21,80 × 16,20 × 12,80 cm |
