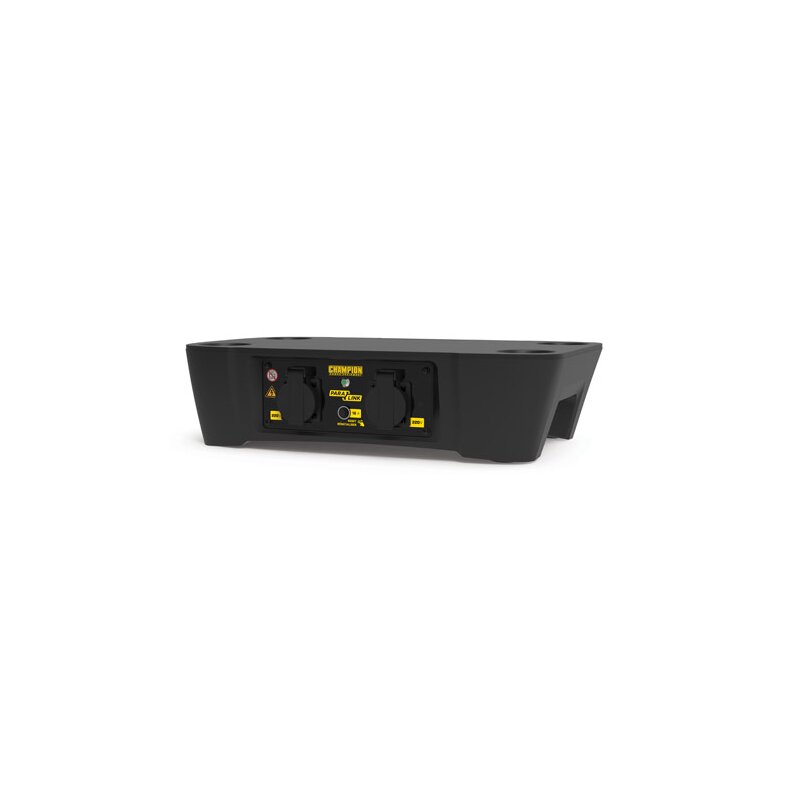

Champion parallel kit for generators type 82001i-EU, 82001i-DF-EU stackable
This newly developed kit is for use with Champion inverters only. Ideally, this kit should be used with at least one Champion 82001i-EU/ 82001i-DF-EU inverter and (or) any other Champion inverter that uses the square paralink sockets.
The total power of this kit depends on the size of the connected generators. The maximum rating of the parallel kit is the total current rating of 28a across two receptacles or the rated current rating of each receptacle up to 16a.
This model is designed for the 230 volt EU market and allows any Champion "82001i" inverter to be connected in parallel to provide an increase in continuous power of up to 95% of the combined operating power. The control box design is IP54 protected and features 2 x 230v 16a 2-pole Schuko sockets and connection cables, allowing easy, tool-free connection via the paralink socket.
A double clip design allows the two generators to be safely positioned horizontally in V formation during operation.
Champion's Parallel Kits increase your power by connecting two ParaLINK compatible generators. These kits are perfect if you want the flexibility of a lightweight on-the-go inverter to power some equipment, but also want the ability to connect two lightweight and ultra-quiet inverters to get the power of a larger unit when you need it.
This kit can be used with these models:
Product safety information
Manufacturer information:
Winch Solutions Ltd.
Unit 17-18 Unit 17-18
WN6 0XQ, Wigan, Vereinigtes Königreich
sales@bpeholdings.co.uk
https://winchsolutions.co.uk
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Item information |
Value |
| Shipping weight: |
3,50 kg
|
| Item weight: |
3,00 kg
|
| Dimensions
( Length × Width × Height ):
|
48,70 × 29,40 × 12,20 cm |
