Bundle Deal: 2x X-Type 5-Inch + Wiring Harness + Cover black

Bundle Deal: 2x X-Type 5-Inch + Wiring Harness + Cover black

SKU: LP-PXT5-SET-BL
Category: LED Driving Lights

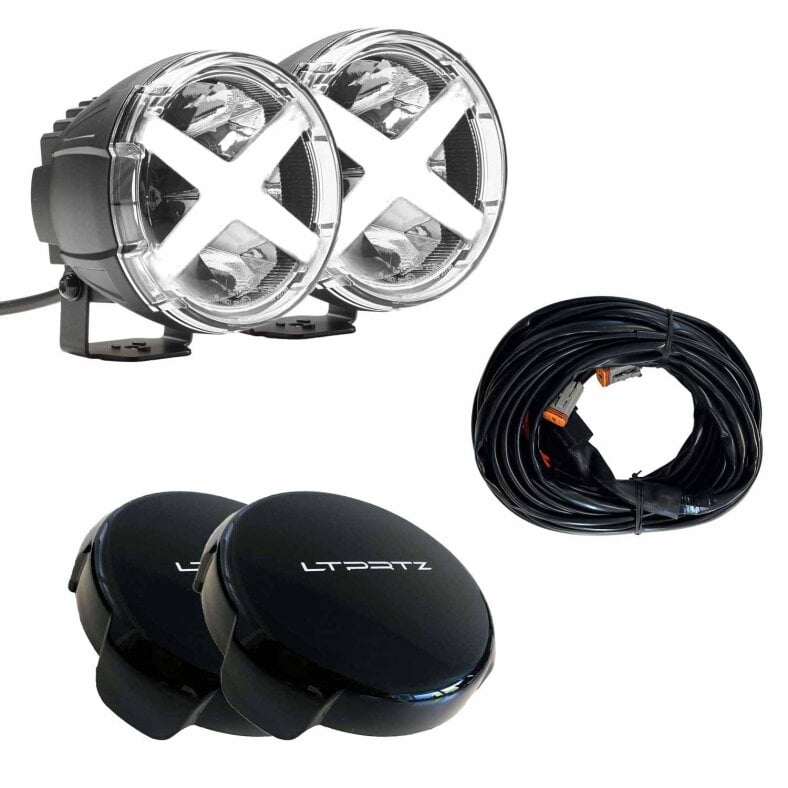

LED high beam headlight complete set includes:

2x X-TYPE 5-inch LED high beam headlights
Wiring harness with 4 PIN DT connector
2x black headlight cover caps

Covers:

516,98 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available immediately
Delivery time: 7 - 9 Workdays (DE - int. shipments may differ)

Available from: 01.07.2026 (Pre-orders possible)

X-Type 5-Inch - High Beam Headlight E-Approval

ECE R112 High Beam Headlight
ECE R10 Electromagnetic Compatibility
ECE R7 Position Light White in X-Shape

With Position Light in X-Shape

✔ Water and dustproof, shock-resistant
✔ Durable and high-quality materials
✔ PHC587 coating to prevent yellowing
✔ Extremely compact size fits many vehicles
✔ Operable in ambient temperatures from -40° to +80°
✔ Certified for electromagnetic compatibility
✔ Reference number: 20 - also suitable for cars with LED and matrix lights!
✔ Range: 470 m (0.1 lx), 296 m (1 lx)

Technical Specifications:

Operating Voltage: 9-33 V DC
Power Consumption (12/24 V):
- High Beam: 24.6 W / 22.8 W
- Position White: 2.2 W / 2.4 W
Housing: Aluminum ADC12, black coated
Lens and Reflector: Polycarbonate
Bracket: SPCC
Reference Number: 20
Connector: Deutsch 4-pin
Protection Class: IP69K
ECE Homologation: R10 | R7 | R112 Class B
LEDs: High Beam 4x | Position Light White: 16x
Light Color High Beam: 6000 K Cool White
Lumens (Raw): 4,000 lm
Luminous Intensity: 96,000 cd
Dimensions: Ø 121 x 90 mm
Weight: 0.7 kg

Wiring Harness for Two Auxiliary Headlights with 4-Pin DT Connector

Includes two toggle switches or optionally for connection to the CAN Bus high beam control
Toggle Switch 1 to switch the high beam (to illuminate the switch, a separate ground wire from the dashboard must be connected.)
Toggle Switch 2 to switch the position light to white
Connectors included for switch connection
Crimp connectors included for extending wires
40A high-performance relay and fuse holder with 30A blade fuse
Cable Length: 3 m
2x Deutsch 4-pin connectors
Battery - and + ring terminals for M8
Maximum Output: 10A
