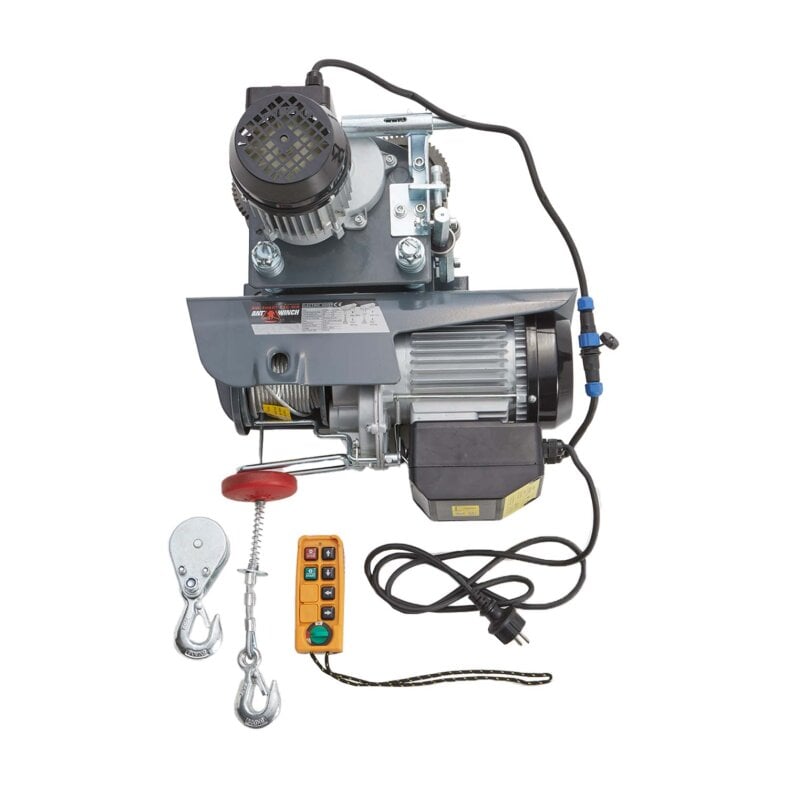

ANTWINCH Electric Hoist Winch with Trolley and Wireless Remote Control 230V 300/600kg 8m/min
The compact design of the mini electric hoist makes this professional lifting device a versatile tool for a wide range of lifting applications. With a net weight of only 34.86 kg, the small and lightweight hoist lifts up to 300 kg (single line) to a height of 18 m. The electric winch is easy to install – the durable, low-twist steel cable with a usable length of 18 m can be quickly and easily replaced if required. The included trolley allows the unit to be mounted on various beam profiles (I-beam, H-beam, or double-T beam). This hoist features a high-quality, professional wireless remote control with emergency stop for the electric in- and out-feed of the cable as well as directional control of the trolley. The mini hoist complies with BS EN14492 standards thanks to upper and lower limit switches and integrated thermal overload protection for increased safety. The powder-coated housing of the electric hoist is protected against dust and splash water and meets protection class IP54.
Compact 230V Mini Electric Hoist with Trolley – available online at seilwinden-direkt.de
The lightweight yet durable hoist is ideal for use on construction sites, in industrial halls, and even for private applications such as workshops or gardens, allowing safe and efficient lifting of heavy loads. The mini hoist offers a lifting speed of up to 8 m/min in single-line operation and 4 m/min in double-line mode. The trolley speed is approx. 16 m/min. The double-line configuration – thanks to the included pulley block – allows lifting of up to 600 kg to a height of 9 m. Automatic braking and thermal overload protection ensure maximum safety during operation.
Buy affordable mini hoists and other electric winches, hoists, and accessories online at Seilwinden-Direkt.de
Technical Specifications – AW-EH60T4-230-WR Electric Hoist:
-
Voltage: 230V
-
Power cable length: 3 m
-
Lifting capacity (S/D*): 300 / 600 kg
-
Lifting height (S/D*): 18 m / 9 m
-
Lifting speed (S/D*): 8 / 4 m/min
-
Trolley speed: 16 m/min
-
Hoist motor: 1,600 W, 230V
-
Trolley motor: included
-
Cable: 5.6 mm × 18 m
-
Protection class: IP54
-
Insulation class: B
-
Weight: 34.86 kg
-
Dual safety limit switches: integrated
-
Sound level: 71 dB(A)
-
Beam height: 10–22 cm
-
Beam width: 68–110 mm
Dimensions & Technical Drawings:
Applications:
- Construction sites (e.g. building materials)
- Industrial halls (e.g. workpieces)
- Workshops (e.g. engines)
- Warehouses (e.g. goods)
- Freight elevators (e.g. groceries or firewood)
Features & Benefits of the 230V Professional Hoist:
-
Spare parts available from stock
- Compact, lightweight, and powerful hoist with trolley
- No load twisting thanks to low-twist steel cable
- Reliable and easy operation
- Safe handling with professional wireless remote control
- Motor with automatic brake in case of power interruption
- Thermal overload protection
- Quick and easy installation (for ceiling, scaffolding, or swing arm mounting)
- Housing: high-quality powder-coated aluminum die-cast
- Certified TÜV/GS quality
Scope of Delivery:
- Hoist with 18 m steel cable and hook pre-installed on the drum
- Electric trolley (Plug & Play)
- Additional pulley block with safety latch
- Professional 4-way wireless remote control for hoist and trolley (2× AA 1.5V batteries)
- Power cable with Schuko plug
*Single-line / double-line operation
*Please observe duty cycle before operation at full load: S3 25% – 10 min, 2.5 minutes continuous operation, 7.5 minutes rest (10-minute cycle)
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
| Item information |
Value |
| Shipping weight: |
41,86 kg
|
| Item weight: |
34,86 kg
|
