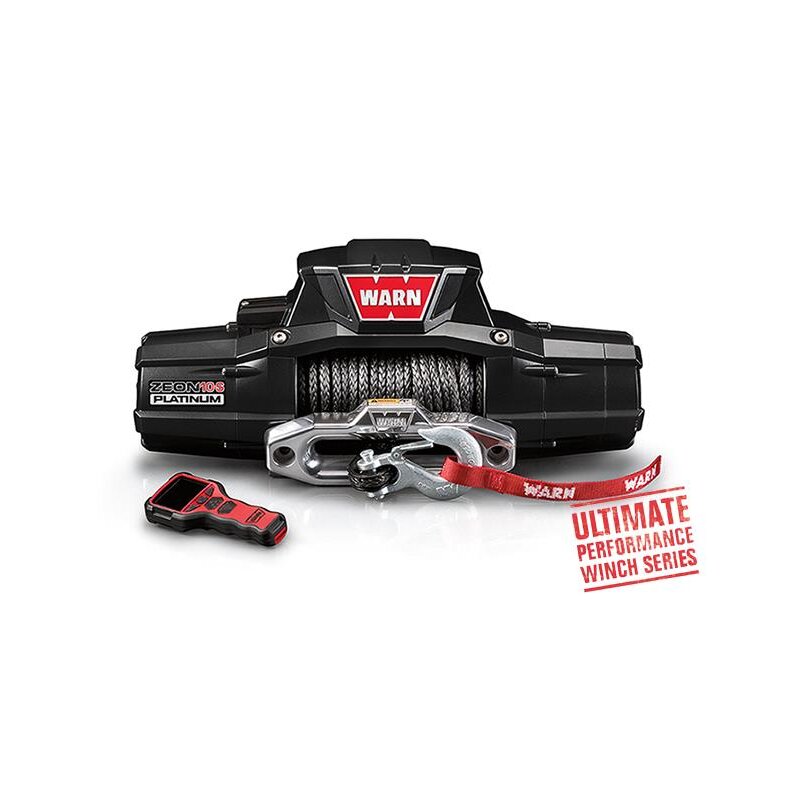

WARN zeon 10-s platinum synthetic rope 4.5t 12V
The zeon 10-s platinum was built for the user who wants to take things to the next level: twice as durable, 20% faster pulling speed, and extreme ip68 waterproofing.
Included is perhaps the most advanced radio control system on the market. This controls not only the winch, but also the hitch and other accessories.
With a pulling force of 4536 kg, a high-performance engine and Spydura® synthetic rope, you'll be well equipped to explore places you've only dreamed of.
Engaging, disengaging, and freewheeling functions are all controllable via radio control. The manual clutch has been eliminated to keep all hands free in the mud.
A further 2 accessories can be controlled via the control unit. This radio unit meets the highest demands and provides feedback on the vehicle battery level and winch temperature, controls the operation of the winch clutch and the winch control
Includes USB charging cable and car charging adapter.
Newly developed high speed motor, stronger gear and thermo-treated sprocket deliver 20% higher pulling speed, highest efficiency and greatest durability in its class.
Rugged aluminum structure with black powder-coated finish and stainless steel fasteners deliver strength and maximum corrosion protection with over 400 hours of salt spray testing.
Large diemension winch drum with steel sleeve is strong, lightweight, reduces rope wear, and features an integrated rope anchor for easy rope installation.
Extreme sealing meets ip68 standards-the highest rating within all WARN winches.
Mechanical and tapered brake provides excellent control during winch operation.
Innovative control package with contactor and advanced controls gives the zeon extreme reliability and weather resistance.
Specifications:
-
Winch model: zeon10-s Platinum
-
Rated pull: 10,000 lbs, (4536 kgs.) single pull
-
Motor: In-line, 12V
-
Electrical control: Contactor
-
Remote Control: Advanced wireless radio control
-
Gearbox: 3-stage planetary gear
-
Gear ratio: 162:1
-
Clutch: Mechanical gear
-
Brake: Automatic mechanical conical
-
drum: Ø/length: 80mm/229mm
-
Net weight: 37 kgs
-
Rope: Spydura® synthetic rope l: 30m Ø: 9.52mm
-
Aluminum rope window: matt
-
Recommended battery: 650 cca minimum for recovery
-
Battery cable: 2 x 1.83m
-
paint: Satin black powder coating
-
Winch dimensions: 615.9mm l x 181.6mm d x 267.1mm h
-
Mounting hole circle: 254mm x 114.3mm
-
Pulling speed (without load): 13.41 meters/minute
-
Power consumption (full load): 465 A
