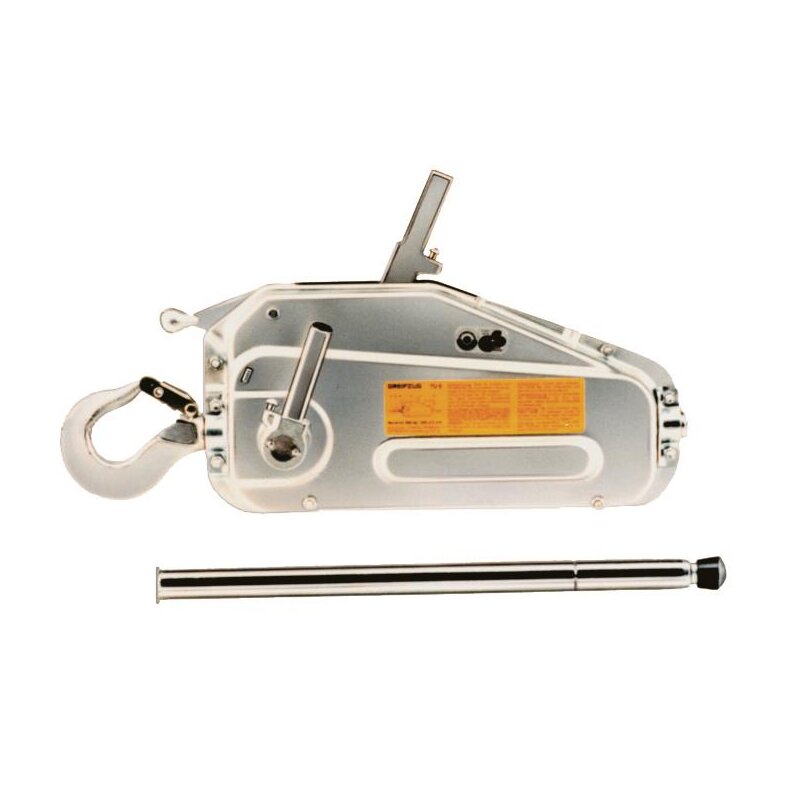

tractel gripper hoist tu 8 with lever tube for material handling 800 kg

tractel gripper hoist tu 8 with lever tube for material handling 800 kg

SKU: 18009
GTIN: 3600230180090
HAN: 18009
Category: Hand winches

845,99 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available immediately
Delivery time: ca. 13 months (DE - int. shipments may differ)

piece

The greifzug tu series is designed for daily hard, intensive use in extreme conditions.
The greifzug tu is a versatile and portable multi-purpose hand hoist for lifting, pulling and positioning equipment.
It can be used for lifting and pulling, but also for lowering, tensioning and securing loads in all directions.
One-man operation via telescopic lever tube supplied as standard. Replacement shear pins for overload protection are supplied as standard.
Proven quality for decades, brand name and market leader - often copied, never equaled.
The greifzug tu series for daily heavy-duty use under the most extreme conditions.

The tirfor® is a portable traction hoist with continuous rope that performs all the functions of a hand-operated wire rope hoist or pulley block under the most diverse operating conditions with unique advantages. Its distinctive feature is the rope-pull principle.

Functionality:

Multipurpose hoists are portable devices for lifting, pulling and tensioning. Grapple hoist devices operate with consistent safety in any position and in any direction, provided that they can align in the direction of pull.
The rope is not wound on a drum as in pulley blocks or conventional winches, but is moved in a straight line by two jaws comparable to hands to pull it or accompany it during lowering.
There is one operating lever each for lifting and lowering. By moving the attached lever tube back and forth, two pairs of jaws move the rope alternately through the device. The rope length (=traction distance) is practically unlimited. The
Mechanism is self-locking; the loaded rope pulls the jaws together. The unloaded Grip Hoist™ device can be released. Then the rope can be inserted and pre-tensioned by hand and pulled out again when the work is finished.
The device is equipped with a sling (hook or pin, depending on the model) that allows quick attachment to any attachment point with sufficient load capacity.

Article advantages at a glance:

Lightweight and easily portable for use in any location.
tu models fully compliant with en13157
For safe and reliable operation in all directions, either straight or with pulleys over an unlimited length.
Low-wear tensioning jaws for demanding applications to increase wire rope life Overload protection for safe and reliable operation
Quick and easy to install and operate.
Load capacity can be increased by using wire rope sheaves.
Position loads with millimeter accuracy
Safe release system
Load capacity from 800 - 3200 kg
Optional accessories are available separately - e.g.: Rope pulleys, pulleys, floor anchors and winders.

Technical details:

Product safety information

Manufacturer information:

TRACTEL
Pippinger Str. 51
51469 Bergisch Gladbach,

Responsible person:

TRACTEL
Pippinger Str. 51
51469 Bergisch Gladbach,

Shipping weight:	9,90 kg
Item weight:	9,40 kg
Content:	1,00
Dimensions ( Length × Width × Height ):	52,70 × 12,00 × 28,50 cm
