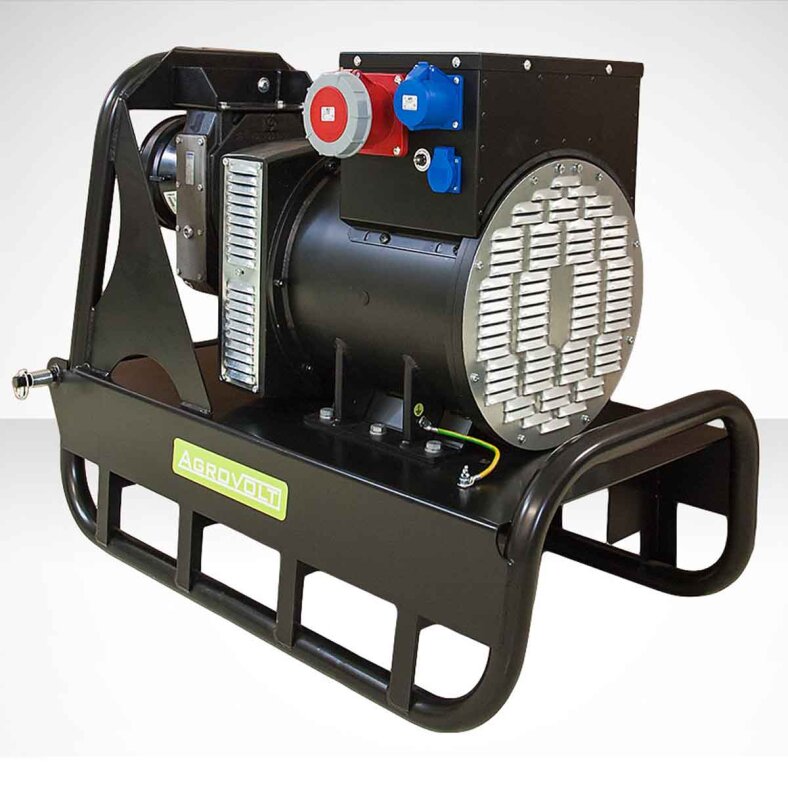

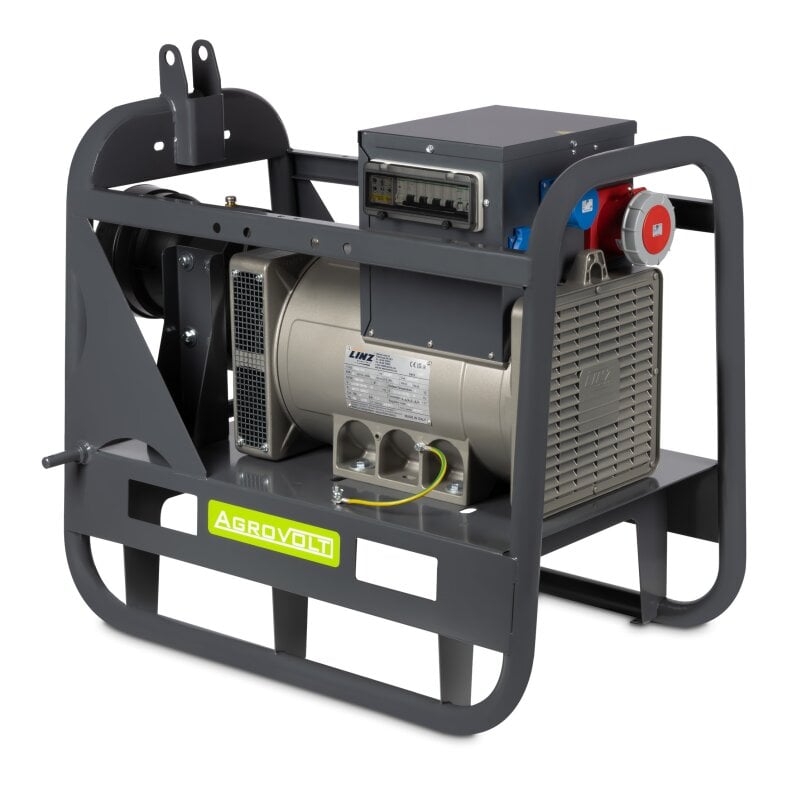

fogo agrovolt pto generator 65 kva av65r with avr (voltage regulator)
Fogo produces PTO generators agrovolt from 18 to 80 kva
The av65 PTO generator is the ideal companion in agriculture, horticulture, fruit and animal husbandry.
Recommended for:
- Milking parlor
- Milk cooler
- Electric machines
- Submersible pumps for irrigation
- Power tools etc.
also suitable for fine electronics, pc, tv, home fuse etc.
TECHNICAL DATA:
Three-phase rated power: 65.0 kva, 52 kw 3~
Maximum power: 71.5 kva 3~
Single-phase rated power: 26 kw 1~
Maximum power: 28.6 kw 1~
Rated voltage: 400 / 230 v 50 Hz
Rated current: 94.2 a 3~ / 113 a 1~
Voltage stabilization: Digital +-1%, the 3-phase
dimensions (LxWxH): 1204 x 800 x 923 mm
Weight: 335 kg
Generator:
Type: Synchronous generator
Protection class: IP23
Revolutions: 1.500 rpm.
Gearbox:
Type: mono-gear transmission
Oil type: SaE 80W-90
Oil quantity: 2,5 liters
Parameters of the tractor:
PTO speed (w.o.m.): 400 rpm
Recommended power of the tractor: 130 ps
Power of the PTO: 97 ps (73kW)
Min. power of the shaft (W.O.M): 221 ps (166 kW)
Standard equipment:
- 4-pole circuit breaker
- Fault current protection device
- 3-phase socket 125 a
- 1-phase socket 16 a with thermal circuit breaker
- 1-phase socket 32 a with thermal circuit breaker
- Power measurement
- Voltage measurement
- Frequency measurement
- Current measurement
- Hour meter
ACCESSORIES on request:
Product may differ slightly from the pictures (arrangement of sockets, for example).
