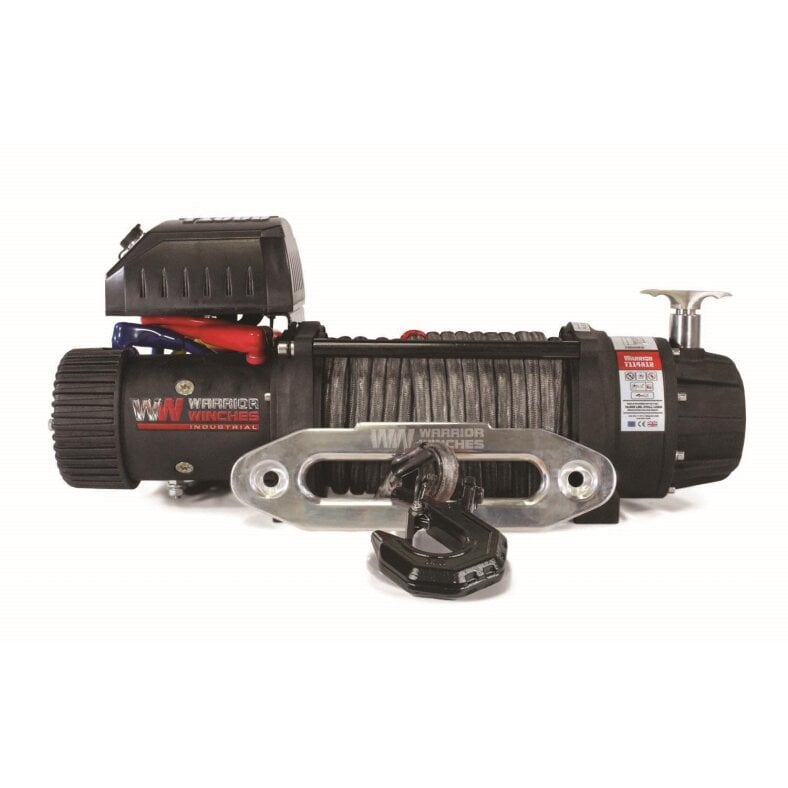

Originally developed as prototypes for military applications - the T100 range of Severe Duty Warrior winches are in the highest class of reliable performance. Able to operate in even the harshest climates and most rugged environments - its performance is something even the Army would trust. After countless successful deployments in the field, the T100 range is now available for general use.
Giving you power without compromise, they are available in both 12V and 24V options with either steel or Armortek Extreme ropes. With a massive 14,500lbs of pulling power, it will get the job done with ease, ideal for industrial or commercial applications that require a battle-ready unit.
Durable is an understatement here. Special lithium grease ensures operation in extreme temperatures, while the powder coat and stainless steel features defy corrosion and ensure long-lasting performance. You also benefit from a truly revolutionary design - the external brake is protected against overheating to ensure reliability in harsh climates.
Undoubtedly one of the most advanced and durable machines on the market - why settle for anything less than the best?
| Layer of Rope/Cable |
Line Pull: lbs(kgs) |
Rope on Drum ft(m) |
| 1 |
14500 (6577) |
14.4 (4.4) |
| 2 |
11177 (5070) |
33.1 (10.1) |
| 3 |
9093 (4124) |
56.1 (17.1) |
| 4 |
7664 (3476) |
75.4 (23.0) |
Line Pull
lbs (kgs) |
Line Speed 12v
ft/min (m/min) |
Line Speed 24v
ft/min (m/min) |
Amp Draw (A)
12v |
Amp Draw (A)
24v |
| 0 |
29.5 (9.0) |
31.1 (9.5) |
65 |
40 |
| 5000 (2268) |
11.8 (3.6) |
13.8 (4.2) |
210 |
115 |
| 10000 (4536) |
5.9 (1.8) |
7.5 (2.3) |
300 |
190 |
| 14500 (6577) |
3.9 (1.2) |
5.2 (1.6) |
405 |
260 |
Product safety information
Manufacturer information:
Winch Solutions Ltd.
Unit 17-18 Unit 17-18
WN6 0XQ, Wigan, Vereinigtes Königreich
sales@bpeholdings.co.uk
https://winchsolutions.co.uk
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Item information |
Value |
| Cable/Rope Type: |
Synthetic Rope |
| Application: |
Private |
| Brand: |
Warrior |
| Vehicle Type: |
Car |
| Pulling Force max [lbs]: |
14500 |
| Voltage [V]: |
12 |
| Gear Transmission: |
228:1 |
| Rope Diameter [mm]: |
11 |
| Rope Length [m]: |
25 |
| Drum Size [Dia x L in mm]: |
63 x 217 |
| Length [mm]: |
612 |
| Width [mm]: |
160 |
| Height [mm]: |
259 |
| Weight [kg]: |
34 |
| Mount-Pattern [mm]: |
254 x 114,3 |
| max Amp [A]: |
405 |
| Linespeed max [ft/min]: |
2935 |
| Linespeed min [ft/min]: |
3,9 |
| Drive Type: |
electric |
| Shipping weight: |
40,00 kg
|
| Item weight: |
37,50 kg
|
| Dimensions
( Length × Width × Height ):
|
61,20 × 16,00 × 25,90 cm |
