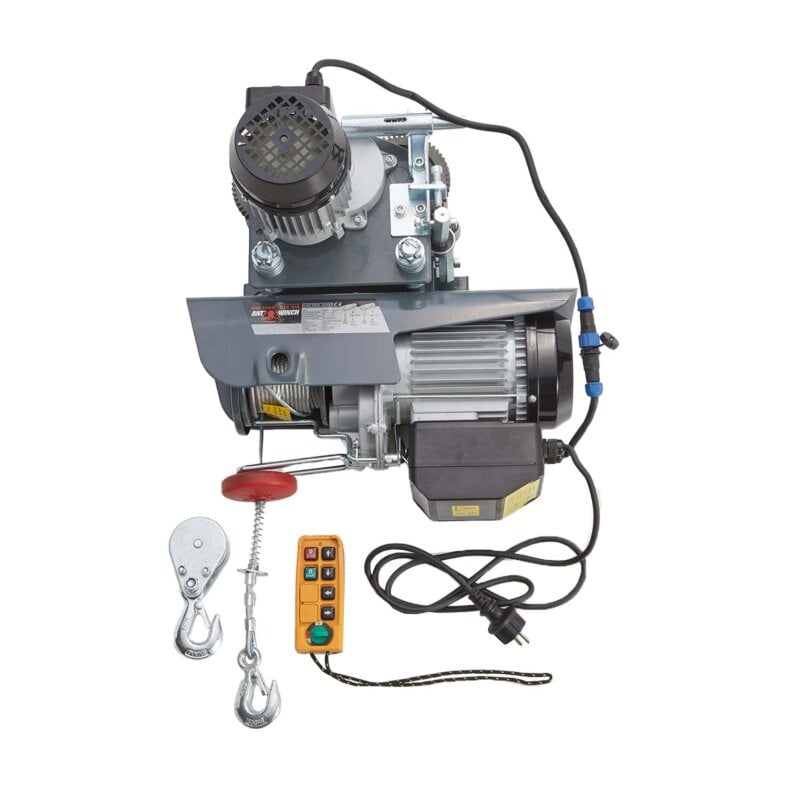

ANTWINCH Electric Hoist Winch with Trolley and Wireless Remote Control 230V 500/999kg 8m/min
The compact design of the mini electric hoist makes this professional lifting device a versatile tool for a wide range of lifting applications. With a net weight of just 15.5 kg, the small and lightweight hoist lifts up to 500 kg (single line) to a height of 18 m. The electric hoist is easy to install – the durable, low-twist steel cable with a working length of 18 m can be quickly and easily replaced if needed. The included trolley allows the unit to be installed on various beam profiles (I-beam, H-beam, double-T beam). This hoist comes with a high-quality professional wireless remote control with emergency stop for raising and lowering the cable and for controlling the trolley direction. The mini hoist complies with the BS EN14492 directive thanks to its upper and lower limit switches and integrated thermal overload protection for enhanced safety. The powder-coated housing is protected against dust and splash water and meets protection class IP54.
Compact 230V Mini Electric Hoist with Trolley – available online at seilwinden-direkt.de
The lightweight yet robust hoist is used on construction sites, in industrial halls, and even for private applications in workshops or gardens to lift and move heavy loads safely and efficiently. The mini hoist offers a lifting speed of up to 8 m/min in single-line mode and 4 m/min in double-line mode. The trolley speed is approx. 16 m/min. The double-line setup – enabled by the included pulley block – allows lifting of up to 999 kg to a height of 9 m. Automatic braking and thermal overload protection ensure safe operation at all times.
Buy affordable mini hoists and other electric winches, lifting gear, and accessories online at Seilwinden-Direkt.de
Technical Specifications – AW-EH100T4-230-WR Electric Hoist:
-
Voltage: 230V
-
Power cable length: 3 m
-
Lifting capacity (S/D*): 500 / 999 kg
-
Lifting height (S/D*): 18 m / 9 m
-
Lifting speed (S/D*): 8 / 4 m/min
-
Trolley speed: 16 m/min
-
Hoist motor: 1,600 W, 230V
-
Trolley motor: included
-
Cable: 5.6 mm × 18 m
-
Protection class: IP54
-
Insulation class: B
-
Weight: 15.5 kg
-
Dual safety limit switches: integrated
-
Sound level: 71 dB(A)
-
Beam height: 10–22 cm
-
Beam width: 68–110 mm
Dimensions & Technical Drawings:
Applications:
- Construction sites (e.g. building materials)
- Industrial halls (e.g. workpieces)
- Workshops (e.g. engines)
- Warehouses (e.g. goods and packages)
- Freight elevators (e.g. groceries or firewood)
Features & Benefits of the 230V Professional Hoist:
-
Spare parts available from stock
- Compact, lightweight, and powerful hoist with trolley
-
Low-twist steel cable prevents load rotation
- Reliable and easy handling
- Safe operation with professional wireless remote control
- Motor with automatic brake in case of power interruption
- Thermal overload protection
- Quick and easy installation (ceiling, scaffolding, or swing arm)
- Housing: high-quality powder-coated aluminum die-cast
- Certified TÜV/GS quality
Scope of Delivery:
- Hoist with 18 m steel cable and hook pre-installed on drum
- Electric trolley (plug & play)
- Additional pulley block with safety latch
- Professional 4-way wireless remote control for hoist and trolley (batteries 2× AA 1.5V)
- Power cable with Schuko plug
*Single-line / double-line operation
*Please observe duty cycle before operation at full load: S3 25% - 10 min (2.5 minutes continuous operation, 7.5 minutes rest per 10-minute cycle)
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
| Item information |
Value |
| Shipping weight: |
57,15 kg
|
| Item weight: |
48,50 kg
|
