ANTWINCH Professional Electric Wire Rope Hoist 230V with Wired and Wireless Remote Control 300/600kg 35m Lifting Height
The compact design of the mini hoist makes it a versatile tool for all kinds of lifting applications. With a net weight of only 32.5 kg, the small and lightweight hoist lifts up to 300 kg in single-line operation to a height of 35 m. The electric hoist is easy to install – the robust, low-twist wire rope with a usable length of 35 m can be replaced quickly and easily if required. Using the included quick-release clamps, the mini hoist can be mounted on various beam profiles such as square beams or box sections. This hoist is equipped with a high-quality wired remote control and a wireless remote control with emergency stop for electric rope in- and outfeed. The mini hoist complies with BS EN14492 thanks to its upper and lower limit switches and thermal overload protection for enhanced safety. The powder-coated housing of the electric hoist is protected against dust and splashing water and is rated to protection class IP54.
Buy compact high-speed 230V hoist online at seilwinden-direkt.de
The lightweight yet durable hoist is used on construction sites, in industrial halls, but also in private gardens or homes to move heavy loads safely and quickly. The mini hoist features a lifting speed of up to 15 m/min in single-line operation and 7.5 m/min in double-line operation. The double-line setup – using the included pulley block – allows lifting loads of up to 600 kg to a height of 17.5 m. The automatic brake and thermal overload protection ensure safe operation at all times.
Order the affordable electric hoist and other electric winches, lifting devices, and accessories online at Seilwinden-Direkt.de
Technical specifications of the AW-EH25-230-WRC electric hoist:
-
Voltage: 230V
-
Power cable length: 3 m
-
Lifting capacity (S/D*): 300/600 kg
-
Lifting height (S/D*): 35 m / 17.5 m
-
Lifting speed (S/D*): 15/7.5 m/min
-
Motor: 1300 Watt 230V
-
Rope: 4 mm × 35 m
-
Protection class: IP54
-
Insulation class: B
-
Weight: 32 kg
-
Double safety limit switch: integrated
-
Sound level: 71 dB(A)
Applications:
- Construction site (e.g. building materials)
- Industrial hall (e.g. workpieces)
- Workshop (e.g. engine)
- Warehouse (e.g. goods)
- Freight elevator (e.g. shopping or firewood)
Features & Benefits of the 230V Professional Hoist at a glance:
-
Spare parts available from stock if required
- Compact, lightweight, and powerful hoist
- No load twisting thanks to low-twist steel wire rope
- Reliable and easy handling
- Safe operation with professional wireless remote control
- Motor with automatic brake in case of power failure
- Thermal overload protection
- Quick and easy installation (on ceilings, scaffolding, or jib arm)
- Housing: high-quality die-cast aluminum, powder-coated
- Tested TÜV/GS quality

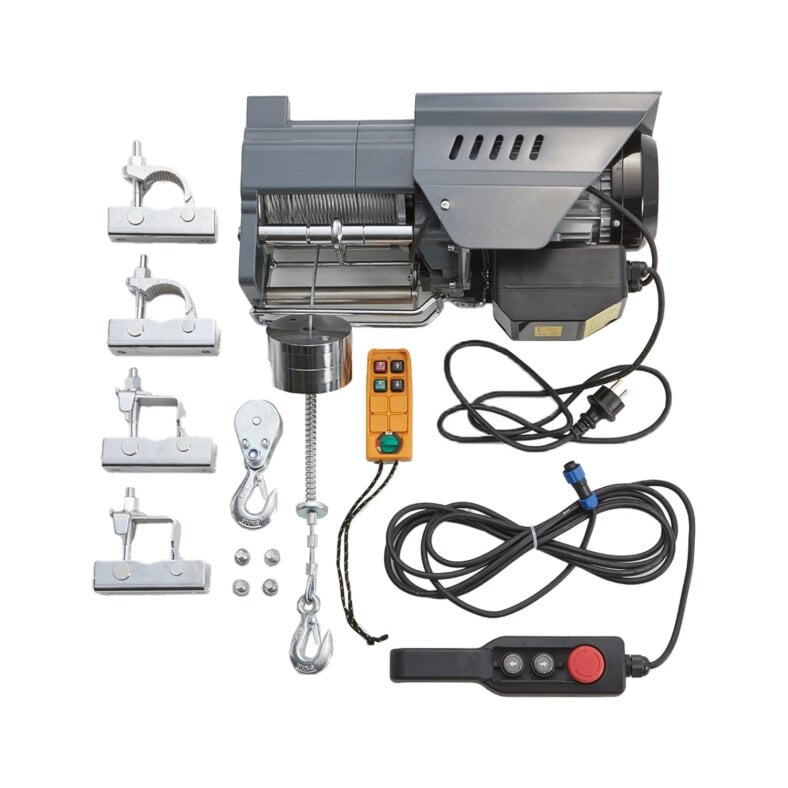

Scope of delivery:
- High-speed hoist with 35 m steel rope and hook pre-installed on the drum
- Additional pulley block with load hook and safety latch
- Professional wireless remote control (2× AA 1.5V batteries – range approx. 30–40 m)
- Quick-release clamps with bolts for mounting
- Power cable with 230V plug (Type F, Schuko)
*Single-line/Double-line
*Please observe duty cycle at full load before operation: S3 20% – 10 min, 2 minutes continuous operation, 8 minutes pause (10-minute cycle)
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Shipping weight: |
34,00 kg
|
| Item weight: |
32,00 kg
|
| Dimensions
( Length × Width × Height ):
|
56,00 × 29,50 × 38,00 cm |
