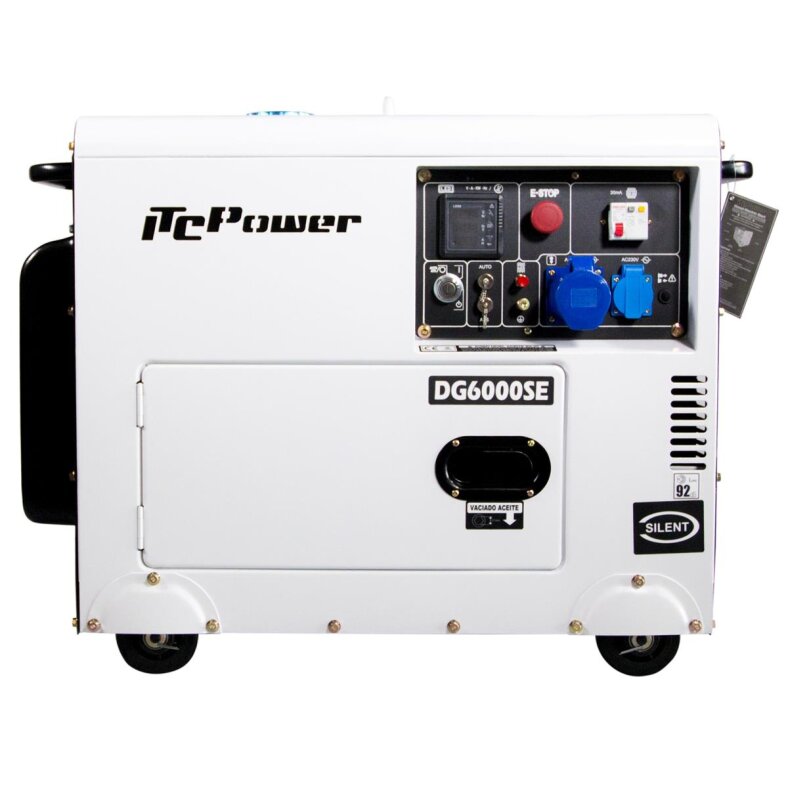

Ideally suited for your construction site or for house security!
4 stroke diesel engine with direct injection
Large tank
The cladding ensures a low noise level
The digital display ensures many monitoring possibilities
overload protection
Oil shortage protection
LED5 display (KW, Volt, AMP, Hz, hour counter)
fuse with 30 mA for personal safety
1 x 230 V 16 A socket
1 x 230 V 32 A socket
earth protection
With ATS connection
AVR voltage regulator ensures constant voltage, so you can operate sensitive electronics
The 32 A socket allows you to draw the full power from one socket. Therefore this unit is well suited for larger current collectors or for house fuse protection.
Technical data:
frequency 50 Hz
voltage 230V
nominal power 6.0 kW
Maximum power 6.5 kW
Ampere 28 A
Display LED5
tank capacity 14 litres
Independent working time at 50% load 14 hours
Volume 72.6 dB at 7 metres
battery 36 Ah
motor D500E
Power of the engine 12,0 PS
displacement 418 cc
oil capacity 1.65 litres
Generator A6-1S
electric starter, battery included
AVR voltage regulator
speed 3,000 rpm
dimensions 920x520x760 mm
gross weight 167 Kg
The generator is supplied on wheels.
Options / Accessories:
ATS cabinet (Price: 249,00 €) This is used for automatic start in case of power failure.
