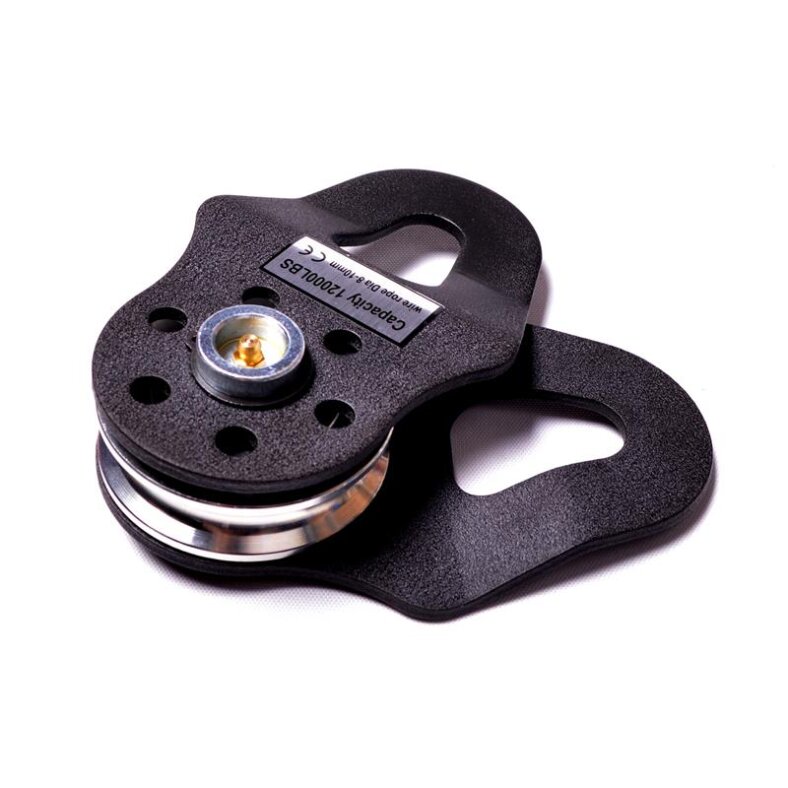

idler pulley, snatch block for pulley block winch 12000LB 5,4t with grease nipple
This pulley is based on the pulley block principle. The pulling force of a winch can thus be doubled, since the pulling forces occurring during towing or pulling are halved, as is the case with a pulley block.
You should use this practical tool from half to 2/3 of the maximum load to protect your winch.
In addition, this pulley has a helpful grease nipple (which supplies the bearing with lubricant).
Versatile application, e.g. in the following areas:
Rescue of vehicles
tow
offroad
vehicle self-recovery
forestry
Article characteristics:
Breaking load 5.4 tons (5,400 kg)
Payload: 2.7 tons (2,700 kg)
Roll diameter 80 mm
Total height of idler pulley: approx. 170 mm
weight: 1,64 kg
Compact and stable construction (also suitable for continuous use)
Suitable for steel cable (cable diameter: 8-10 mm)
weatherproof black special lacquering
precise and gentle rope guidance
Doubles the tractive force of your cable winch
easy operation/ installation
Already assembled
with grease nipple
Do not take any risks and rely on quality from the specialist for winches and winch accessories.
Tip from the expert: When deflecting via pulleys, the radius of the pulleys should not be smaller than twice the rope diameter!
Shipping weight: | 2,00 Kg |
Product weight: | 1,64 Kg |
