Warrior electric winch Spartan 6000lb 2.7t 12v plastic rope

Warrior electric winch Spartan 6000lb 2.7t 12v plastic rope

SKU: 60SPA12
GTIN: 5060423981039
Category: Winch Configurator

486,99 €

incl. 19% VAT , plus

Old price: 549,99 €

Manufacturers recommended retail price: 549,99 €

(Save 11.45%, i.e. 63,00 €)

Available immediately
Delivery time: 15 - 18 Workdays (DE - int. shipments may differ)

piece

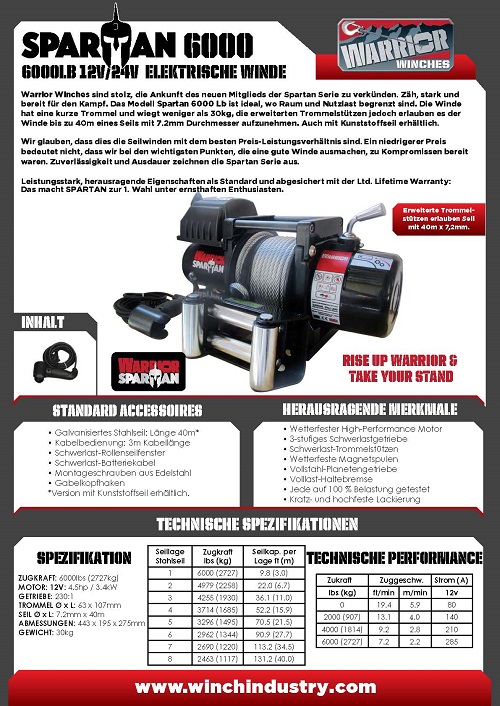

Warrior Spartan 6000 12v Electric Winch
Plastic rope

Warrior Winches are proud to announce the arrival of the new member of the Spartan series.

Tough, strong and ready for battle The Model Spartan 6000 Lb is ideal where space and payload are limited. The winch has a short drum and weighs less than 30kg, however the extended drum supports allow the winch to take up to 40m of 7.2mm diameter rope. also available with synthetic rope.
We believe that these are the winches with the best price/quality ratio.

A lower price does not mean that we were willing to compromise on the most important points that make a good winch. Reliability and endurance are the hallmarks of the Spartan series.powerful, outstanding features as standard and backed by the Ltd. lifetime Warranty: that's what makes SPaRTaN the 1st choice among serious enthusiasts.

Standard Accessories:

Plastic rope: Length 30m
Cable control: 3m cable length
aluminum cable window
Heavy duty battery cable, cable cross section: 20 mm²
Mounting screws: Stainless steel
Clevis hook
Weatherproof high-performance motor
Heavy duty planetary gearbox: enables electric retraction and extension + freewheel for manual cable extension
Heavy duty drum supports
Weatherproof solenoids
All-steel planetary gearbox
Full load holding brake
Each tested to 100% load
Scratch and high-strength paint finish
Important: WITHOUT Mounting plate!

Technical specifications:

Pulling force: 6.000 lbs (2,727 kg)
Motor: 12v: 4.5 hp / 3.4 kw
Gear ratio: 230:1
Drum ø x L: 63 x 107 mm
Rope ø x L: 7.0 mm x 30 m
dimensions: 443 x 195 x 275 mm
Weight: 30 kg

Pulling speeds and power consumption:

Rope layer	Pulling force
	lbs / kg

1	6000 / 2727
2	4979 / 2258
3 4 5 6 7 8	4255 / 1930 3714 / 1685 3296 / 1495 2962 / 1344 2690 / 1220 2463 / 1117


Tractive force	Traction speed		Power consumption ( a )
lbs / kg	ft / min	m / min	12 V

0	19,4	5,9	80
2000 / 907	13,1	3,9	140
4000 / 1814	9,2	2,8	210
6000 / 2727	7,2	2,2	285

IMPORTANT:
We expressly point out that this winch is designed exclusively for off-road and private use.
It is a pure pulling winch for pulling rolling loads horizontal planes.
Any use outside the described areas will void any warranty!
You can find our commercial pulling winches here: Commercial winches.

Voltage:	12 V
Cable/Rope Type:	Synthetic Rope
Price:	400 - 699 EUR
Brand:	Warrior®
Application:	Private Off-Road Boat Forestry/Hunt
Shipping weight:	32,00 kg
Item weight:	30,00 kg
